Ag/AgCl Reference Electrode, Alkaline, Neutral

Product Description
Shipping & Delivery

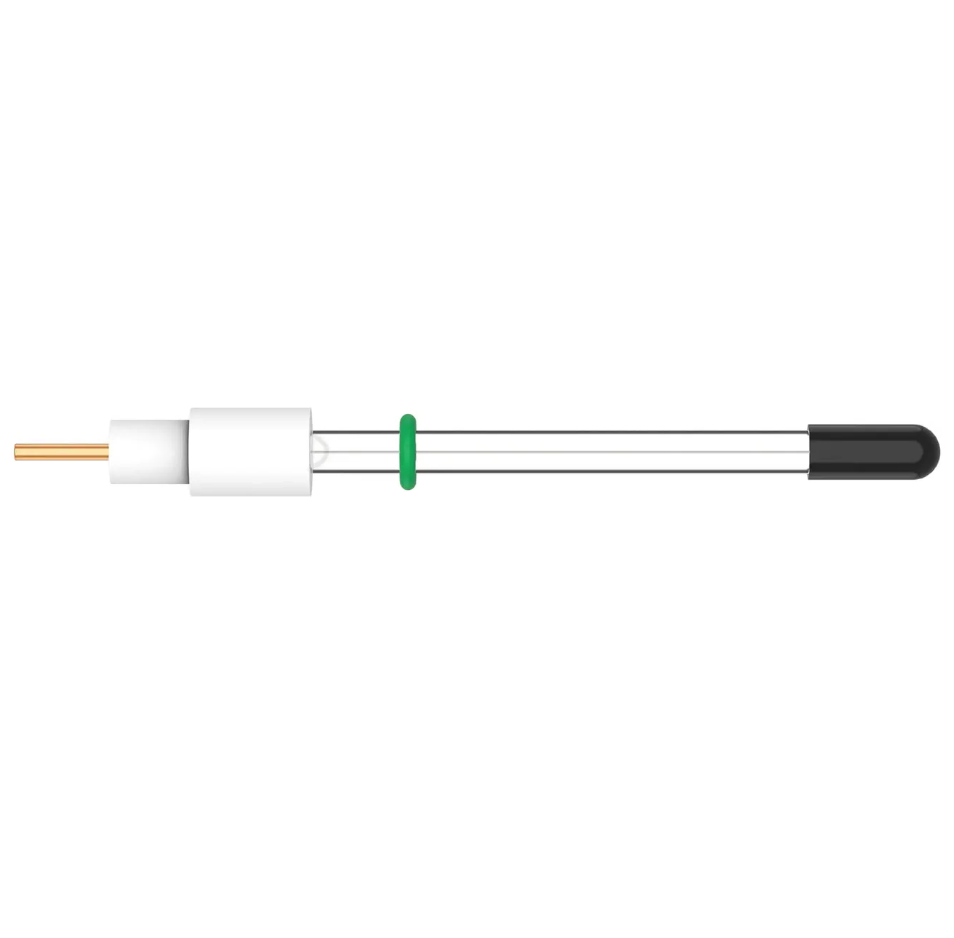

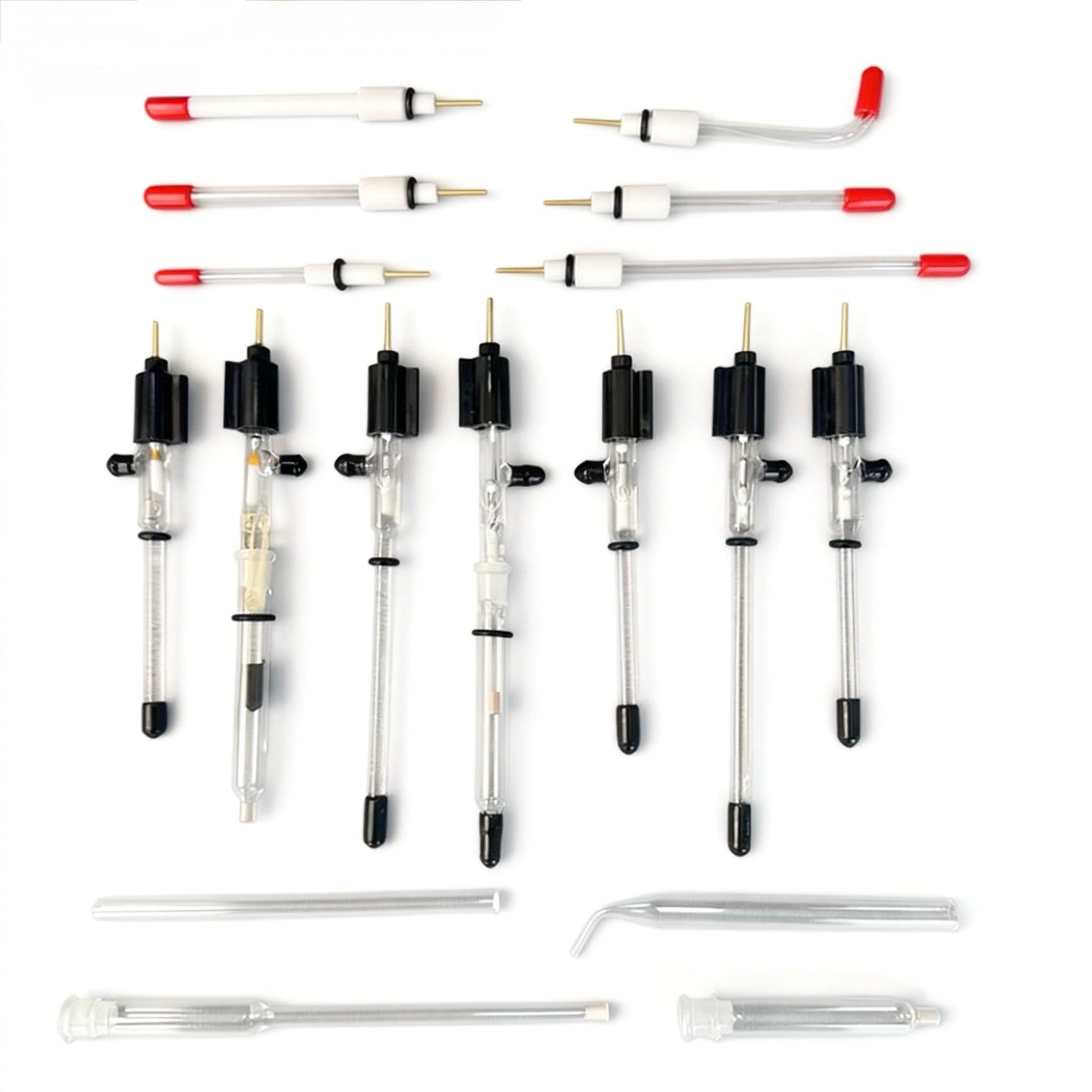

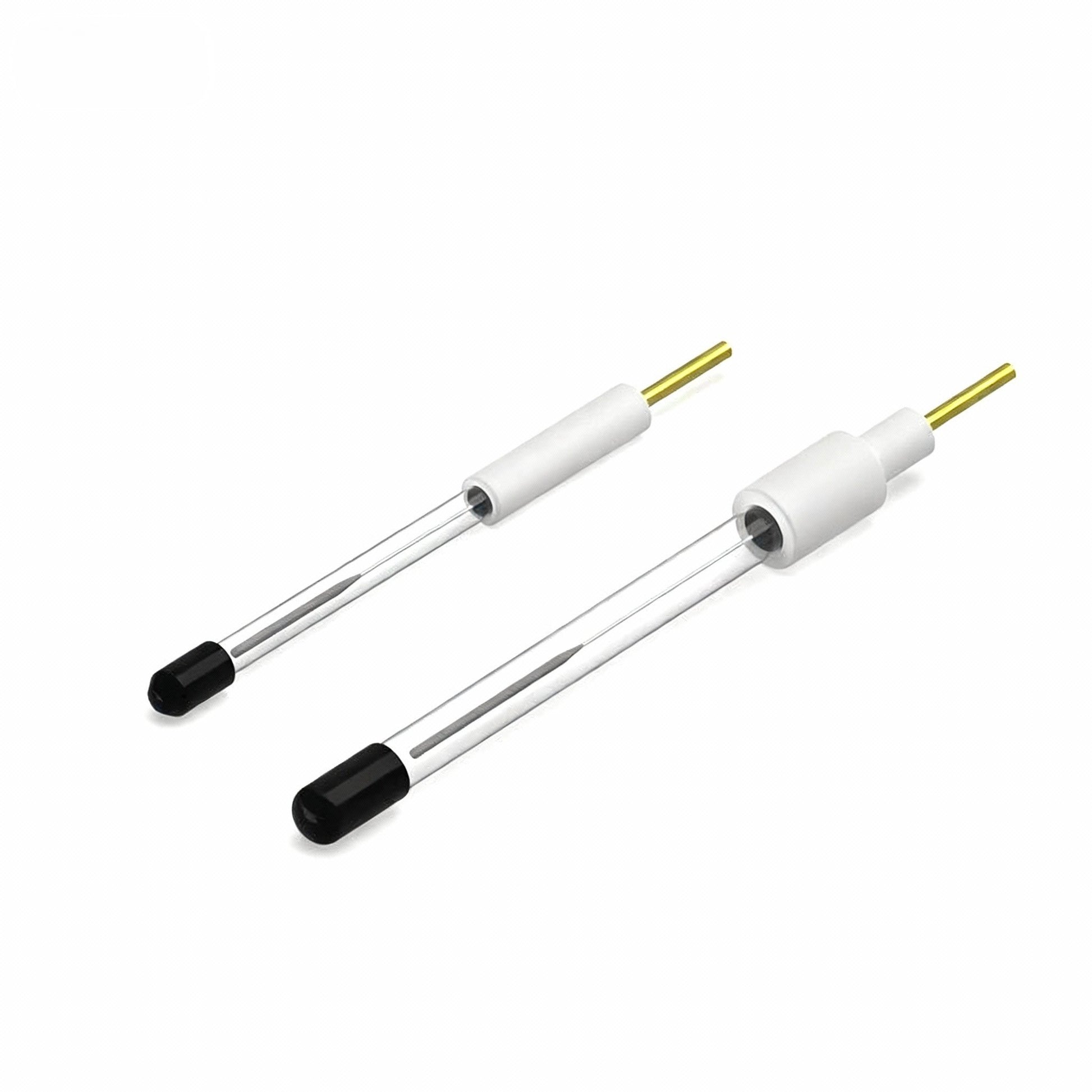

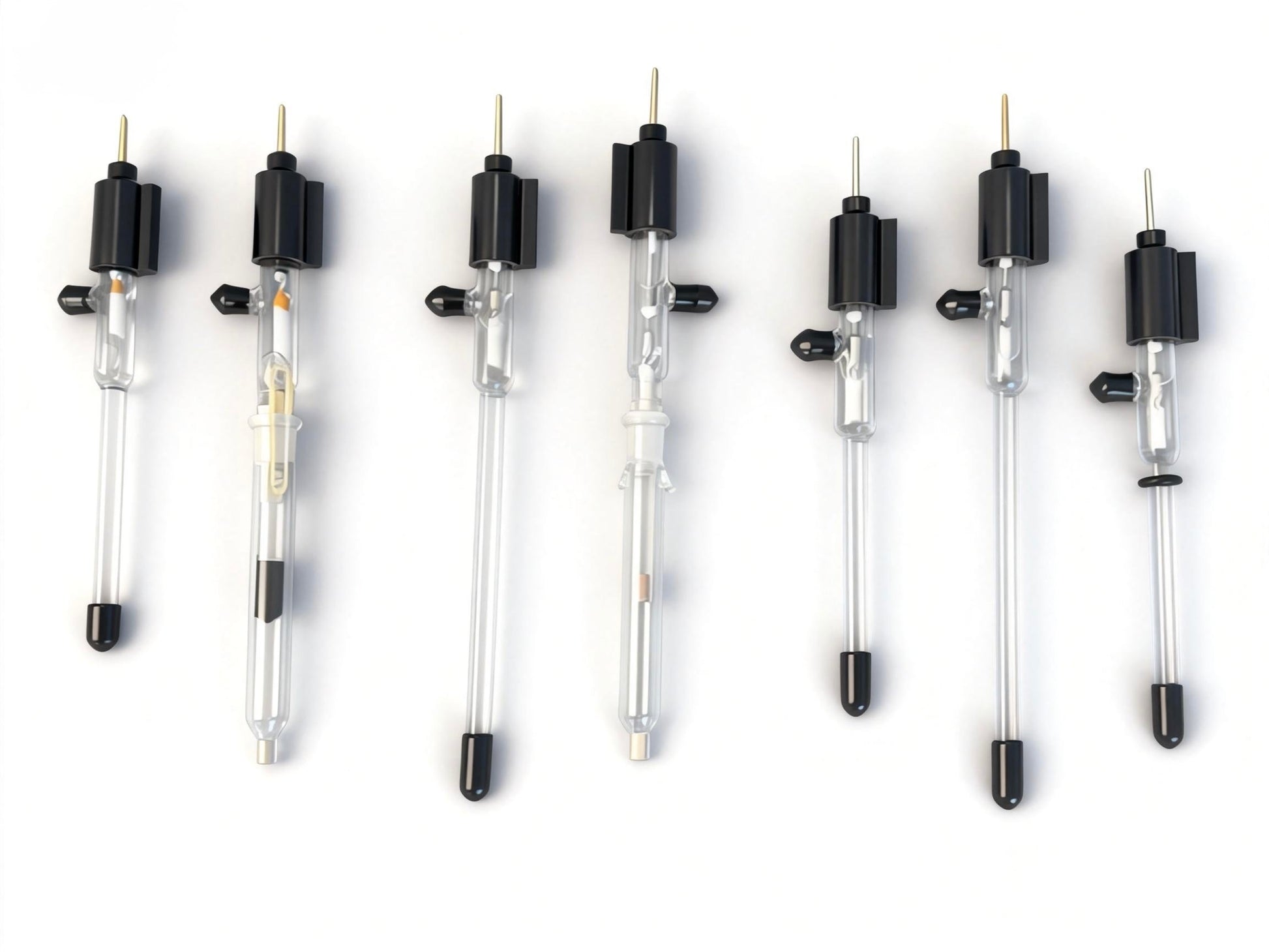

FrankLab Ag/AgCl Reference Electrode

Stable, Reliable, and Laboratory-Grade Reference for Aqueous Electrochemistry
The FrankLab Ag/AgCl Reference Electrode is engineered to deliver a stable and reproducible reference potential for high-precision electrochemical measurements. Pre-filled with saturated KCl and built with chemically resistant materials, it is widely used across aqueous CV, LSV, EIS, corrosion studies, electrocatalysis, and energy-conversion research.
Designed for academic and industrial labs demanding accuracy, reliability, and long-term stability.

Key Features

• Highly Stable Reference Potential

Ag/AgCl / saturated KCl provides a well-defined and widely adopted reference potential:
•+0.197 V vs. NHE at 25 °C
•Excellent long-term stability under proper maintenance

• Ready-to-Use, Pre-Filled Design

Each electrode is filled with saturated KCl to ensure:
•Fast equilibration
•Low drift
•Repeatable electrochemical response

• Chemically Resistant Construction

•Glass body ensures excellent optical and chemical stability
•PTFE cap provides strong corrosion resistance
•Ceramic or PTFE porous junction offers low electrolyte leakage and high stability

• Low Junction Potential & Leakage

Optimized junction structure ensures:
•Smooth ionic contact
•Low noise in CV/LSV/EIS
•Minimal contamination of the working electrolyte

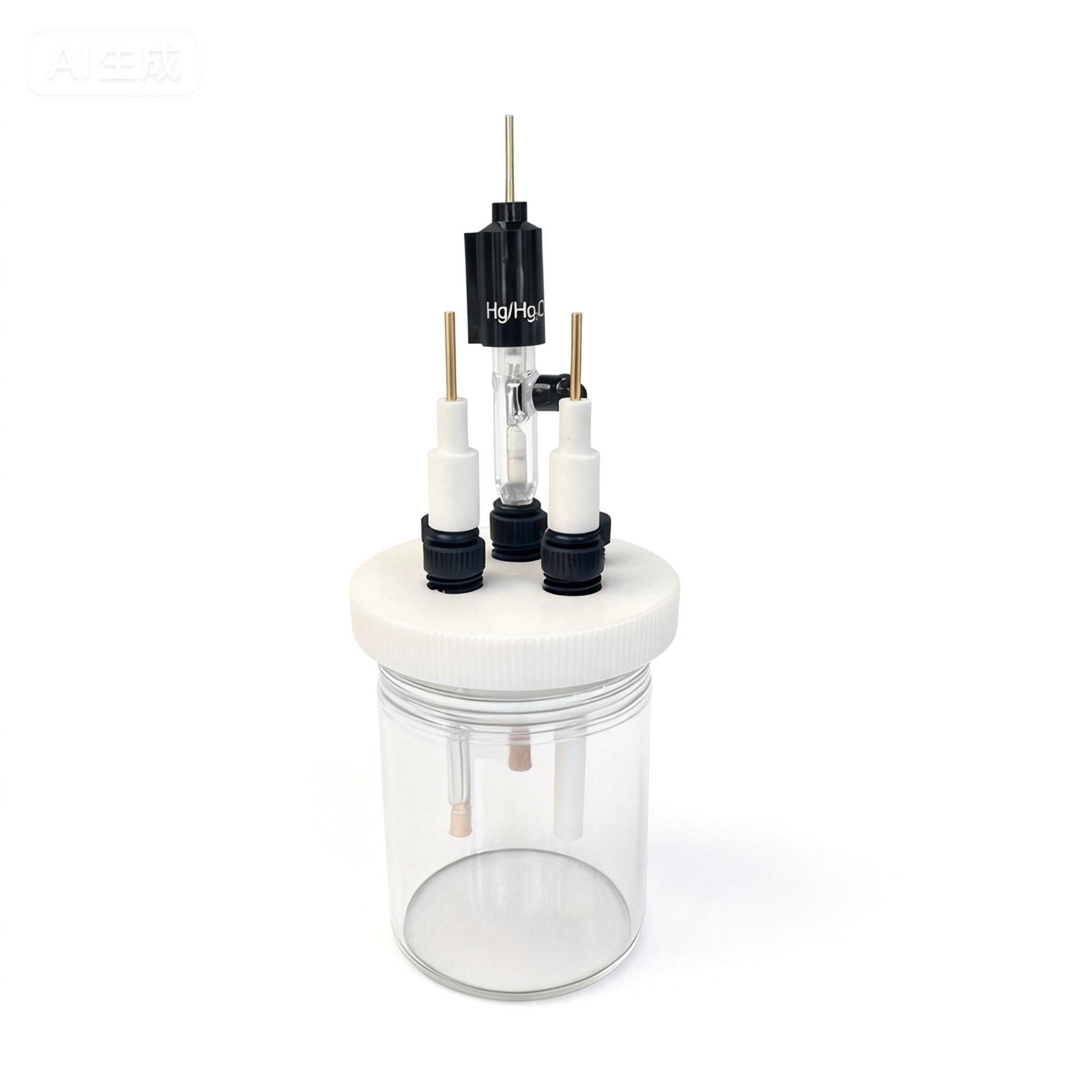

• Compatible with Most Electrolytic Cells

Fits standard electrode holders and is compatible with:
•Borosilicate glass cells
•PTFE cells
•Quartz photoelectrochemical cells
•H-type two-chamber cells
•Flow cells (with salt bridge)

• Easy Maintenance & Long Service Life

•Refillable internal solution
•Replaceable KCl electrolyte
•Designed for months to years of laboratory use

Technical Specifications

Parameter Value / Options
Electrode Type Ag/AgCl reference electrode
Internal Electrolyte Saturated KCl (~3–3.5 M)
Standard Potential +0.197 V vs. NHE (25°C)
Body Material Glass
Cap Material PTFE
Junction Type Porous ceramic or PTFE

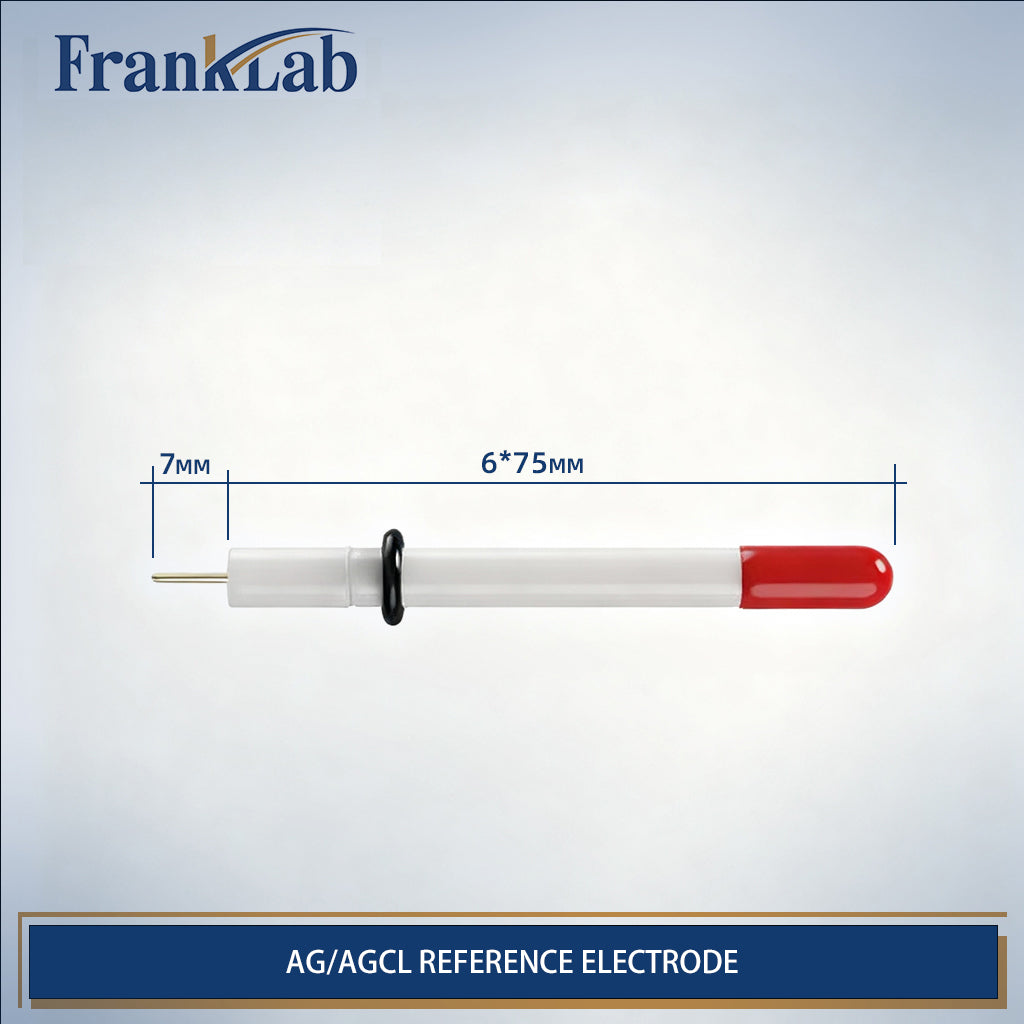

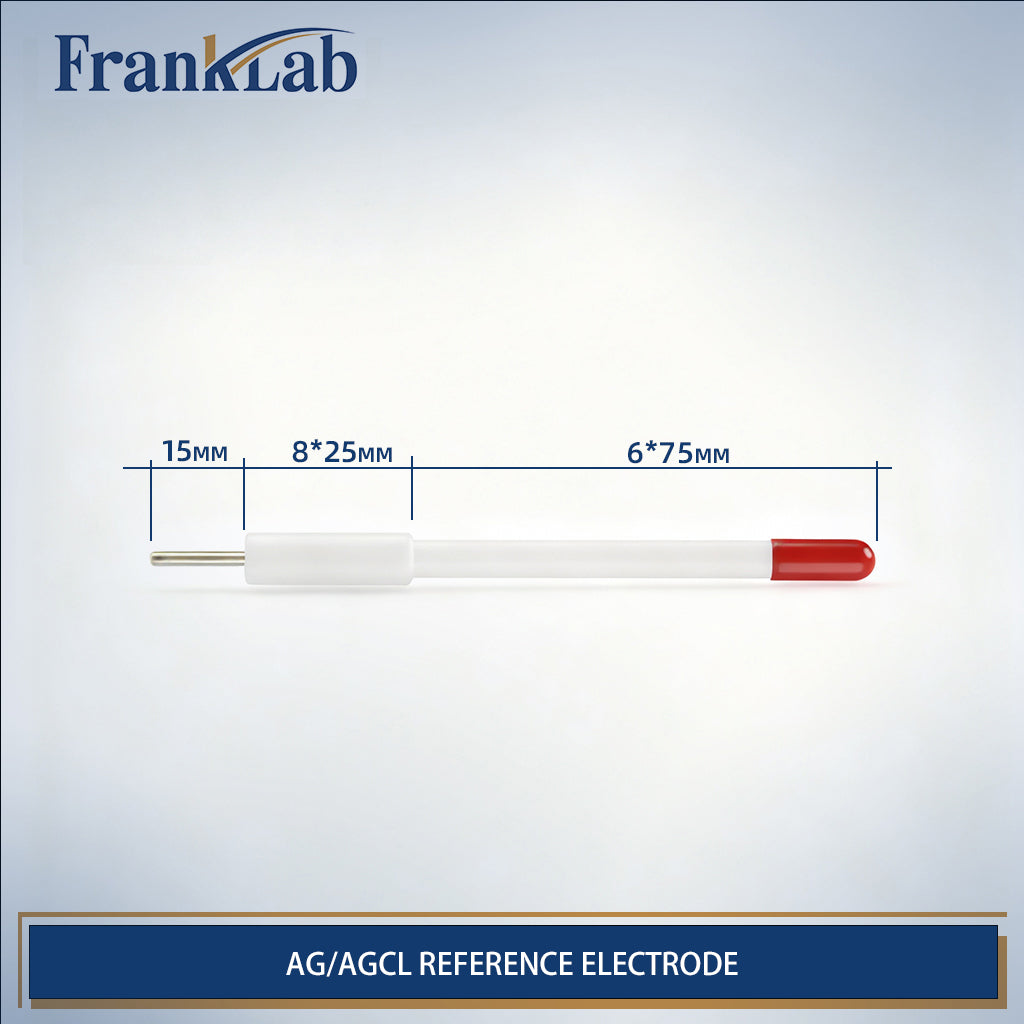

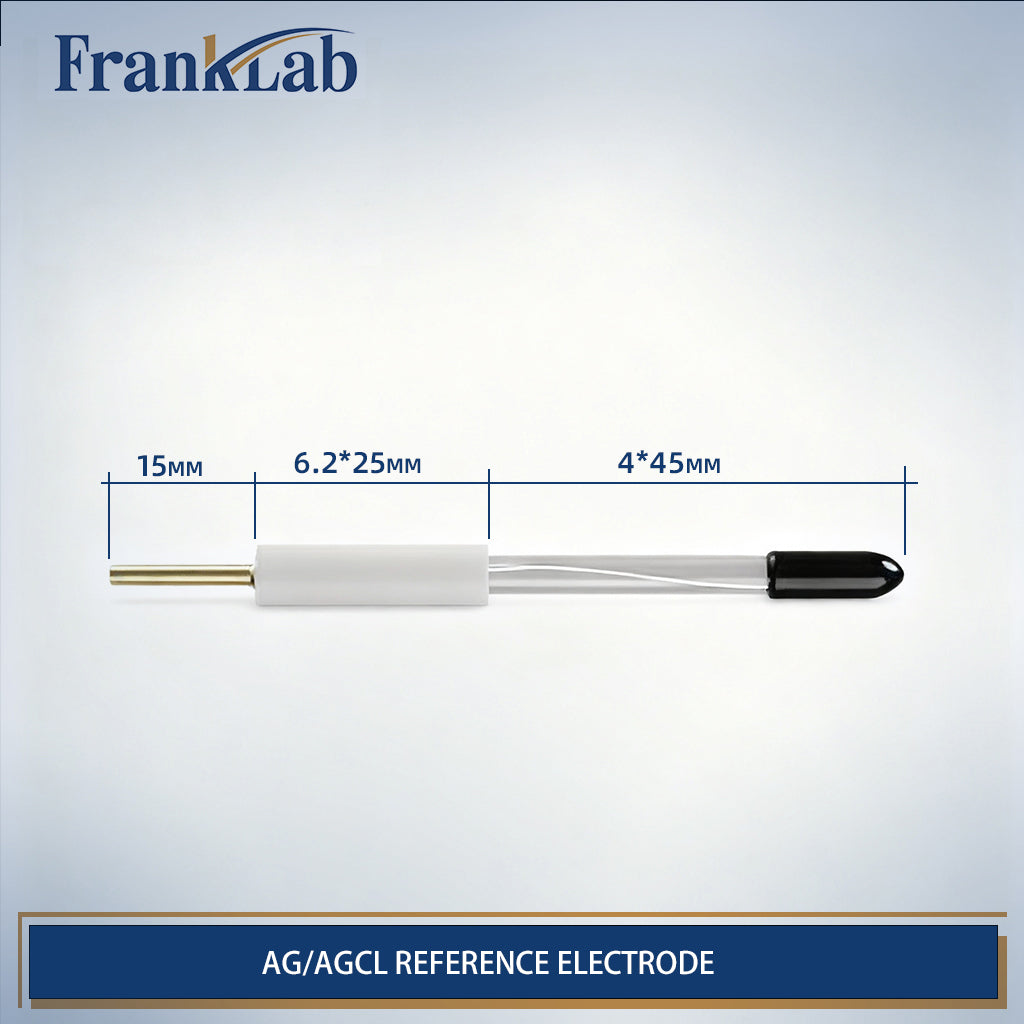

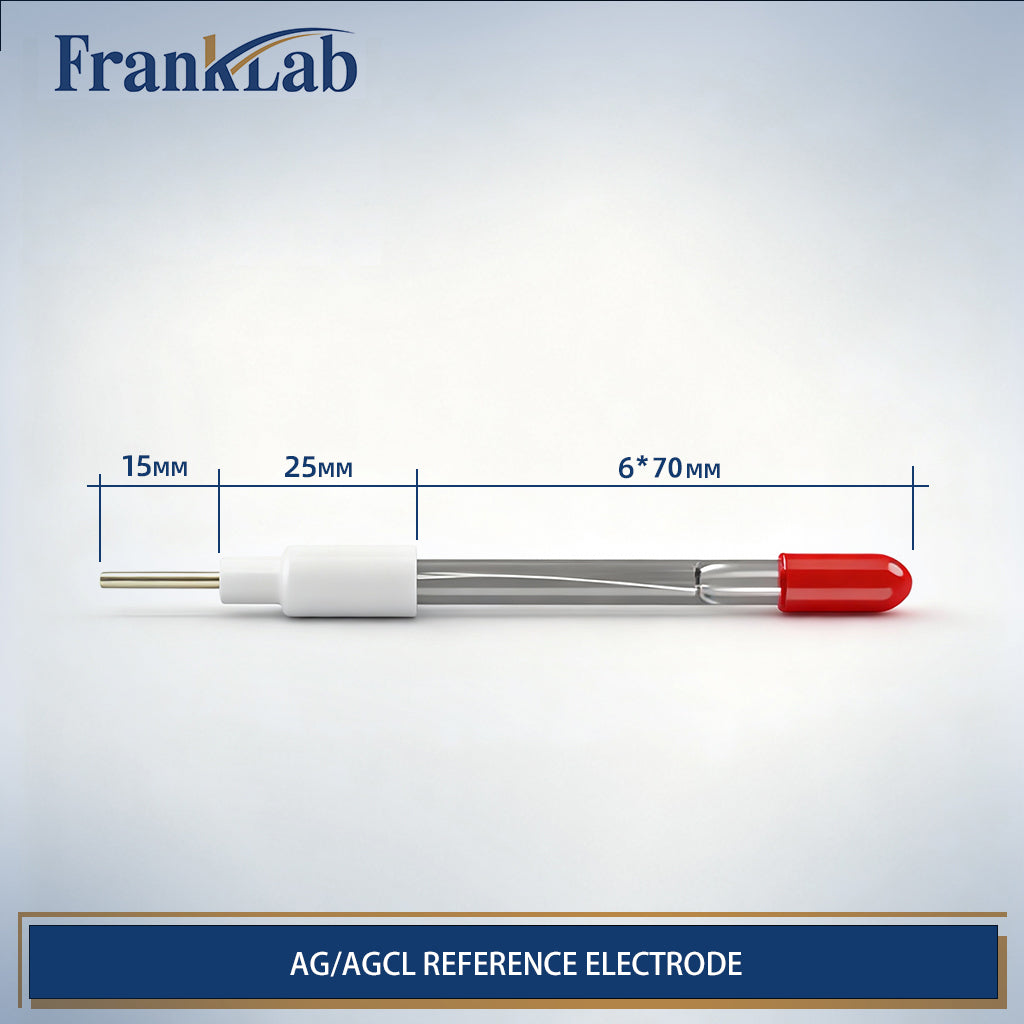

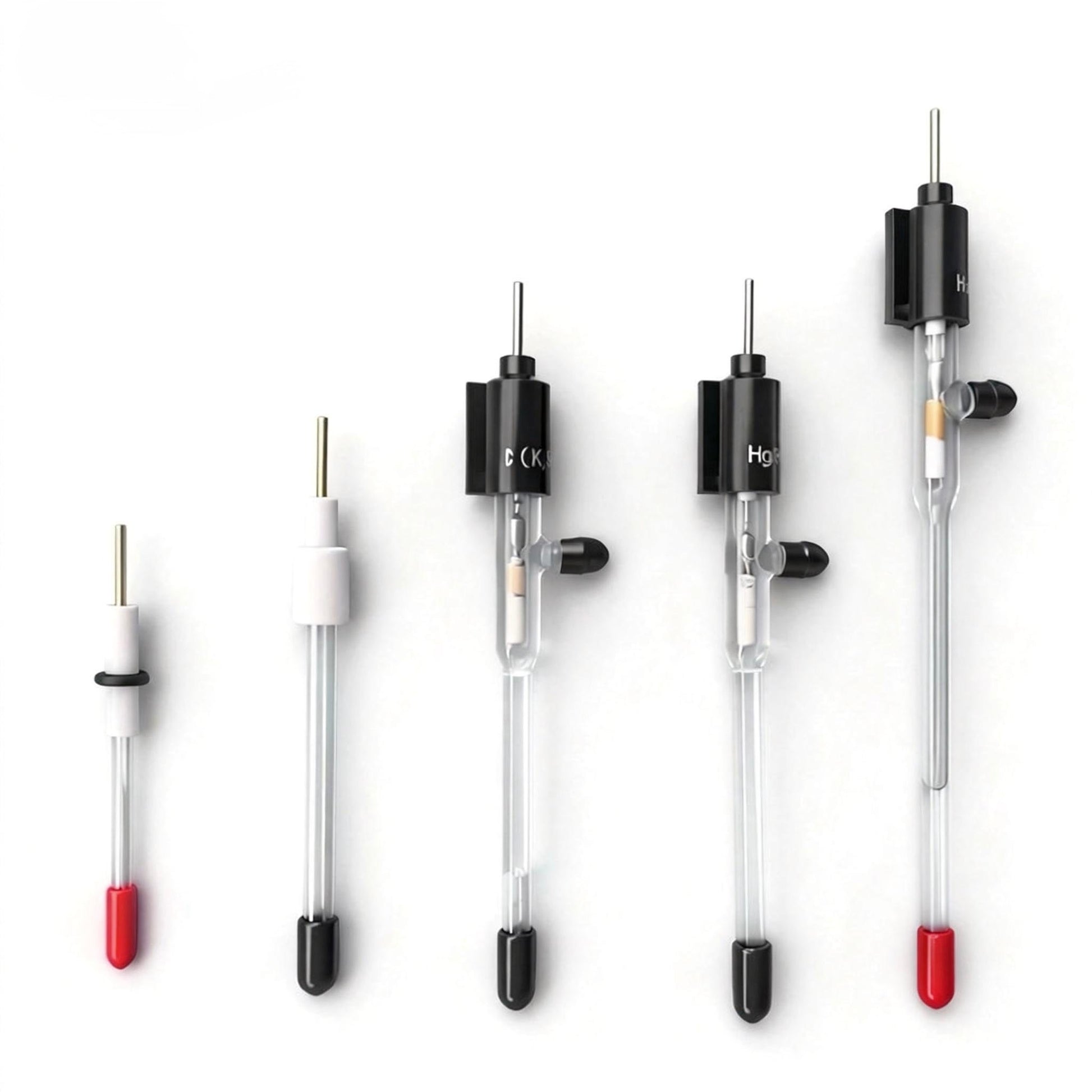

Length 65–100 mm (model dependent)
Diameter ~6–9 mm
Temperature Range RT to 60°C
Storage Solution 3 M KCl
Lifetime 6–12 months under proper use

Typical Applications

•Cyclic voltammetry (CV) and linear sweep voltammetry (LSV)
•Electrochemical impedance spectroscopy (EIS)
•Electrocatalyst testing (HER/OER/ORR/CO₂RR in aqueous media)
•Corrosion studies on metals and alloys
•pH-dependent kinetic studies
•Education and teaching laboratories

Usage Notes

• Always keep the junction immersed in KCl solution when stored.

Dry junctions lead to unstable potential and slow response.

•Avoid use in strong oxidizers

(e.g., concentrated HNO₃) to prevent degradation.

• For non-aqueous systems

Use through a salt bridge (e.g., glass capillary with KCl-saturated agar) to avoid contamination.

• If potential drifts

Replace internal KCl and soak the electrode in fresh KCl for several hours.

Custom lengths, junction types, and salt-bridge designs available upon request. Send us your cell dimensions or experiment details for recommendations.
