Rotating Disk Electrode /RDE, Glassy Carbon Disk, Female Thread ,Metrohm-Compatible
Rotating Disk Electrode (RDE) — Glassy Carbon Disk
Female Thread · Metrohm-Compatible · PTFE Body
Product Overview
The FrankLab Metrohm-Compatible Rotating Disk Electrode (RDE) is a precision-machined hydrodynamic working electrode designed for high-accuracy electrochemical measurements, including kinetic studies, diffusion-controlled reactions, catalyst evaluation, and mechanistic analysis.
This RDE features a Ø5 mm Glassy Carbon (GC) disk, embedded in a chemically resistant PTFE body, with a female-thread interface fully compatible with Metrohm rotator systems.
It provides exceptional stability, reproducibility, and low-background performance, making it suitable for demanding research environments in electrocatalysis, corrosion analysis, and materials characterization.

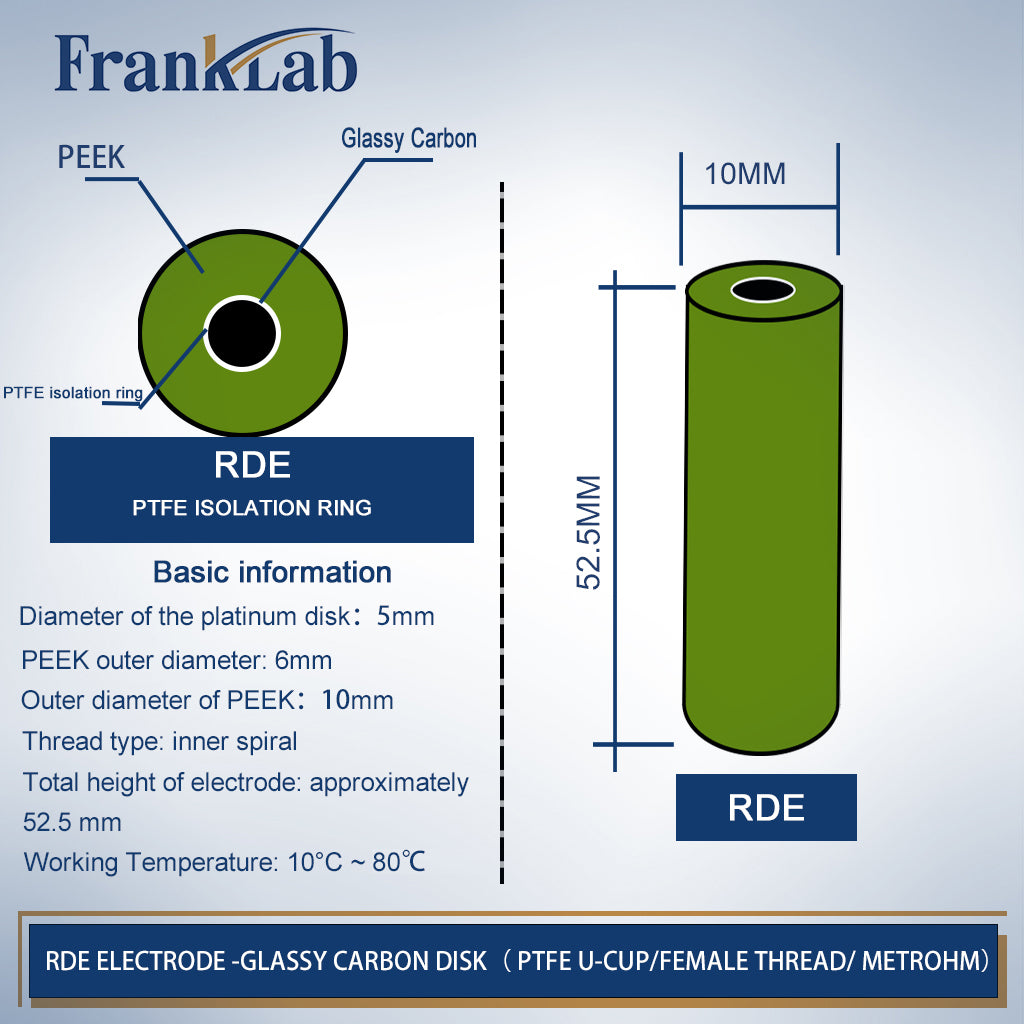

Technical Specifications
|
Parameter |
Value |
|
Disk Material |
Glassy Carbon (GC) |
|
Disk Diameter |
Ø5 mm |
|
Insulator Outer Diameter |
Ø10 mm (PTFE) |
|
Overall Electrode Height |
~52.5 mm |
|
Thread Type |
Female Thread (Metrohm-Compatible) |
|
Working Temperature |
10°C – 25°C |
|
Insulator Material |
PTFE |
|
Terminal Material |
Gold-plated copper (optional custom materials available) |
Key Features
• High-Purity Glassy Carbon Disk
• Wide potential window
• Excellent chemical inertness
• Ideal for ORR, OER, HER, CO₂RR, organic electrochemistry
• Stable background currents for high-precision kinetic analysis
• PTFE Insulation Body
• Resistant to acids, bases, and organic solvents
• Easy to clean
• Ensures proper sealing and electrical isolation
• Metrohm-Compatible Female Thread
• Direct connection to Metrohm RDE shaft
• No adapter required
• Ensures stable rotation with zero wobble
• Precision Hydrodynamic Control
• Uniform disk surface alignment
• Accurate Levich & Koutecky–Levich analysis
• Suitable for mechanistic and quantitative electrochemical research
Applications
• Electrocatalysis Research
ORR, CO₂RR, HER/OER studies
• Kinetic & Mechanistic Analysis
Levich/K–L plots, reaction order evaluation
• Materials & Surface Chemistry
Carbon material studies, coatings, corrosion
• Analytical Chemistry
Detection of redox species, diffusion coefficients
Advantages of FrankLab RDE
- Ultra-smooth GC disk surface for low-noise measurements
- High machining precision ensures reproducibility across experiments
- Specialized Metrohm compatibility eliminates setup errors
- Durable PTFE body suitable for routine and long-term use
- Customization available for disk size, body material, thread style, and more
Customization Options
FrankLab supports OEM/ODM production:
Disk Materials
• Glassy Carbon / Platinum / Gold / Copper / Nickel / Customized
Disk Diameter Options
3 mm / 5 mm / 6 mm / Custom
Body Materials
PTFE (standard) / PEEK (high-temperature)
Thread Options
Metrohm female thread / Pine male thread / Metric thread / Custom
Additional Options
• Laser engraving
• Batch coding
• Custom geometries
Custom drawings & quotations available within 24 hours.
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
Why Choose FrankLab?
FrankLab Focused on electrochemical & research materials
•Stable quality for repeatable experiments
•Flexible customization capability
•Trusted by universities, institutes, and industrial R&D labs
