Rotating Disk Electrode/RDE，Glassy Carbon Disk/ Platinum Disk/ Gold Disk， Male Thread-PINE

Rotating Disk Electrode/RDE，Glassy Carbon Disk/ Platinum Disk/ Gold Disk， Male Thread-PINE

Product Description
Shipping & Delivery

Rotating Disk Electrode (RDE) | Hydrodynamic Working Electrode | FrankLab

Precision Disk Electrode for Controlled Mass-Transport Electrochemistry — Glassy Carbon, Platinum, or Gold Disk Material

Product Overview
The FrankLab Rotating Disk Electrode (RDE) is a high-precision working electrode designed for electrochemical studies under controlled hydrodynamic conditions. When paired with an electrochemical rotator, the RDE creates a laminar flow perpendicular to the disk surface, providing stable and reproducible mass-transport control and enabling advanced kinetic and mechanistic analysis.
RDEs are essential tools for:
• Electrocatalysis & reaction kinetics
• Mass transport studies (Levich, Koutecky–Levich analysis)
• Electrode reaction order & diffusion studies
• ORR, CO₂RR, HER/OER screening
• Benchmarking catalyst performance

Key Features
• Precision Disk Materials
Select from high-quality disk materials, each suited to different research needs:

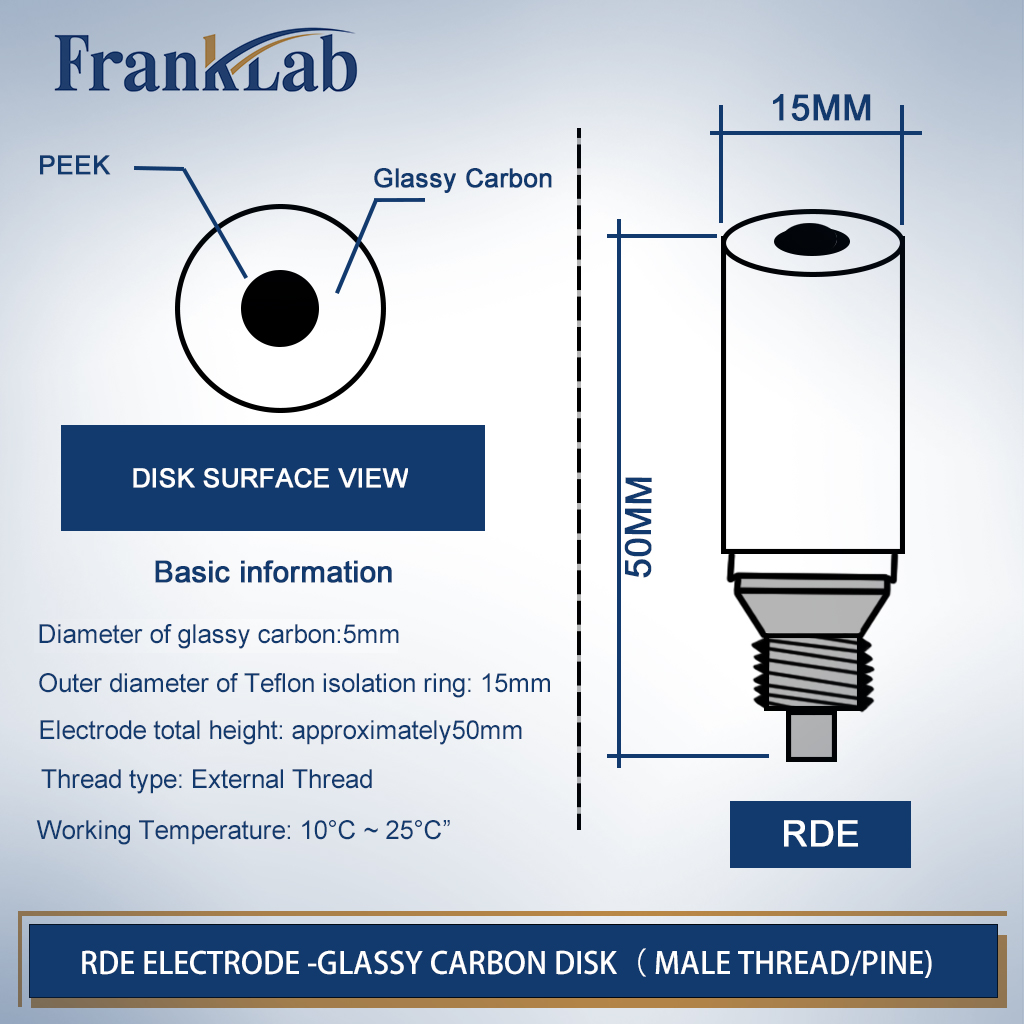

• Glassy Carbon Disk — chemically inert and widely used for general electroanalysis.

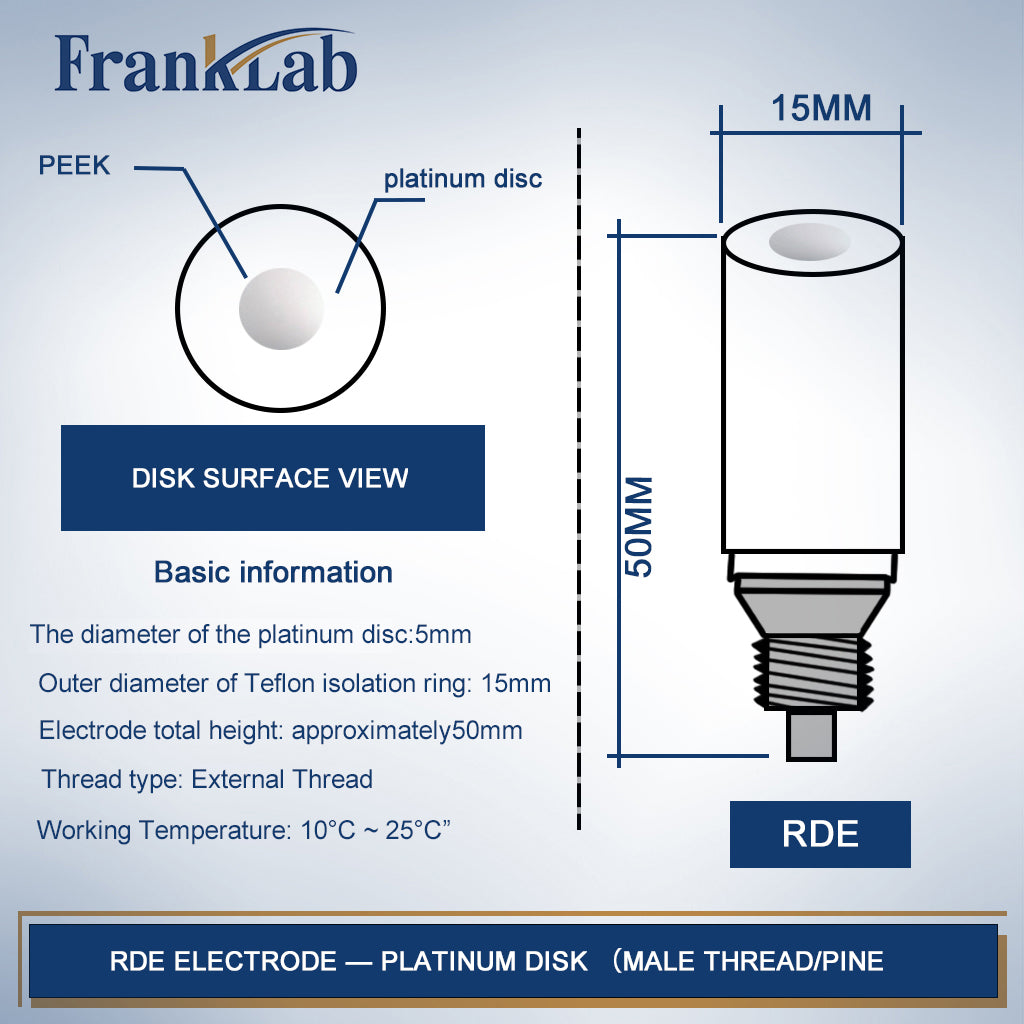

• Platinum (Pt) Disk — excellent catalytic surface for oxidation/reduction mechanisms.

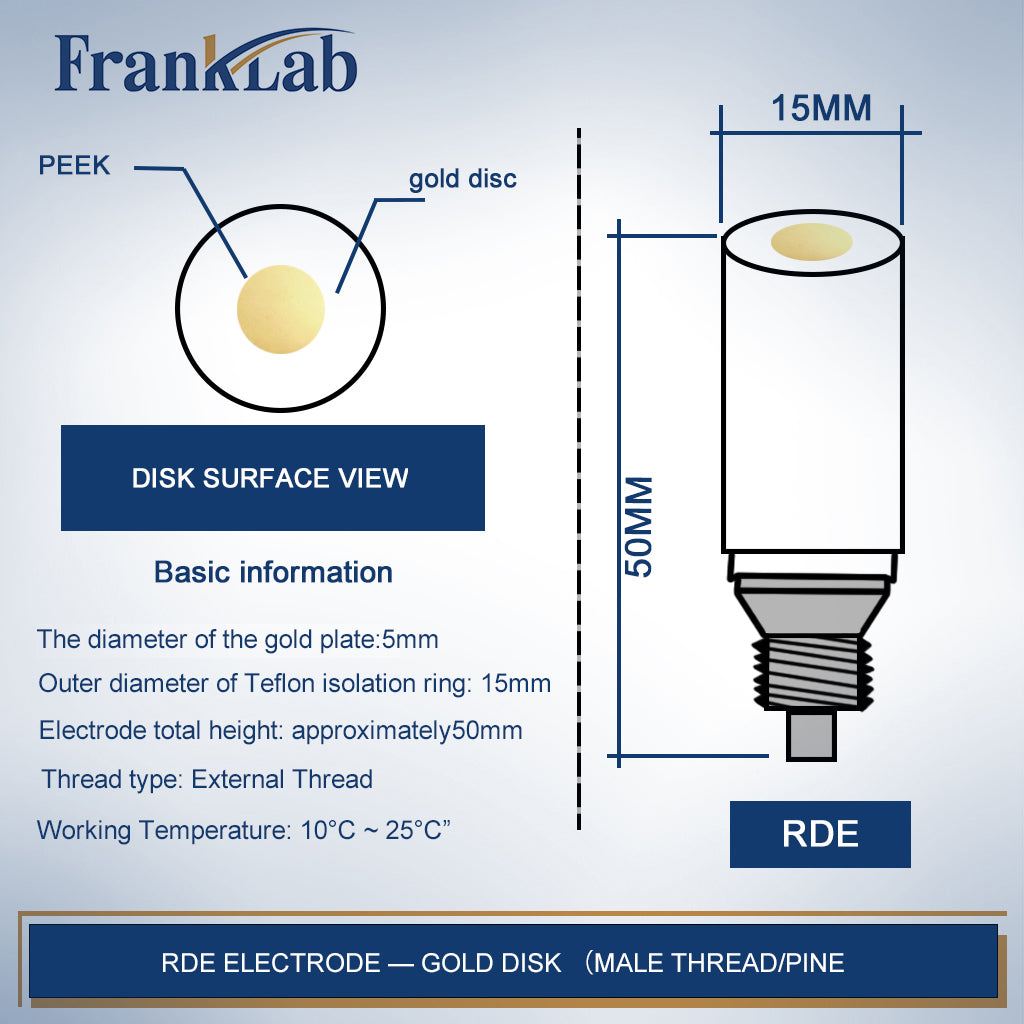

• Gold (Au) Disk — ideal for thiol/self-assembly and highly stable electrochemistry.

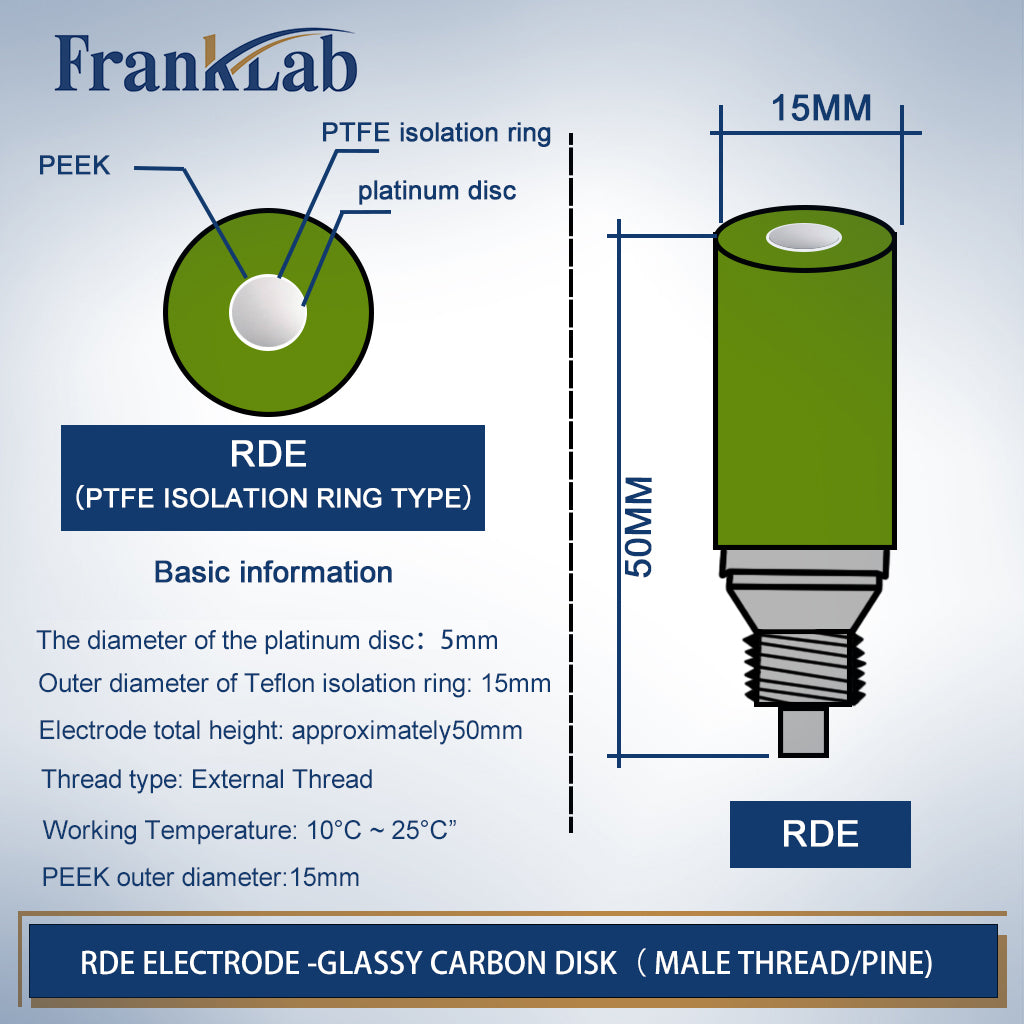

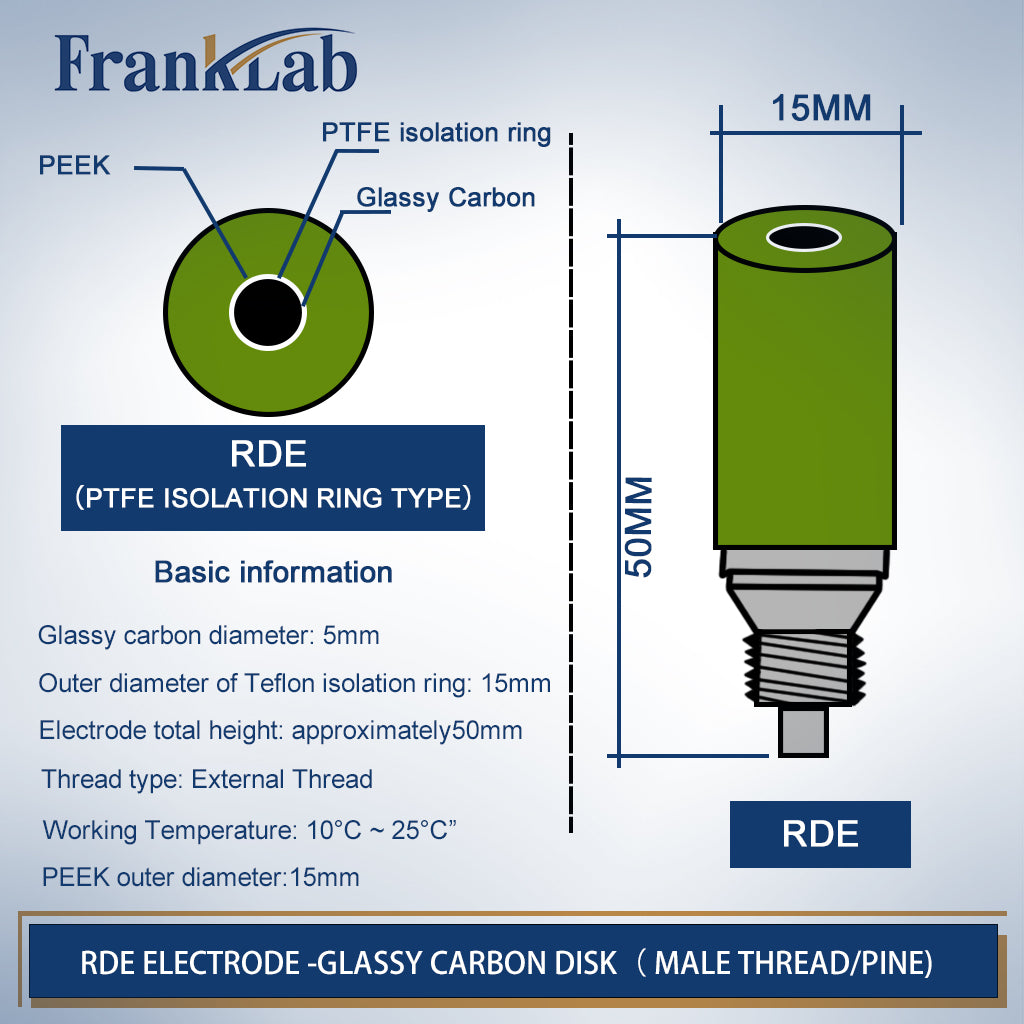

Disk materials are sealed within PTFE or PEEK insulating shrouds for durability.

• Standard Disk Diameter
• 5.00 mm (typical) — widely compatible with Pine RDE systems.
• 6.00 mm (optional) — for larger area studies.

• Insulating Shroud
• PTFE or PEEK rod/shroud materials — chemical resistance suitable for acid, neutral, or alkaline electrolytes.

• Threaded Mounting
• External or male threaded connection for easy RDE shaft attachment and rotation. Material options include PTFE or PEEK encasement depending on model.

Technical Specifications (Typical)
Parameter Detail
Disk Diameter ~5.00 mm standard (6.00 mm optional)
Disk Materials Glassy Carbon, Platinum, Gold
Insulator Body PTFE or PEEK
Contact Type External / threaded (compatible with rotators like WaveVortex, MSR, etc.)
Rotation Compatibility Up to ~3000 RPM (device dependent)
Application Hydrodynamic voltammetry, catalyst screening, kinetics analysis
Recommended Applications
Electrocatalysis & Kinetics
RDE approach provides:
• Controlled mass transport
• Levich & Koutecky–Levich studies
• Benchmarking ORR/HER/OER catalysts
Mechanistic Studies
Uniform diffusion layer enables:
• Quantitative kinetic extraction
• Reaction order determination
Analytical Electrochemistry
Stable currents and low noise benefit sensitive detection.


Customization Available
FrankLab supports full customization of RDE electrodes:
• Disk material: Glassy carbon, Pt, Au (99.99% purity and above)
• Disk diameter: 3 mm, 5 mm, 6 mm or custom
• Insulator: PTFE or PEEK
• Thread style: external/male or compatible with Pine systems
• Shaft connection: gold-plated copper terminal or direct rotator mount
Contact us with your specification for a tailored quote.

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop


Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
