Rotating Disk Electrode /RDE, Glassy Carbon / Platinum / Gold Disk, Female Thread / ALS-Compatible

Rotating Disk Electrode /RDE, Glassy Carbon / Platinum / Gold Disk, Female Thread / ALS-Compatible

Product Description
Shipping & Delivery

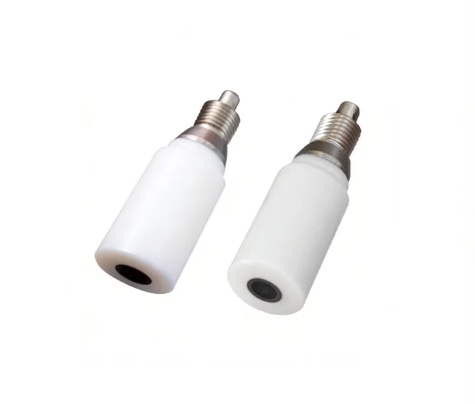

Rotating Disk Electrode (RDE) — Glassy Carbon / Platinum / Gold Disk

(Female Thread / ALS-Compatible)**
High-Precision Hydrodynamic Electrode · PEEK Insulation · Ø5 mm Disk

Product Overview
The FrankLab Rotating Disk Electrode (RDE) is engineered for high-accuracy hydrodynamic electrochemical measurements, including Levich analysis, Koutecký–Levich kinetics, catalyst activity benchmarking, and mechanistic studies.
This model is fully compatible with ALS-type rotators (female-thread design) and uses a robust PEEK body, offering superior chemical resistance, excellent dimensional stability, and a wide operating temperature range (10–80°C).
Available in glassy carbon, platinum, and gold disk configurations, the electrode provides exceptional reproducibility and stable rotation performance across a wide range of electrochemical systems.

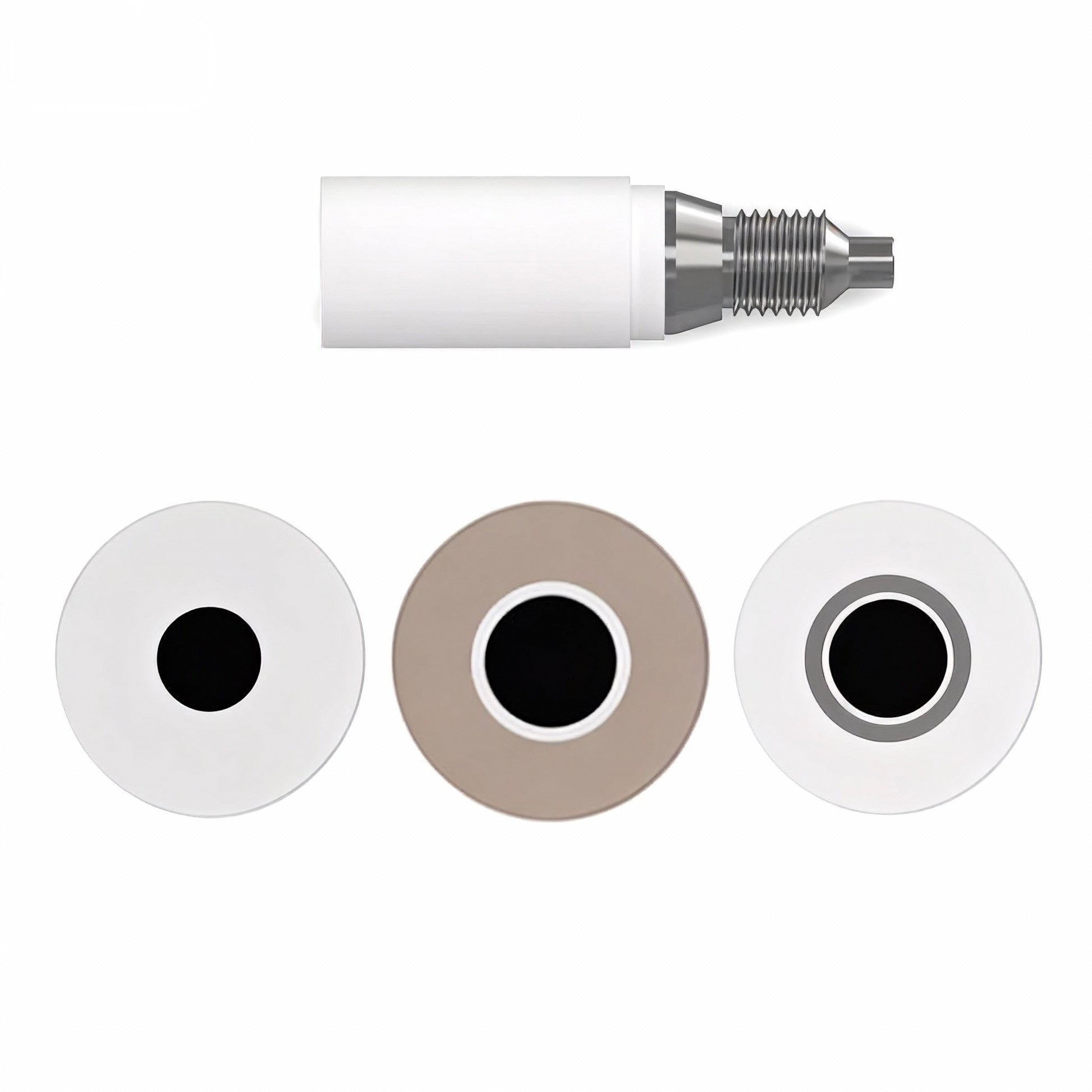

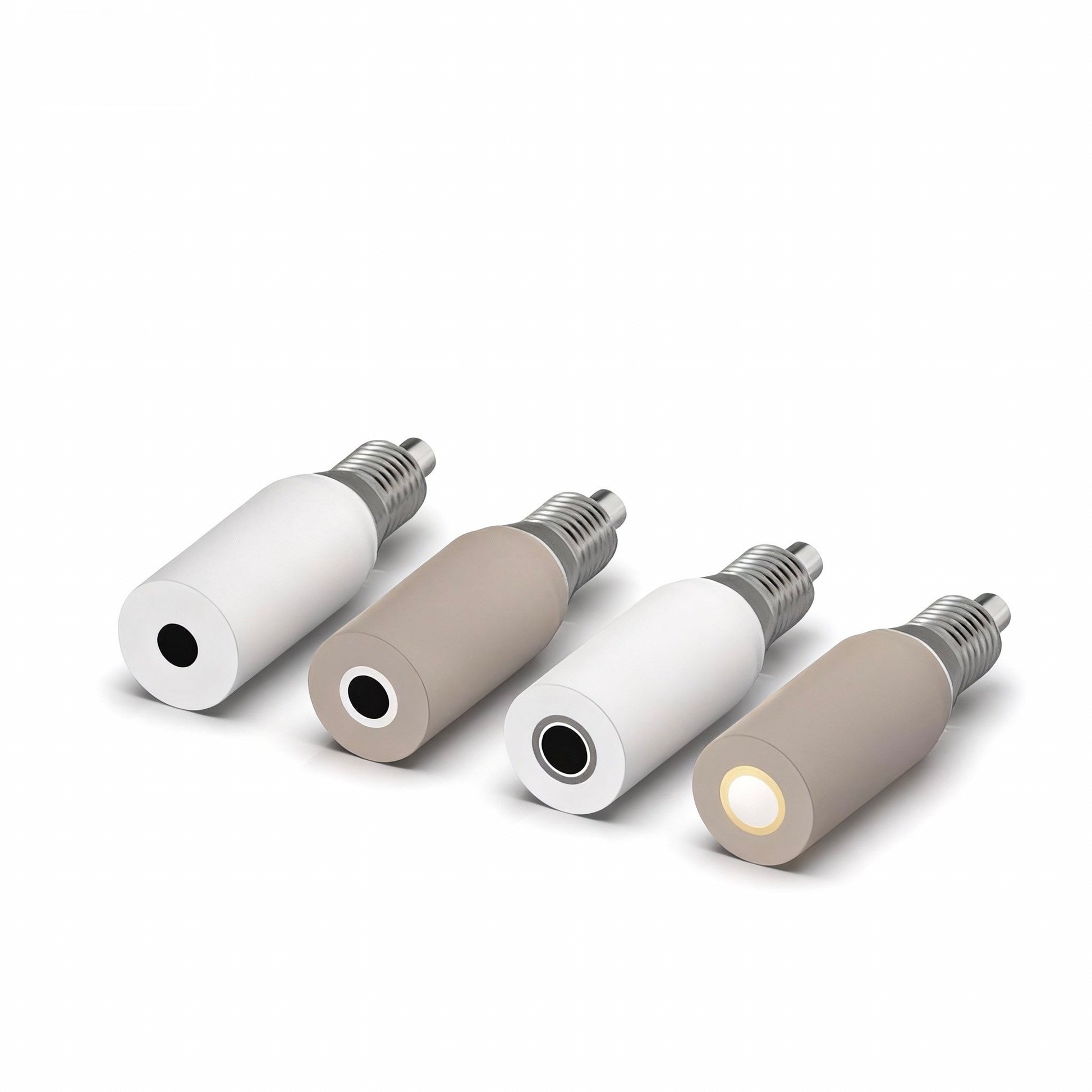

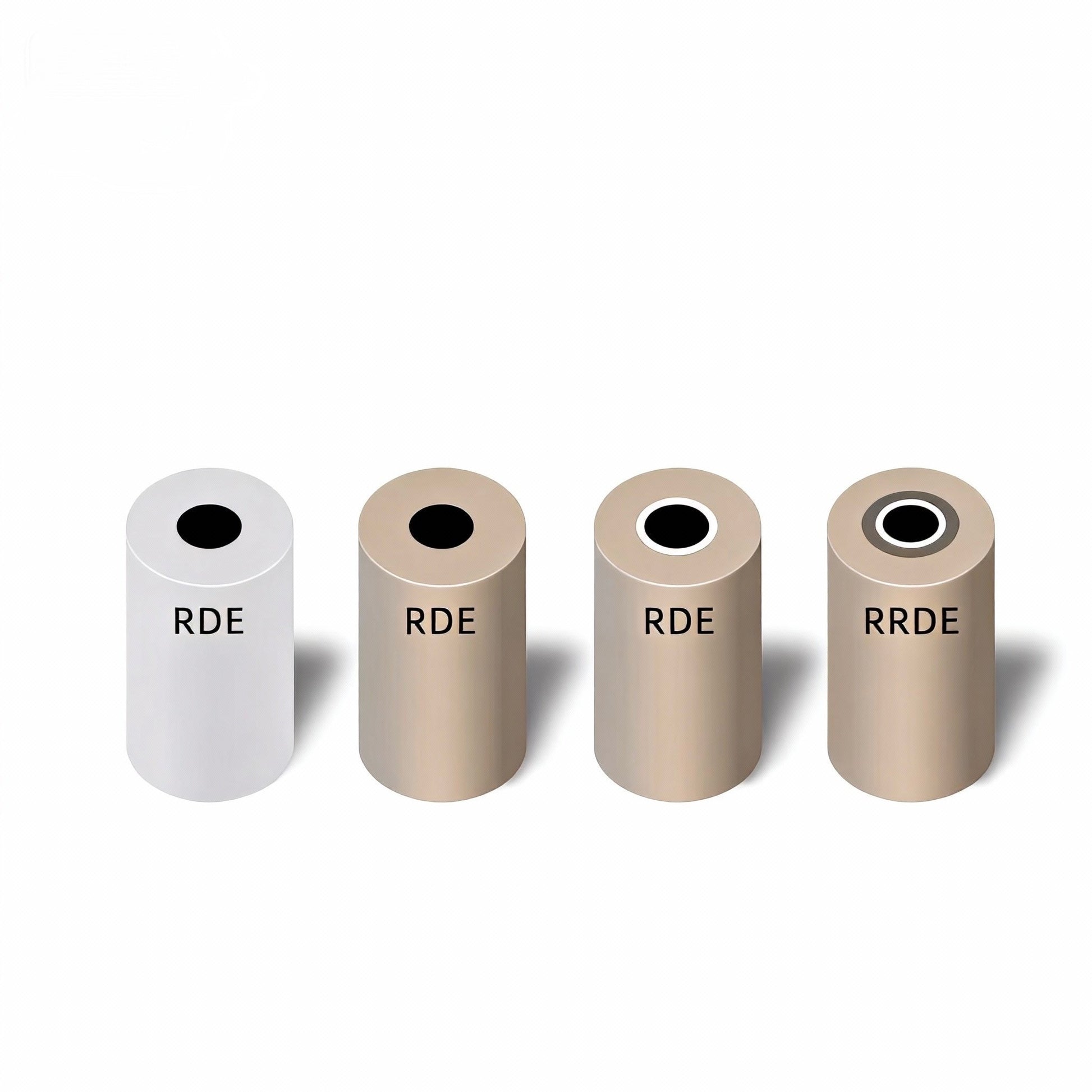

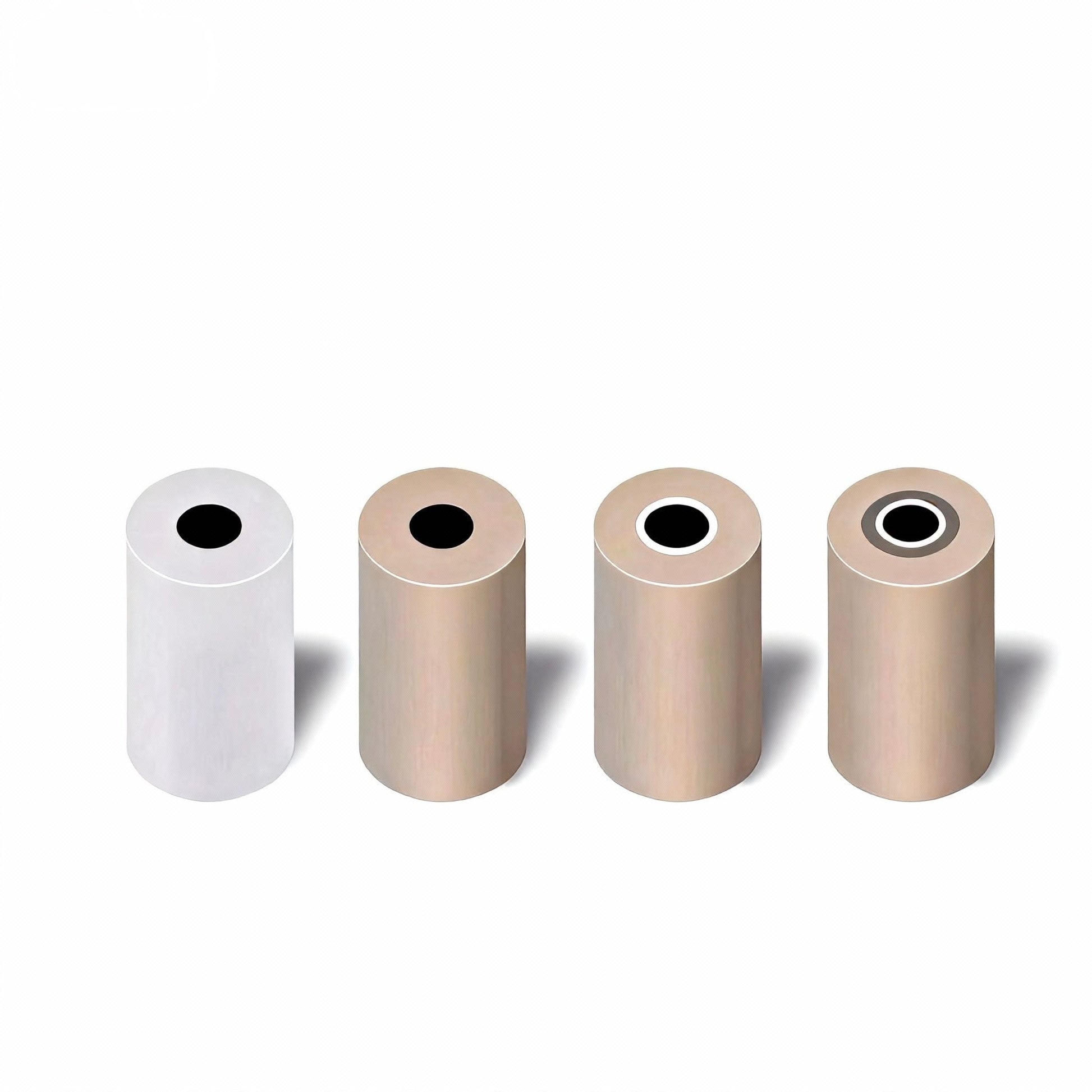

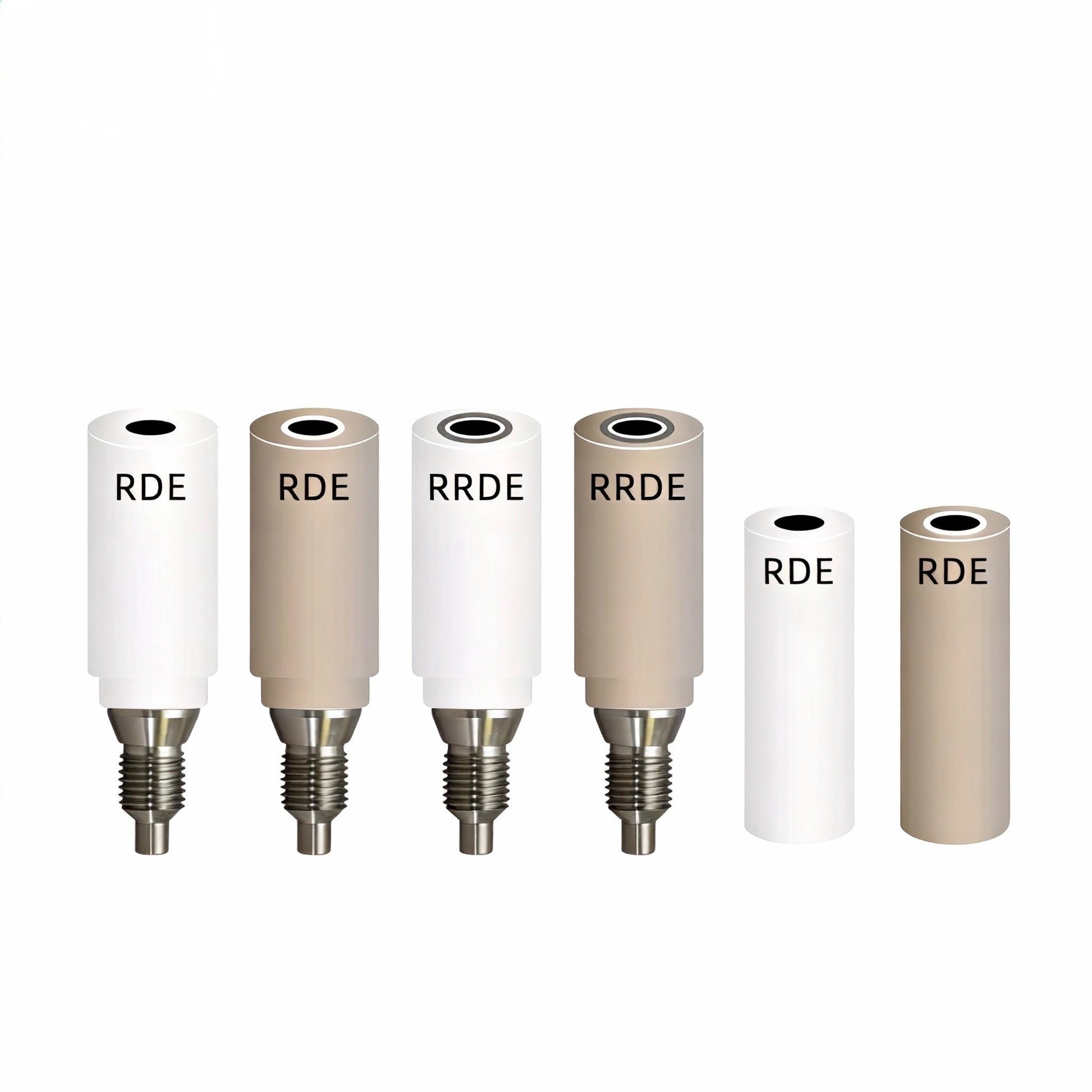

 Available Disk Materials (Based on Your Drawings)

1.Glassy Carbon Disk RDE

•Disk diameter: Ø5 mm
•Chemically inert, wide potential window
•Ideal for ORR, CV baseline, electrocatalysis screening



2. Platinum Disk RDE

•Disk diameter: Ø5 mm
•Excellent catalytic activity
•Suitable for HER/OER, chloride media, acidic/alkaline systems



3. Gold Disk RDE

•Disk diameter: Ø5 mm
•Highly stable noble metal surface
•Ideal for thiol chemistry, SAMs, CO oxidation, halide studies

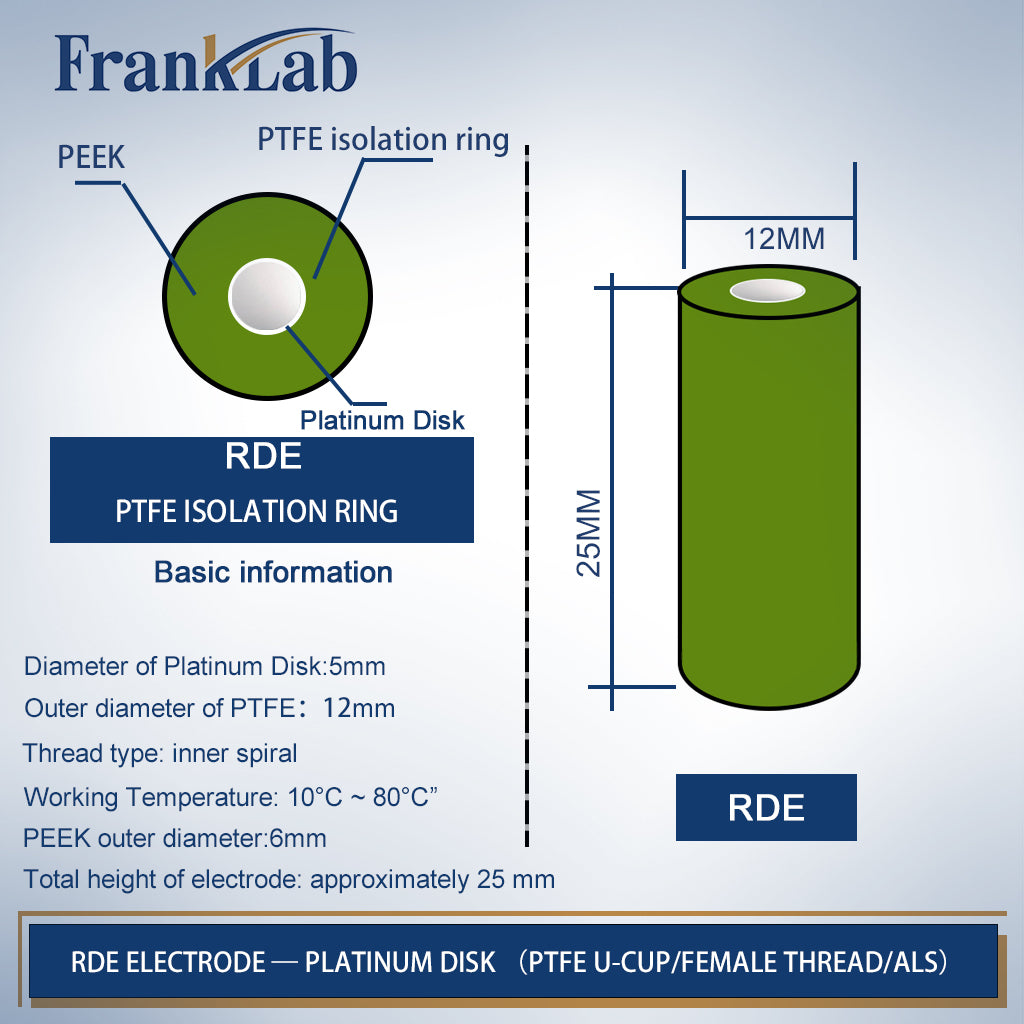

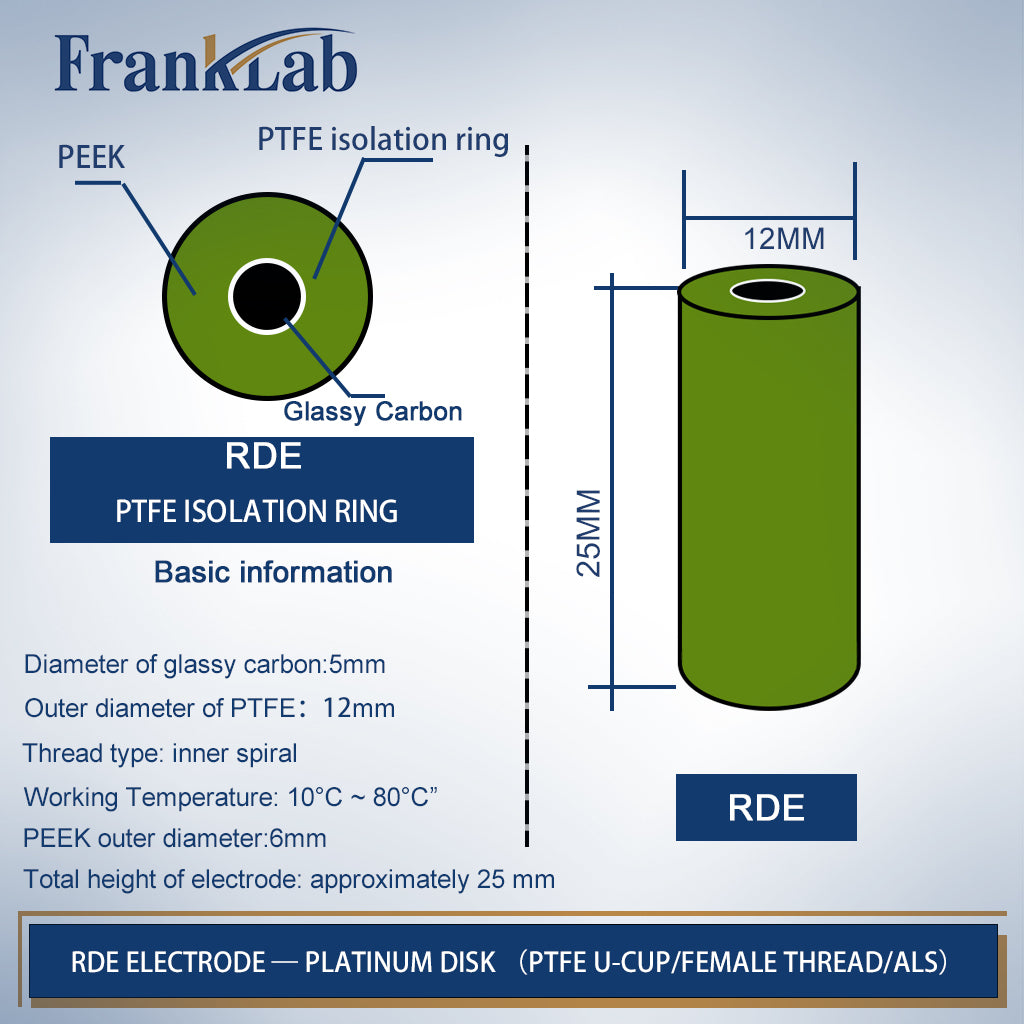

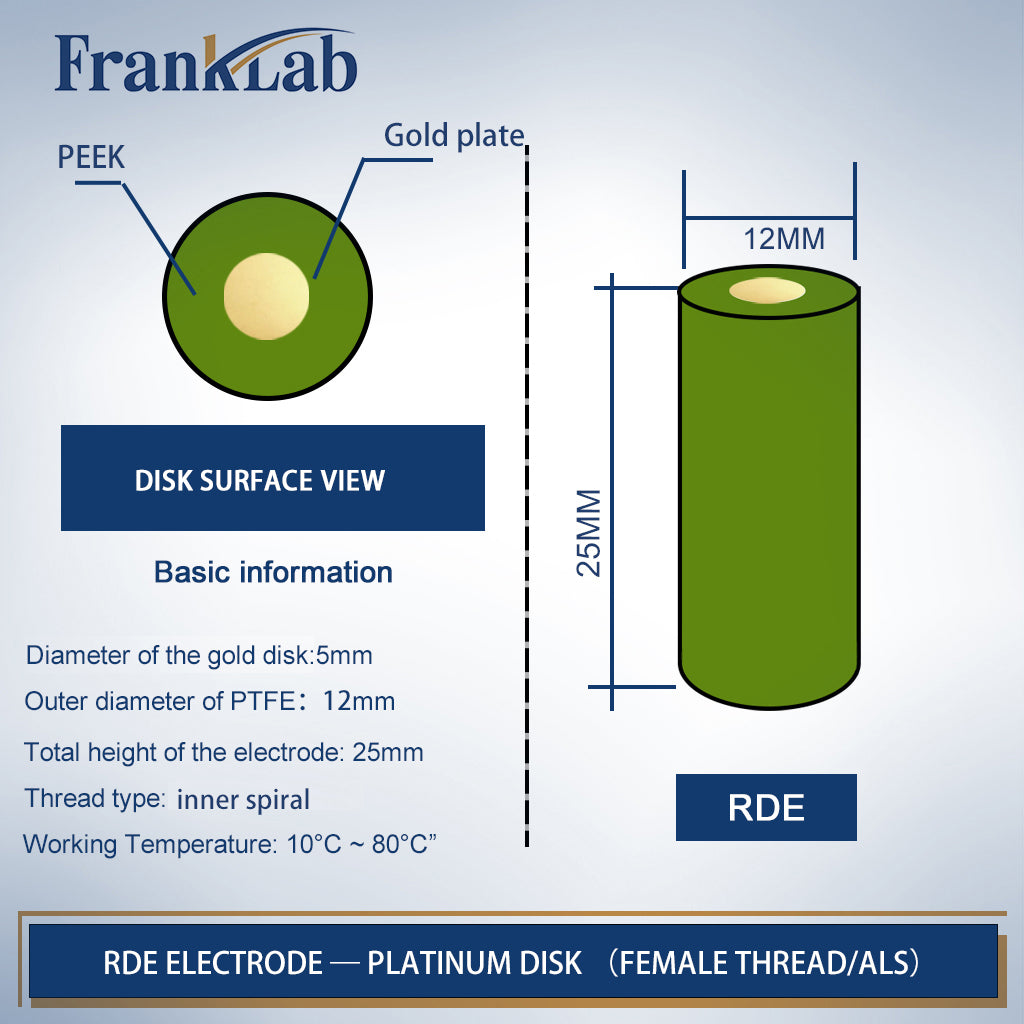

Technical Specifications (ALS-Compatible Model)
Parameter Value
Disk Diameter Ø5 mm (GC / Pt / Au optional)
Insulator Outer Diameter Ø12 mm (PEEK body)
Overall Electrode Height ~25 mm
Thread Type Female Thread (ALS-Compatible)
Working Temperature 10–80°C
Insulator Material PEEK (high-temperature, solvent-resistant)
Rotation Compatibility ALS Rotators / RRDE-ALS shaft systems
Chemical Resistance Acid, base, organic solvent compatible
Key Features
•High-Precision Manufacturing
•Disk press-fit with µm-level tolerance
•Ensures smooth surface, stable background current, and reproducible kinetic data

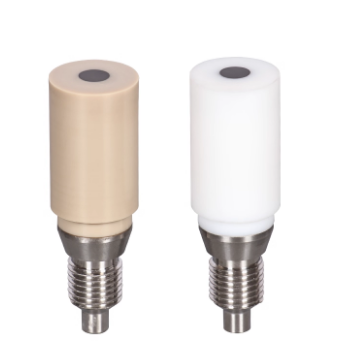

• PEEK Insulating Body
•High thermal stability for elevated temperature testing
•Resistant to acids, bases, organic solvents
•More durable than PTFE in industrial or long-term applications
• ALS-Compatible Female Thread
•Direct fit to ALS rotating shafts
•No adapters required
•Ensures perfect axial alignment and wobble-free rotation
• Multiple Disk Options
Choose GC / Pt / Au based on research needs (ORR, SAMs, catalysis, mechanistic studies).

Applications
Electrocatalysis
•ORR activity / electron transfer number
•HER / OER benchmarking
•CO₂RR preliminary screening
Mechanistic Analysis
•Levich and Koutecký–Levich (K–L) plots
•Reaction order studies
•Mass-transfer–controlled kinetics
Surface Chemistry
•Self-assembled monolayers (SAMs)
•Halide adsorption studies
•Noble metal surface reactions
General Electrochemical Research
•CV, LSV, chronoamperometry
•Baseline analysis with GC disk
•Electrochemical sensor development

Advantages of FrankLab RDE
  1. Multi-material disk options (GC, Pt, Au) for different research scenarios
  2. High-temperature PEEK insulation for more rigorous conditions
  3. Perfect compatibility with ALS rotators
  4. Smooth, stable hydrodynamic performance suitable for publication-quality data
  5. Long service life due to precision machining and robust materials

Customization Options
FrankLab supports full customization:
•Disk materials: GC / Pt / Au / Cu / Ni
•Disk diameter: 3 mm, 5 mm, 6 mm, custom sizes
•Body material: PEEK / PTFE / custom polymers
•Thread type: ALS female, Pine male, metric thread, or custom
•Laser engraving, batch coding, QC documentation
•Custom engineering drawings within 24 hours
