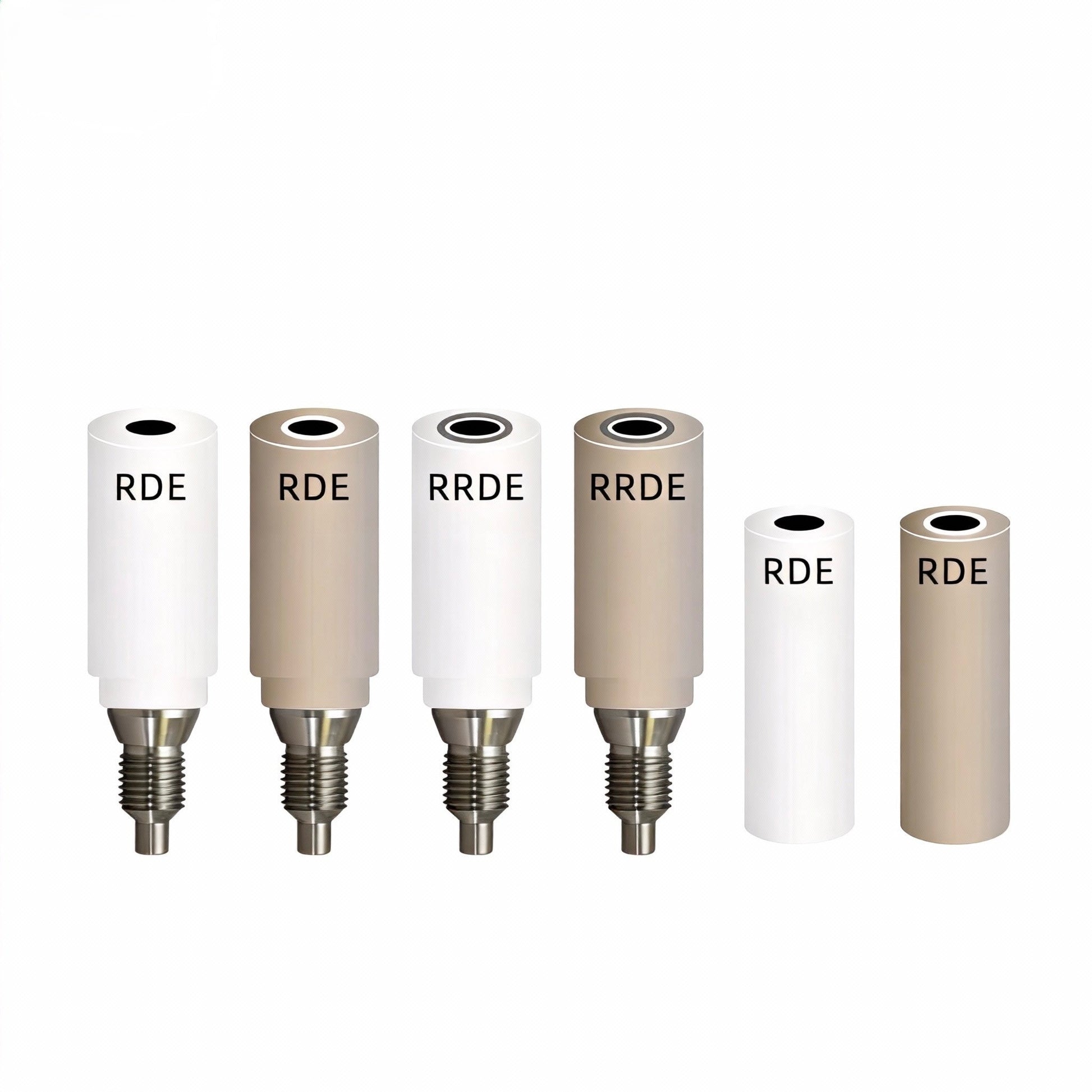

Rotating Disk Electrode/RDE, Glassy Carbon / Platinum / Gold Disk, Female Thread / Metrohm-Compatible)

Rotating Disk Electrode (RDE)

Glassy Carbon / Platinum / Gold Disk

(Female Thread / Metrohm-Compatible)

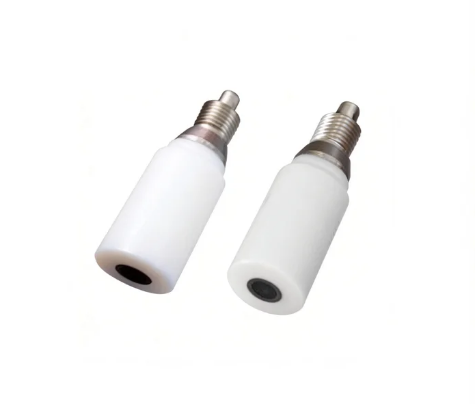

The FrankLab Metrohm-Compatible Rotating Disk Electrode (RDE) is engineered for high-precision hydrodynamic electrochemical testing, offering exceptional stability, reproducibility, and compatibility with Metrohm rotator systems.
With interchangeable disk materials—including Glassy Carbon (GC), Platinum (Pt), and Gold (Au)—this RDE supports a wide range of catalytic, mechanistic, and kinetic studies.

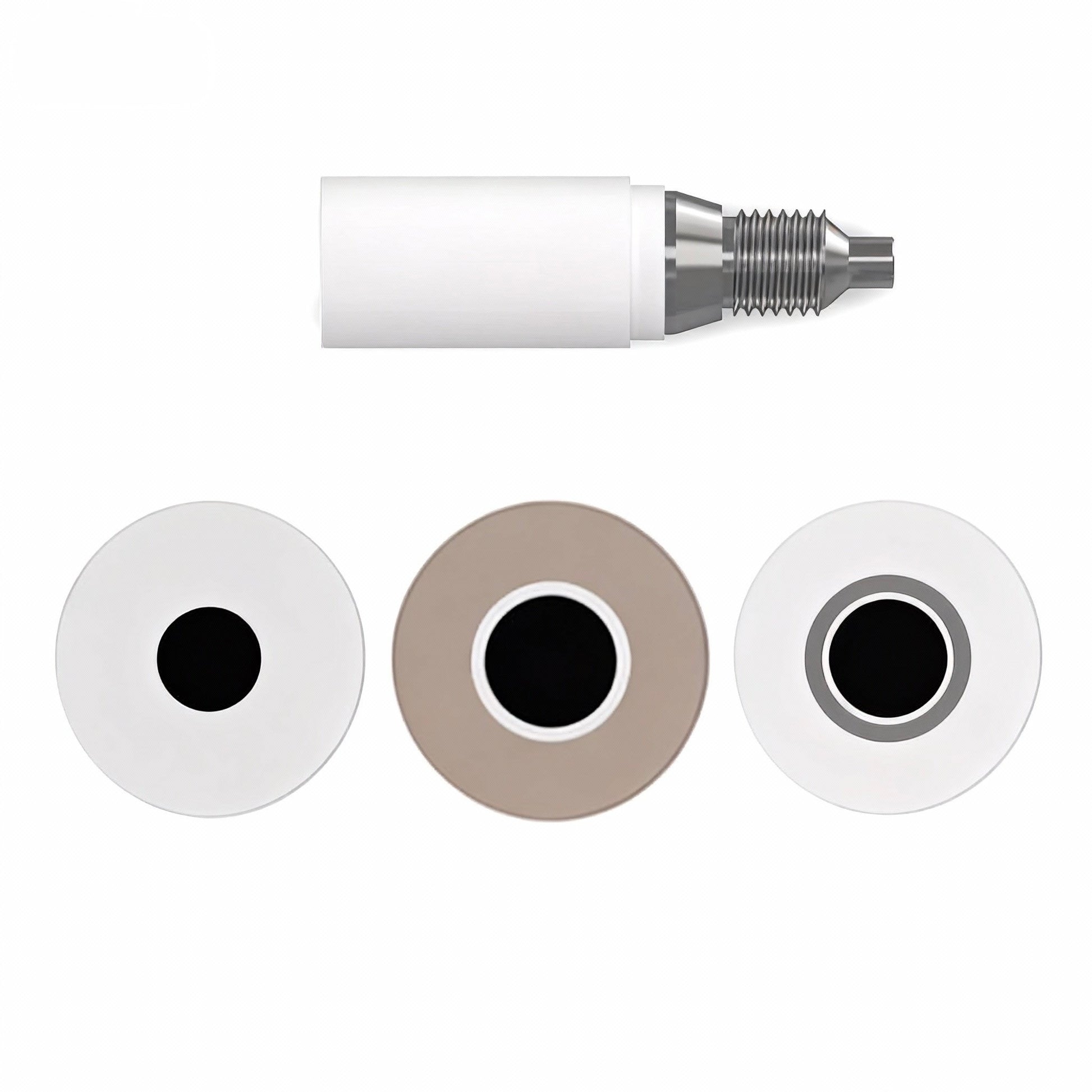

Available Disk Materials

1. Glassy Carbon Disk (GC)

• Disk Diameter: Ø5 mm

• Ideal for ORR, CV/LSV, catalyst benchmarking

• Chemically inert, low background current

2. Platinum Disk (Pt)

• Disk Diameter: Ø5 mm

• Suitable for acidic/alkaline media, high-temperature environments

• Best for HER/OER, redox chemistry, electrosynthesis

3. Gold Disk (Au)

• Disk Diameter: Ø5 mm

• Excellent for SAMs, thiol chemistry, noble-metal catalysis

• Ideal for surface-sensitive electrochemistry

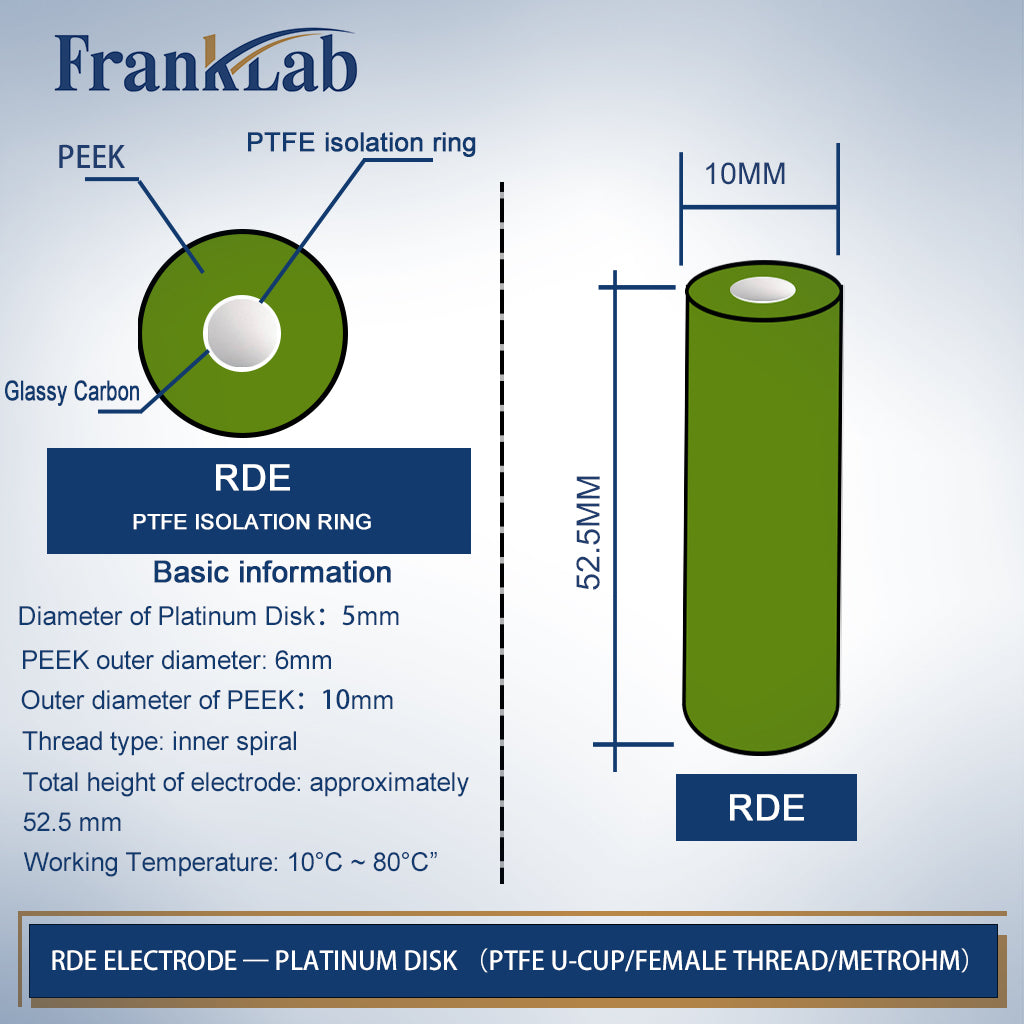

Technical Specifications

Key Features

• Precision-Machined Disk Assembly

Each disk is embedded with micron-level tolerance to ensure stable hydrodynamic behavior and minimal vibration during rotation.

•Chemical and Thermal Stability

• PEEK body (optional): Wide temperature range (up to 80°C), excellent rigidity

• Perfect Compatibility with Metrohm Systems

• Fully matches Metrohm’s internal thread

• No adapter required

• Ensures stable rotation, low wobble, and reproducible Levich/K–L curves

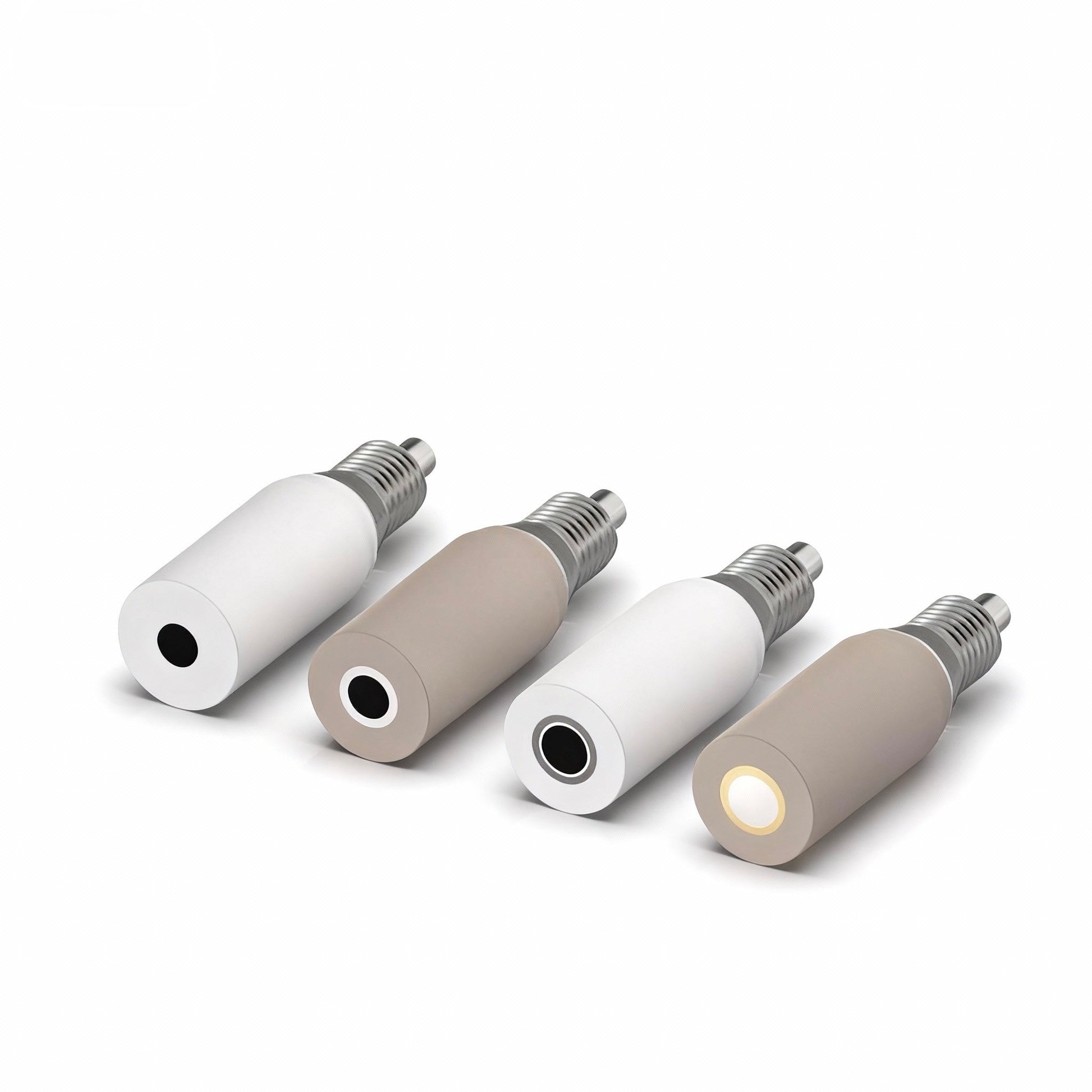

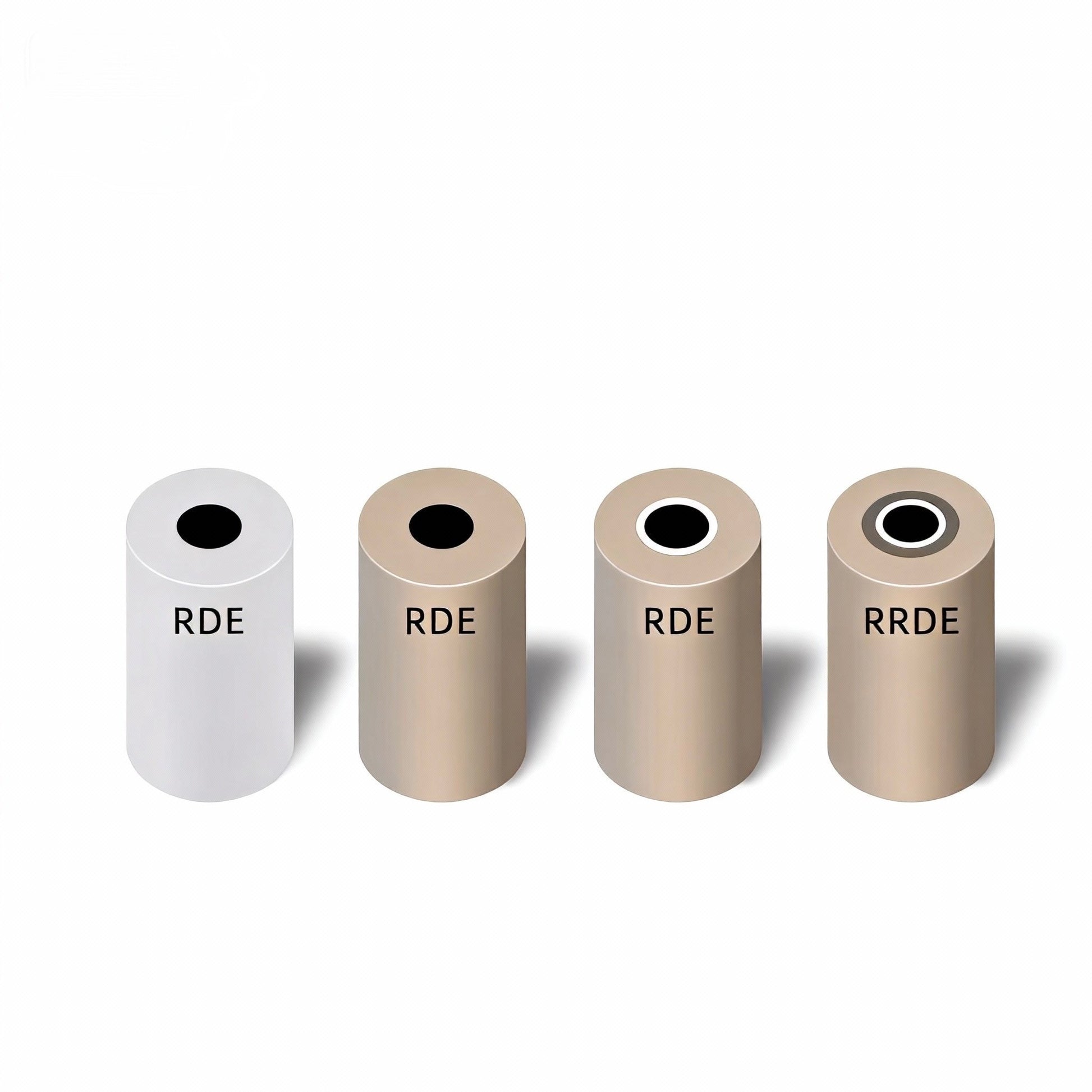

• Replaceable Disk Options

Easily switch between GC, Pt, and Au to match experimental needs.

Applications

Electrocatalysis Research

• ORR / OER / HER

• Catalyst screening

• Electron-transfer number (n) studies

CO₂ Reduction (CO₂RR)

• Liquid/ gas-phase product pathways

• Catalyst activity and stability evaluation

Kinetic and Mechanistic Studies

• Levich and Koutecký–Levich (K–L) analysis

• Reaction order and rate determination

Surface Chemistry

• SAM formation (Au)

• Platinum electrochemistry

• Carbon surface modification

Why Researchers Choose FrankLab RDE

1. Precision and Repeatability

Tight machining tolerances guarantee consistent hydrodynamics.

2. Global Material Standards

GC, Pt, and Au disks follow electrochemical-grade purity and flatness.

3. Metrohm-Compatible Engineering

Thread pitch, diameter, and body length fully align with Metrohm specifications.

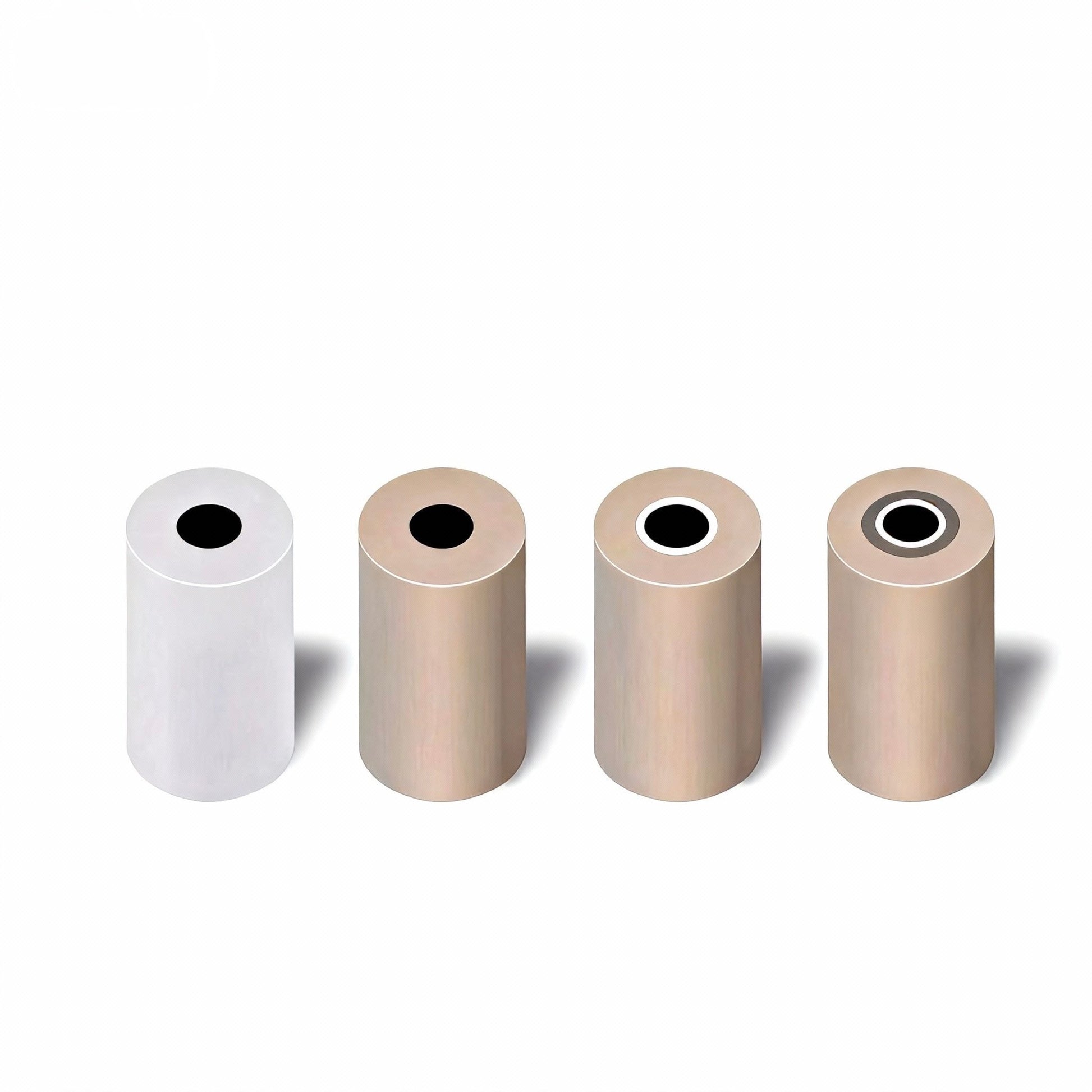

4. Multiple Insulation Options

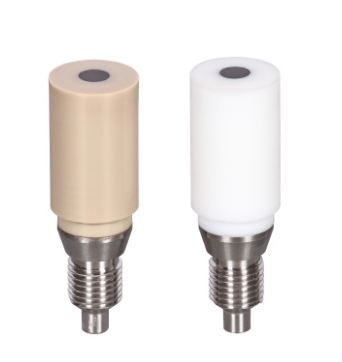

Choose PTFE for stability or PEEK for high-temperature performance.

5. OEM/ODM Customization

FrankLab supports custom geometry, diameters, materials, and batch coding.

Customization Options

We provide fast OEM services:

Disk Materials

GC / Pt / Au / Cu / Ni / Glassy Carbon variants

Disk Diameters

3 mm / 4 mm / 5 mm / 6 mm / Custom

Insulator Options

PTFE / PEEK

Threading

Metrohm internal thread / PINE / ALS / Customized sizes

Additional Services

• Surface polishing options

• Logo engraving

• Serial batch coding

• Custom drawings + pricing within 24 hours

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
