Rotating Disk Electrode (RDE) — Glassy Carbon / Platinum / Gold Disk (Female Thread / PINE-Compatible)｜ FrankLab

Product Overview

The FrankLab Rotating Disk Electrode (RDE) is designed for high-precision hydrodynamic electrochemical studies, offering excellent reproducibility, mechanical stability, and full compatibility with PINE-style rotators.
With a female-thread interface, this RDE integrates easily into standard rotating electrode systems and provides consistent laminar flow conditions essential for kinetic and mechanistic analysis.

Available in Glassy Carbon (GC), Platinum (Pt), and Gold (Au) disk materials, the FrankLab RDE supports a wide range of applications, including electrocatalysis benchmarking, reaction kinetics, corrosion studies, and surface chemistry research.
Each electrode is built using a highly durable PTFE insulating body and a gold-plated copper terminal to ensure superior electrical conductivity and long-term stability.

Available Disk Materials

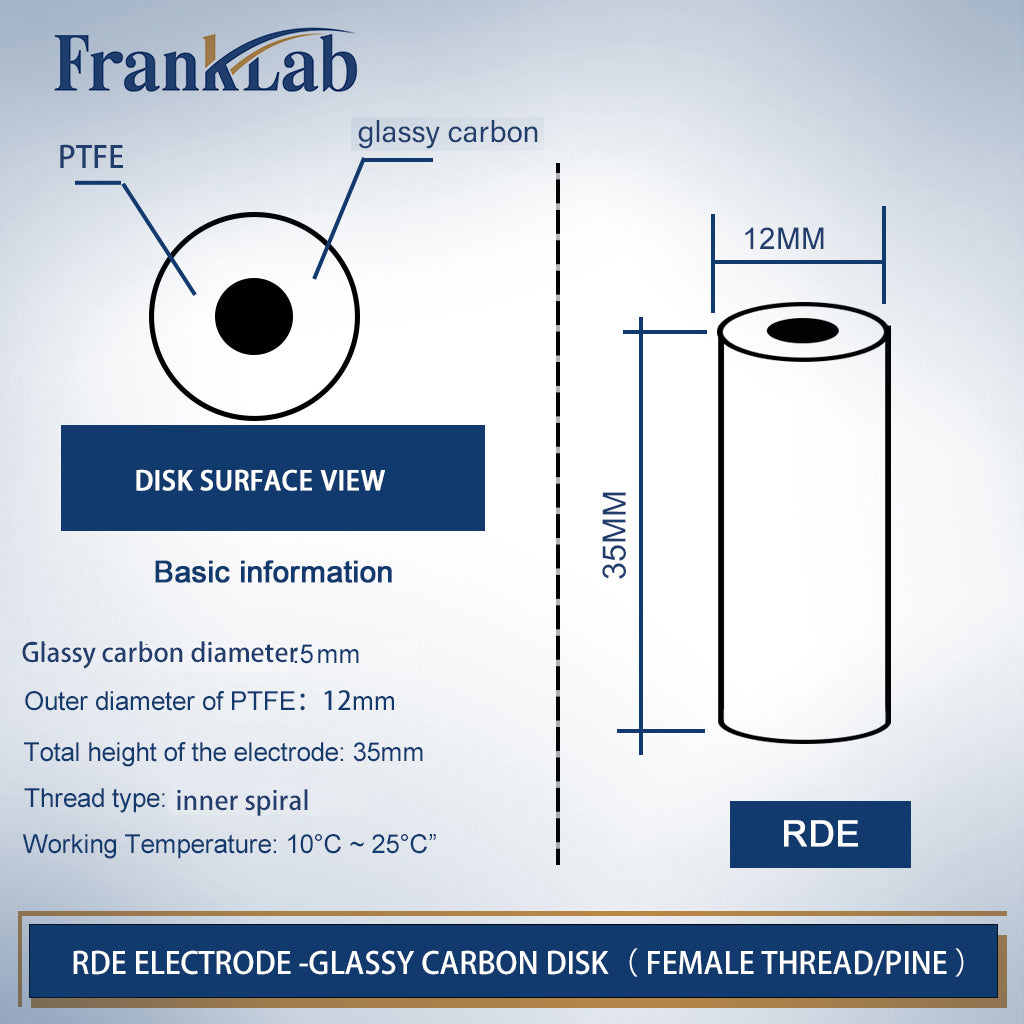

1. Glassy Carbon Disk (GC)

•Chemically inert and suitable for a wide potential window

•Ideal for ORR, OER, HER, CO₂RR, and general electrocatalysis

•Excellent surface stability and easy to polish

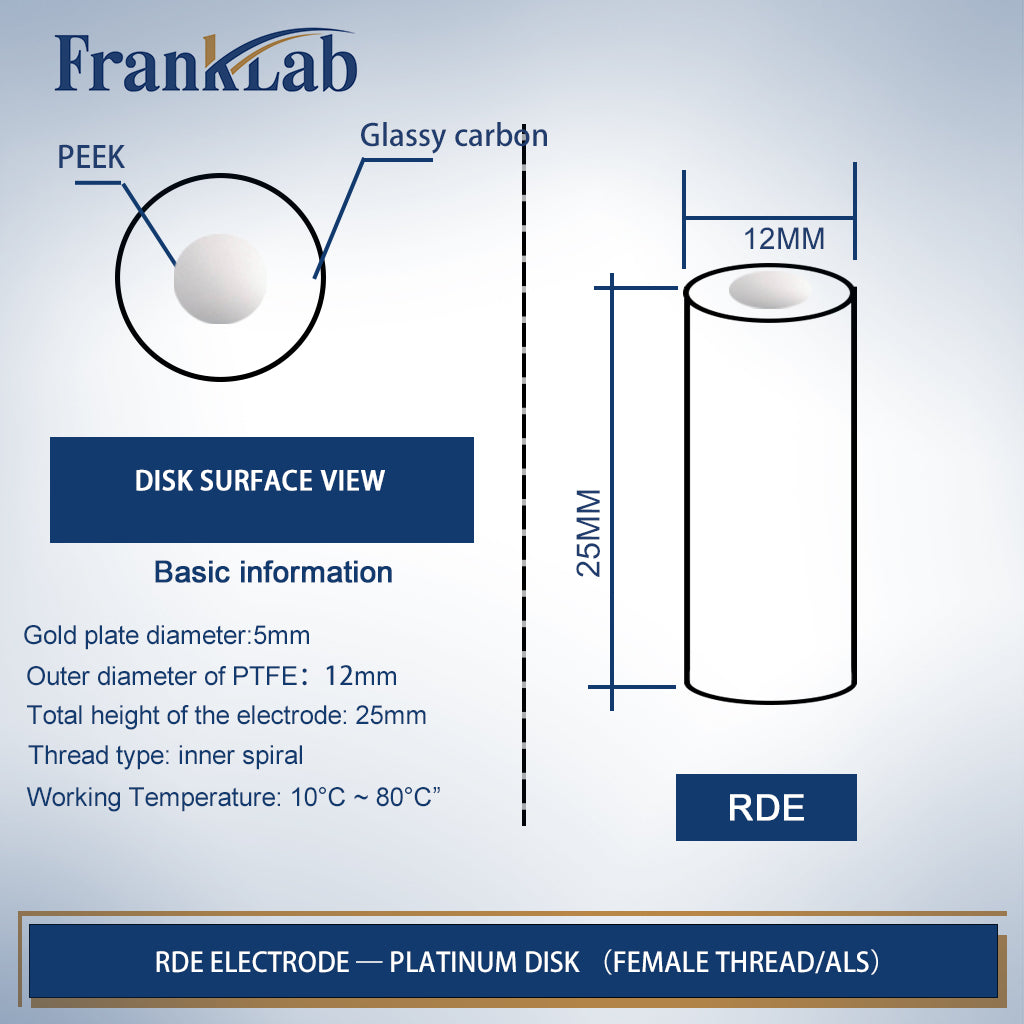

2. Platinum Disk (Pt)

•Highly catalytic and corrosion-resistant

•Preferred for HER/OER studies, fuel cell catalyst benchmarking, and standard redox reactions

•Performs reliably in acidic and oxidizing environments

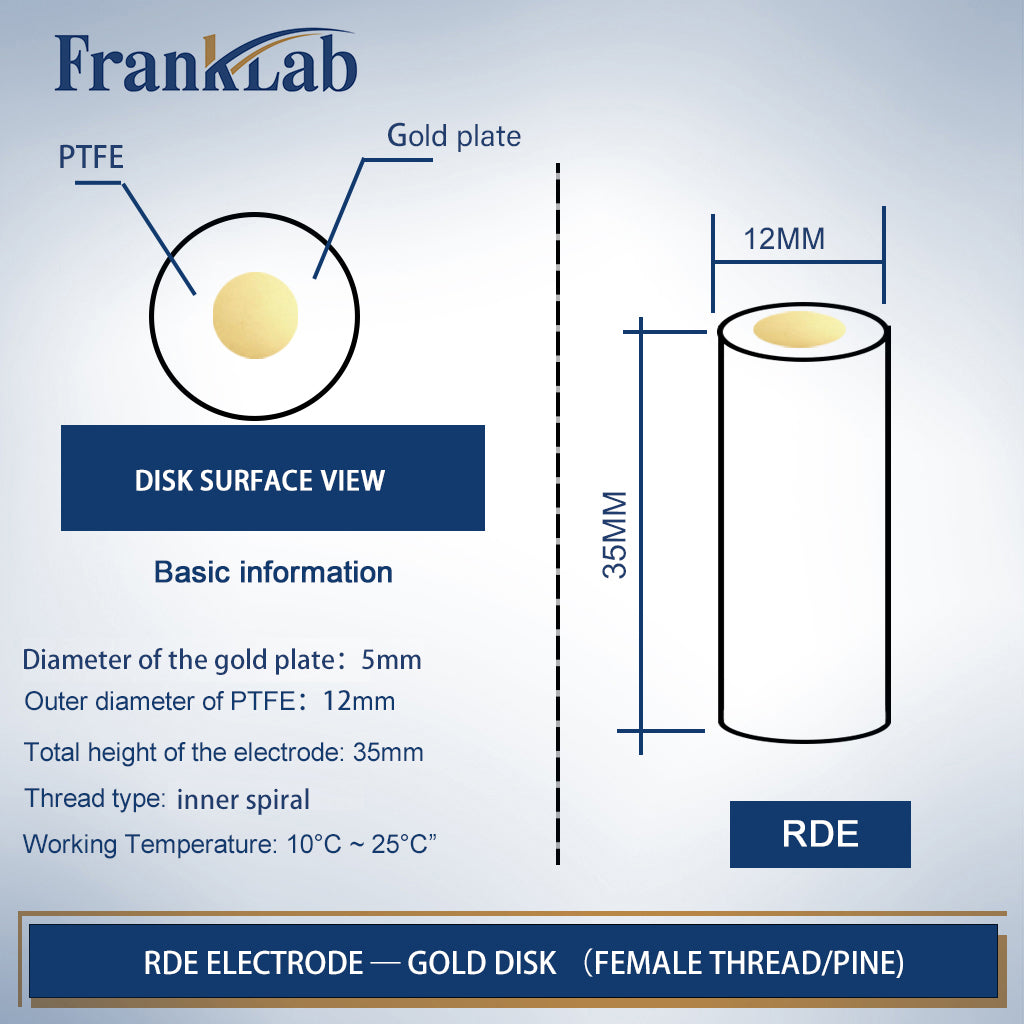

3. Gold Disk (Au)

•Suitable for SAM formation, thiol chemistry, biosensing, and surface-sensitive studies

•Excellent conductor with reproducible electrochemical behavior

Key Features

✔ PINE-Compatible Female Thread

•Fits PINE MSR, WaveVortex, and most commercial RDE rotators

•Ensures stable and wobble-free rotation

•No adapter required

✔ Precision Disk Geometry

•Concentric machining ensures accurate hydrodynamic behavior

•Provides high reproducibility for Levich and Koutecký–Levich analysis

•Smooth, uniform electrode surface

✔ PTFE Insulating Body

•Chemically inert and resistant to acids, bases, and organic solvents

•Low adsorption and easy to clean

•Optional: PEEK body for aggressive or high-temperature environments

✔ Replaceable / Custom Disk Options

•Multiple materials available (GC / Pt / Au / Cu / Ni)

•Custom diameters and body sizes available upon request

Technical Specifications

Recommended Applications

Electrocatalysis

•ORR/HER/OER catalyst evaluation

•CO₂RR selectivity testing

•Reaction intermediate studies

Kinetic Analysis

•Levich plots

•Koutecký–Levich modeling

•Diffusion vs kinetic control

Surface Chemistry

•SAM formation on Au disks

•Adsorption / desorption studies

•Electron-transfer mechanism evaluation

Standard Electrochemical Methods

•Cyclic Voltammetry (CV)

•Linear Sweep Voltammetry (LSV)

•Electrochemical Impedance Spectroscopy (EIS)

Advantages of FrankLab RDE

1. Research-Grade Accuracy

Machined to tight tolerances for repeatable hydrodynamic performance.

2. Outstanding Chemical Stability

PTFE body + noble metal disk options = long-term durability.

3. High Signal Reproducibility

Smooth disk surface and stable rotation reduce background noise.

4. Fully Customizable

Disk material, diameter, body material, and thread can be customized for any research need.

Customization Options

FrankLab offers OEM/ODM customization for research groups and instrument manufacturers:

•Disk materials: GC / Pt / Au / Cu / Ni

•Disk diameter: 3 mm, 5 mm, 6 mm, or custom

•Insulator: PTFE / PEEK / custom polymers

•Thread type: PINE female / metric thread / custom

•Branding: laser engraving, serial coding, OEM logo

Custom drawings and quotations provided within 24 hours.
