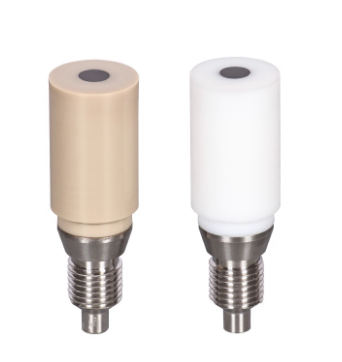

Rotating Ring Disk Electrode/RRDE, Glassy Carbon / Platinum / Gold Disk, Female Thread, ALS-Compatible

Rotating Ring–Disk Electrode (RRDE) — Glassy Carbon / Platinum / Gold Disk

Female Thread · ALS-Compatible · PEEK Body · Precision Ring Geometry

Product Overview

The FrankLab Rotating Ring–Disk Electrode (RRDE) is a precision-engineered hydrodynamic electrode designed for advanced mechanistic electrochemistry.
Featuring a central disk electrode surrounded by a concentric metal ring, this RRDE enables real-time intermediate detection, selectivity analysis, reaction-pathway tracking, and quantitative kinetic evaluation.

This model is fully ALS-compatible (female thread mounting) and constructed with a PEEK insulating body, providing superior thermal stability (up to 80°C) and chemical resistance for rigorous electrocatalytic studies.

Available in three disk materials—Glassy Carbon, Platinum, and Gold—the FrankLab RRDE meets the demanding requirements of ORR, CO₂RR, EC/CE mechanism studies, organic electrosynthesis, and durability tests.

Available Models

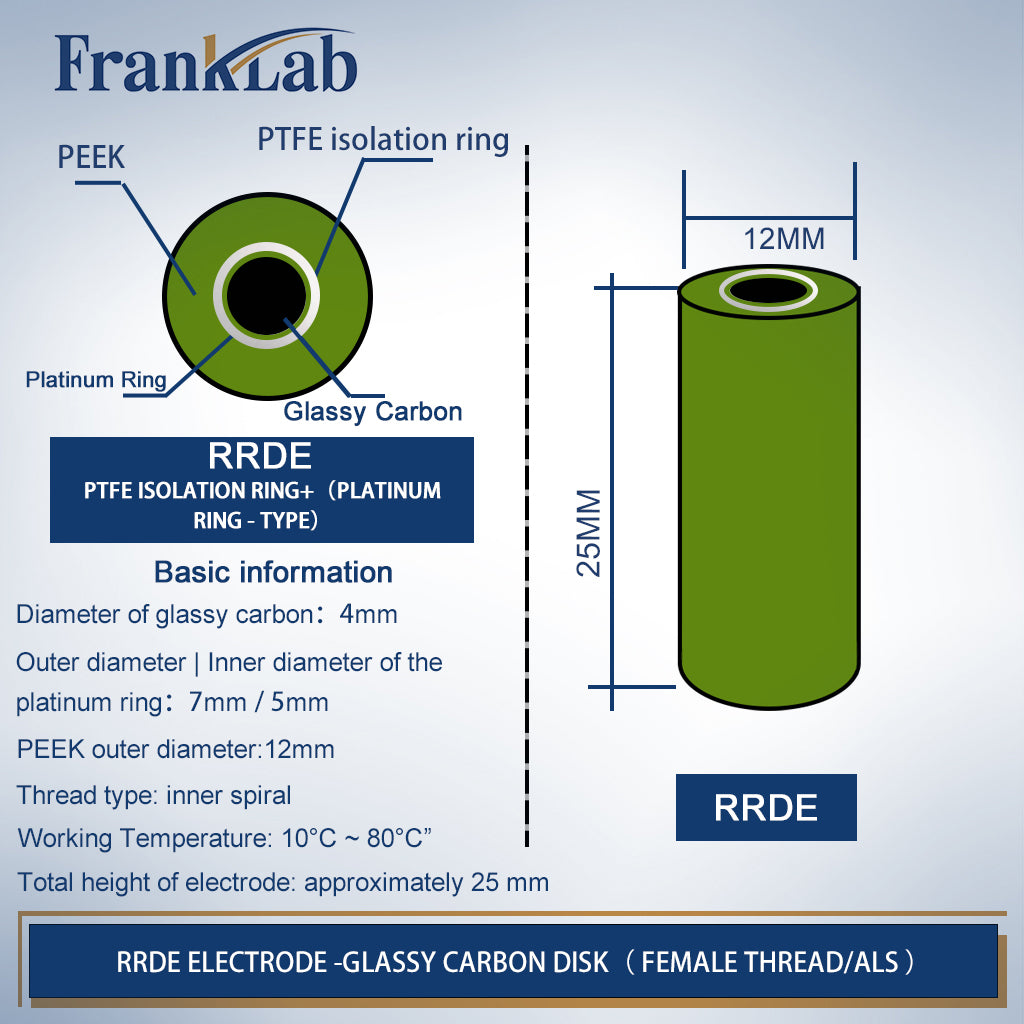

1. Glassy Carbon Disk + Platinum Ring (GC/Pt)

• Disk Diameter: Ø4 mm
• Ring Inner Diameter: Ø5 mm
• Ring Outer Diameter: Ø7 mm
Ideal for ORR, peroxide detection, electrocatalyst screening, EC/CE pathway validation.

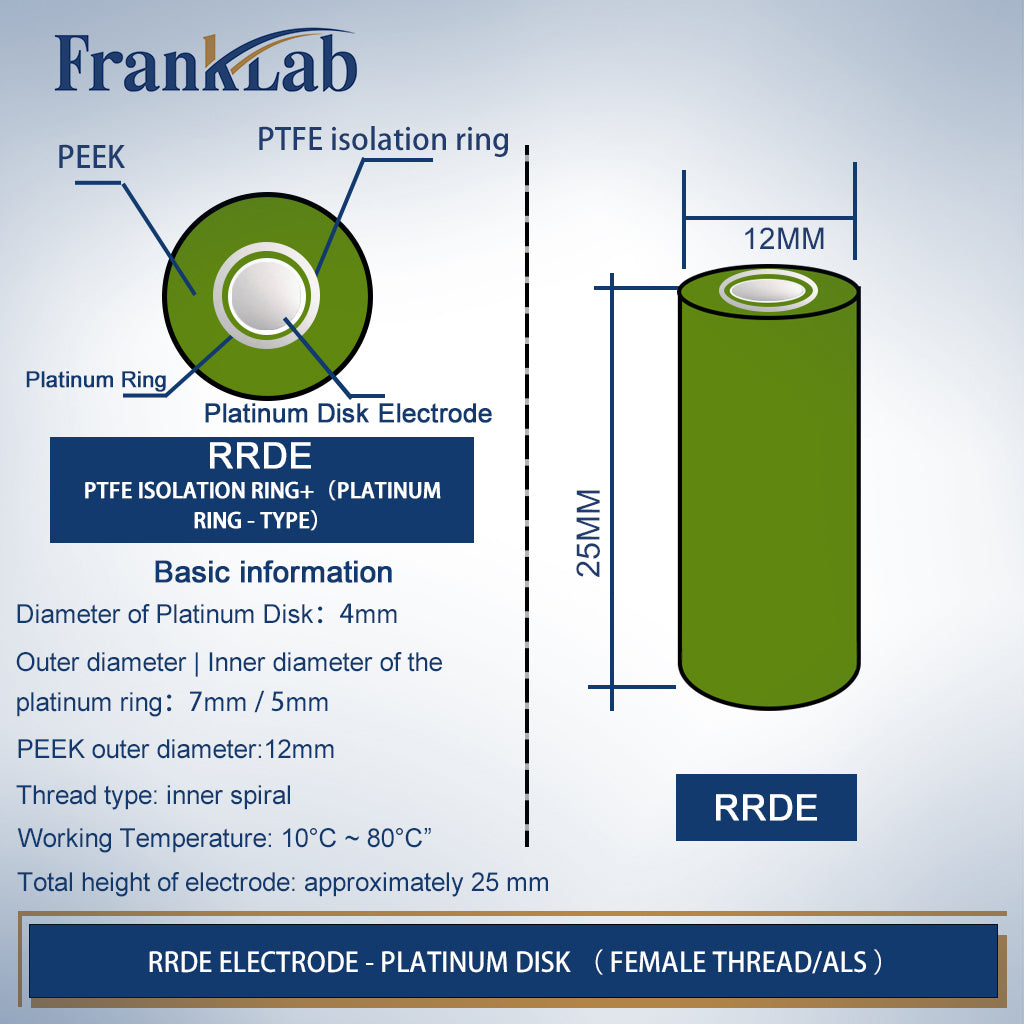

2. Platinum Disk + Platinum Ring (Pt/Pt)

• Disk Diameter: Ø4 mm
• Ring Inner Diameter: Ø5 mm
• Ring Outer Diameter: Ø7 mm
Excellent for acidic, high-temperature, and strongly oxidizing environments.
Commonly used for HER/OER, industrial catalyst benchmarking, and kinetic analysis.

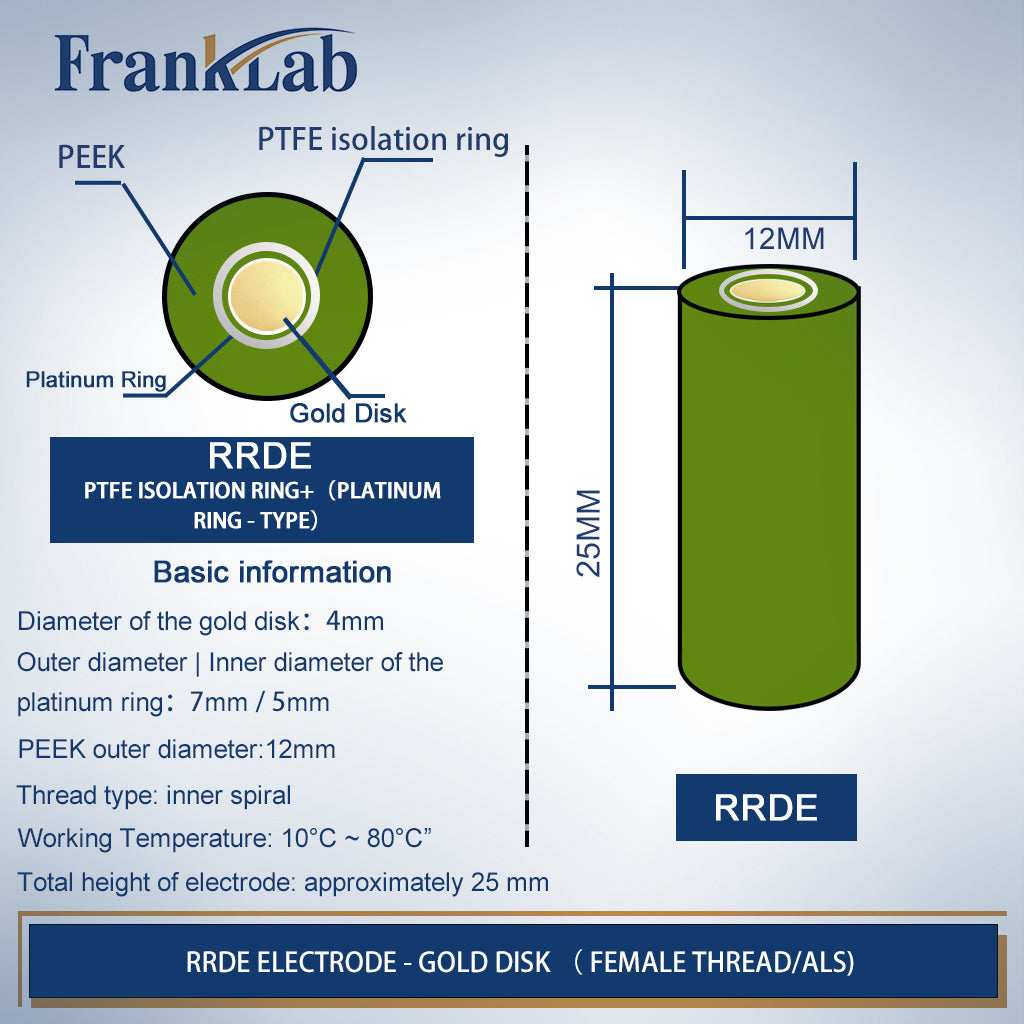

3. Gold Disk + Platinum Ring (Au/Pt)

• Disk Diameter: Ø4 mm
• Ring Inner Diameter: Ø5 mm
• Ring Outer Diameter: Ø7 mm
Best suited for SAM formation, thiol chemistry, noble-metal surface studies, organic electrochemistry.

Technical Specifications

⭐ Key Features

·  Precision Disk–Ring Geometry

· Micro-machined gap ensures high reproducibility

· Enables accurate collection efficiency (N) determination

· Stable and low-noise background currents

· Ideal for mechanistic studies requiring high signal fidelity

• High-Performance PEEK Insulating Body

· Withstands high temperatures (up to 80°C)

· Excellent resistance to acids, bases, organics

· Perfect for long-term or aggressive electrochemical environments

• ALS-Compatible Male Thread Interface

· Direct mounting on ALS rotators

· Zero-wobble design ensures hydrodynamic stability

· No adapter required

• Multiple Disk Materials for Different Research Needs

· GC: inert, wide potential window, ideal for ORR/CO₂RR

· Pt: high stability and conductivity for HER/OER

· Au: surface chemistry, SAMs, organic electrosynthesis

Applications

Electrocatalysis & Energy Conversion

· ORR selectivity & H₂O₂ quantification

· Koutecky–Levich analysis

· Electron transfer number (n)

CO₂RR Mechanism Analysis

· CO, formate, peroxide intermediate detection

· Disk–ring coupling for product mapping

Reaction Mechanism and Kinetics

· EC/CE pathway evaluation

· Radical tracking

· Intermediates capture studies

Organic Electrosynthesis

· Mapping electrogenerated intermediates

· Studying catalytic turnover mechanisms

Advantages of FrankLab RRDE

1. Ultra-precise disk–ring machining for unmatched reproducibility
2. PEEK body for high-temperature and aggressive-solvent stability
3. Multiple disk materials meet all catalytic and mechanistic research needs
4. Perfect compatibility with ALS rotator systems
5. Custom geometry options for advanced research requirements

Customization Options

FrankLab provides full OEM/ODM support:

Disk Materials:

GC / Pt / Au / Cu / Ni

Ring Materials:

Pt (standard) / Au / GC

Geometry Customization:

· Disk diameter: 3–6 mm

· Ring ID/OD modifications

· Separation gap tuning

· PEEK or PTFE insulator options

· ALS thread / Pine thread / metric thread

Branding & Manufacturing:

· Laser logo engraving

· Serial/batch coding

· Custom drawings + 24-hour quotation
