Rotating Ring Disk Electrode/RRDE，Glassy Carbon / Platinum / Gold Disk，Male Thread，PINE-Compatible

Rotating Ring Disk Electrode/RRDE，Glassy Carbon / Platinum / Gold Disk，Male Thread，PINE-Compatible

Product Description
Shipping & Delivery

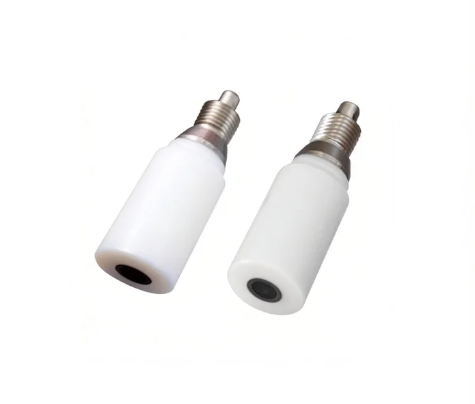

Rotating Ring–Disk Electrode (RRDE) | Male Thread | PINE-Compatible

Glassy Carbon / Platinum / Gold Disk Options · Precision Ring Geometry · PTFE Body

Product Overview
The FrankLab Rotating Ring–Disk Electrode (RRDE) is a high-precision hydrodynamic working electrode designed for advanced mechanistic electrochemical studies. This RRDE features a central disk electrode and a concentric metal ring electrode, enabling real-time detection of reaction intermediates and quantitative kinetic analysis.
Fully compatible with PINE-style male-thread rotators, this RRDE provides exceptional stability, reproducibility, and accuracy for catalytic evaluation, ORR selectivity studies, EC/CE pathway analysis, and more.

Available Models (Based on Your Images)

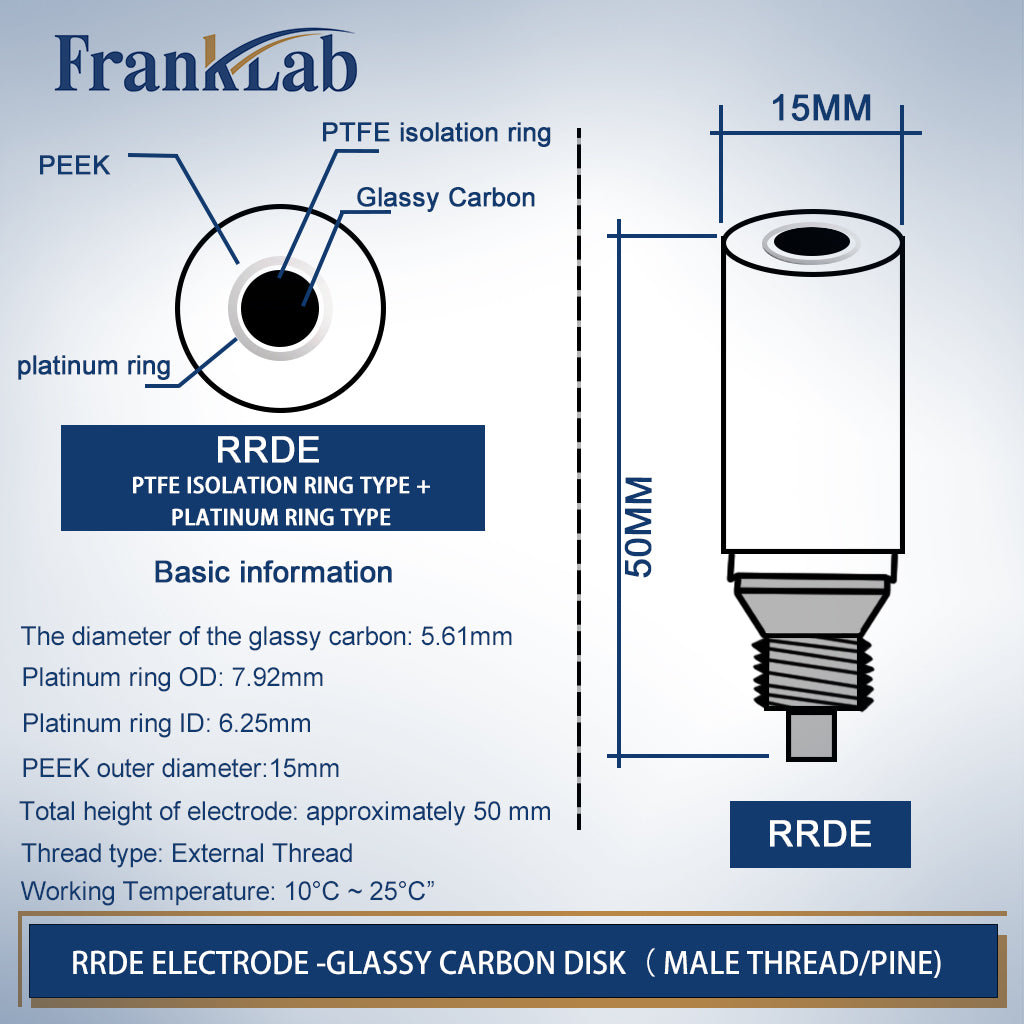

1. Glassy Carbon Disk + Platinum Ring (GC/Pt)
•Disk: Ø5.61 mm glassy carbon
•Ring: Pt ring
•Ideal for ORR, peroxide detection, electrocatalysis

2. Platinum Disk + Platinum Ring (Pt/Pt)
•Disk: Ø5.61 mm platinum
•Ring: Pt ring
•For high-temperature, acid, strong oxidizing media
•Excellent for HER/OER and industrial catalysis research

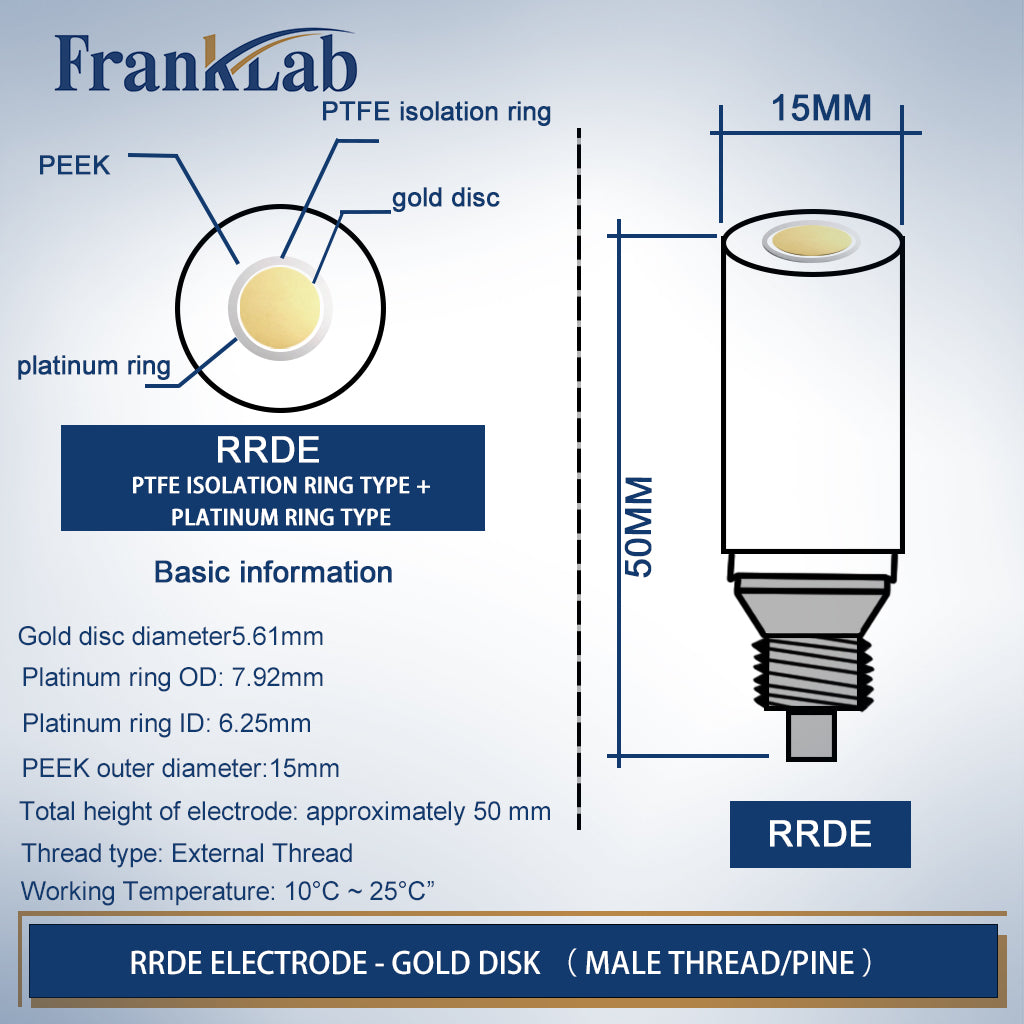

3. Gold Disk + Platinum Ring (Au/Pt)
•Disk: Ø5.61 mm gold
•Ring: Pt ring
•Suitable for thiol chemistry, SAMs, noble metal surface studies

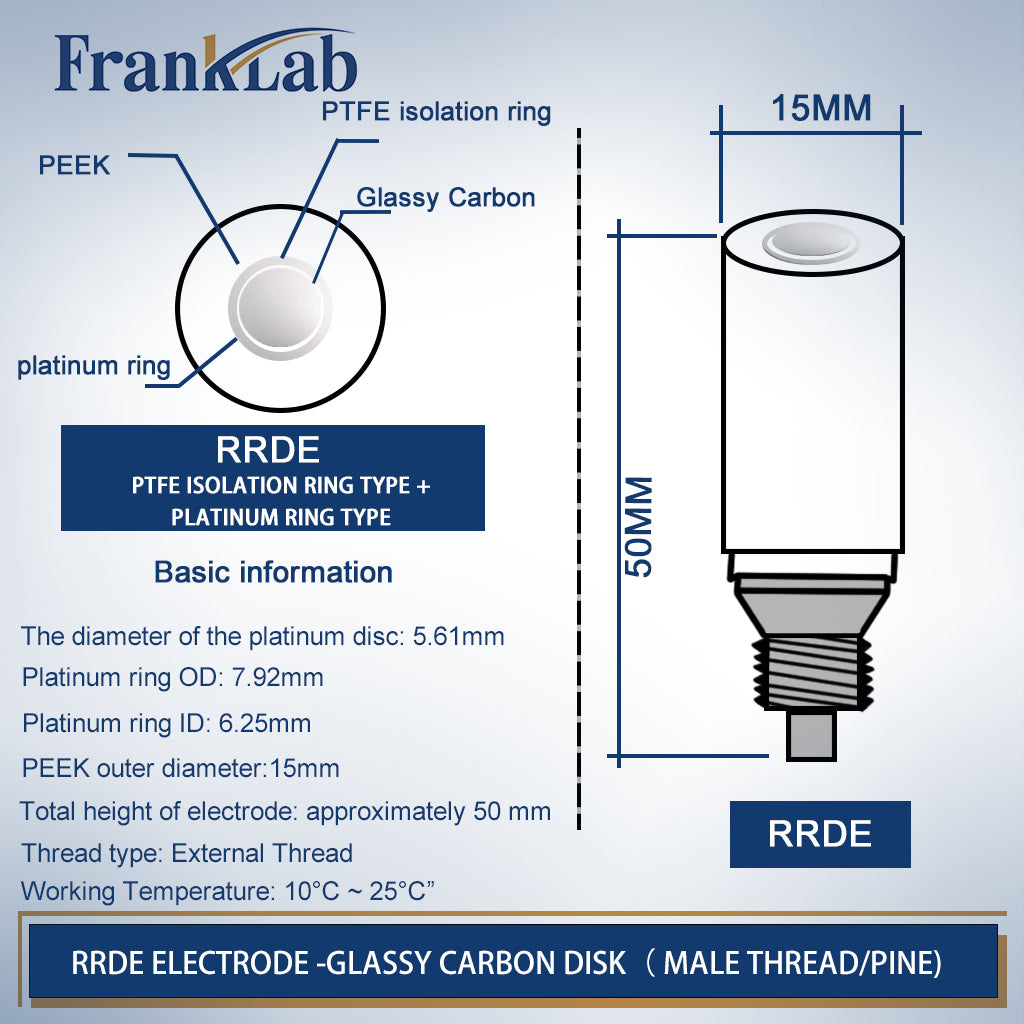

Technical Specifications
Parameter Value
Disk Diameter Ø5.61 mm (GC / Pt / Au optional)
Ring Outer Diameter (OD) Ø7.92 mm
Ring Inner Diameter (ID) Ø6.25 mm
Insulator Outer Diameter Ø15 mm (PTFE body)
Overall Electrode Height ~50 mm
Thread Type Male Thread (PINE-Compatible)
Working Temperature 10–25°C (recommended)

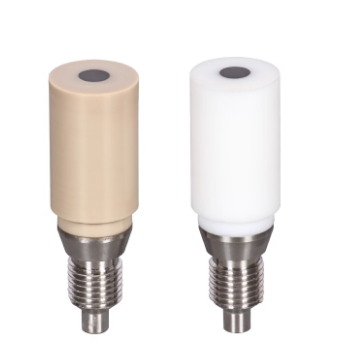

Insulator Material PTFE (optional upgrade: PEEK)
Rotation Compatibility Suitable for Pine MSR / WaveVortex rotators
Key Features
• Dual-Electrode Geometry
•Disk performs primary electrochemical reaction
•Ring quantitatively detects formed intermediates
••upports collection efficiency (N) analysis

• High Machining Precision
•Disk–ring gap produced with µm-level tolerance
•Ensures stable background currents
•Enables reproducible ORR & reaction-mechanism studies

• PTFE Insulating Body
•Excellent resistance to acids, bases, organic solvents
•Chemically inert, durable, and easy to clean
(PEEK option available for high-temperature or aggressive conditions.)

• PINE-Compatible Male Thread
•Directly compatible with common rotator shafts
•No adapter required
•Ensures stable rotation without wobble

Applications
•ORR Mechanistic Studies
•H₂O₂ quantification
•Electron transfer number (n)
•Catalyst selectivity evaluation
•CO₂RR Intermediate Capture
•CO, formate, peroxide pathways
•Electrocatalysis Kinetics
•Levich / K–L analysis
•Reaction order studies
•Organic Electrosynthesis Mechanisms
•EC/CE Reaction Pathway Mapping

Advantages of FrankLab RRDE
1. Ultra-precise disk–ring geometry
Ensures consistent hydrodynamics and excellent signal-to-noise.
2. Multiple disk materials available
Choose GC, Pt, or Au based on your research needs.
3. High durability for long-term experiments
Ideal for ORR, OER, CO₂RR, and accelerated durability testing.
4. Full customization support
Ring width, disk size, and insulator materials can be modified on request.

Customization Options
FrankLab supports OEM/ODM manufacturing:
•Disk materials: GC / Pt / Au / Cu / Ni
•Ring materials: Pt / Au / GC
•Disk diameters: 3 mm, 5.61 mm, 6 mm, custom
•Ring ID/OD modifications
•Insulator: PTFE / PEEK
•Thread style: Pine male, metric thread, custom
•Etching, logo engraving, batch coding
Custom drawings + quotation within 24 hours.

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
