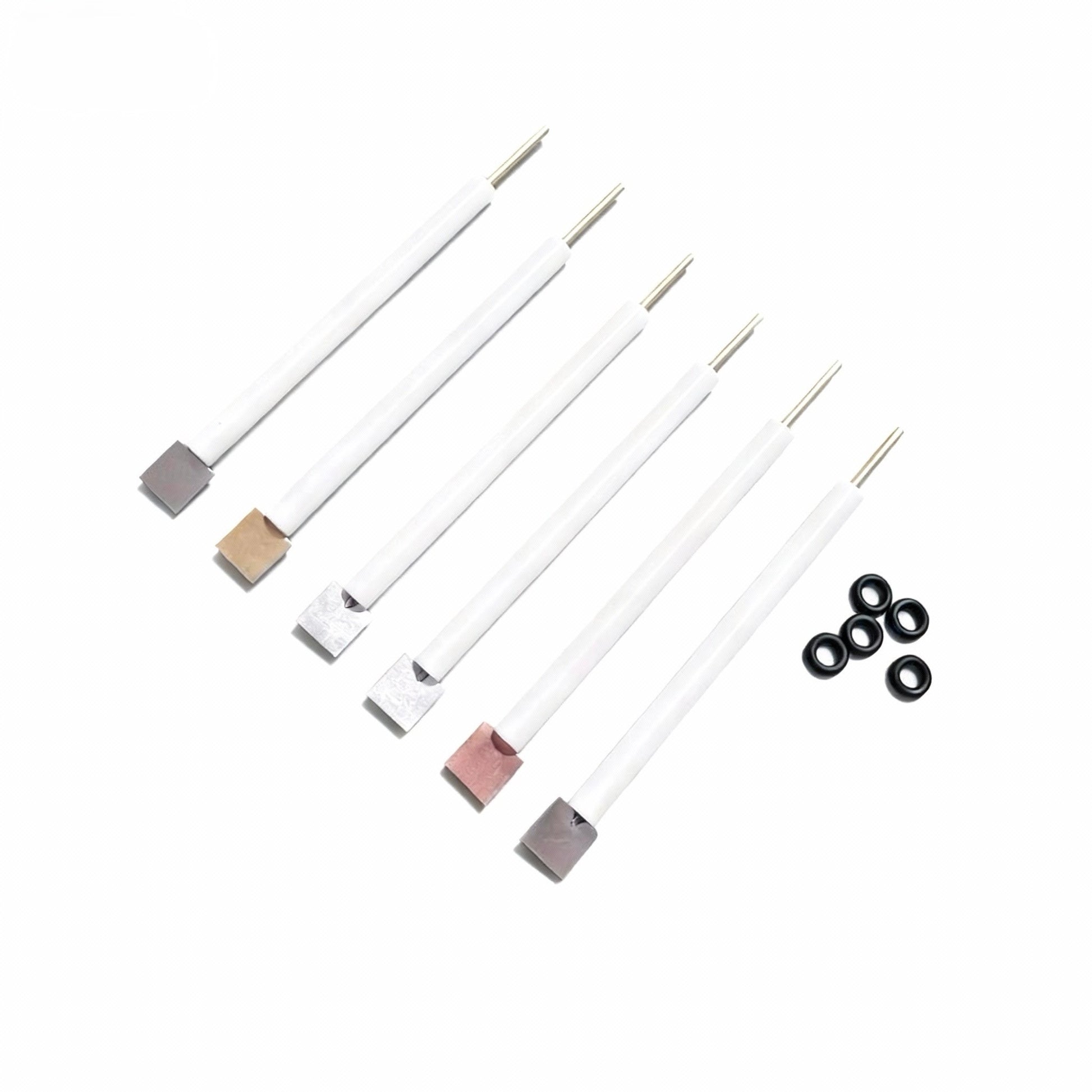

Ru–Ir Titanium Sheet Electrode

Ru–Ir Titanium Sheet Electrode | MMO Coated Ti Plate | FrankLab

Ruthenium–Iridium Mixed Metal Oxide Coating · Long Service Life · Excellent OER/ClER Performance · Ideal for Industrial & Research Electrochemistry

Product Overview

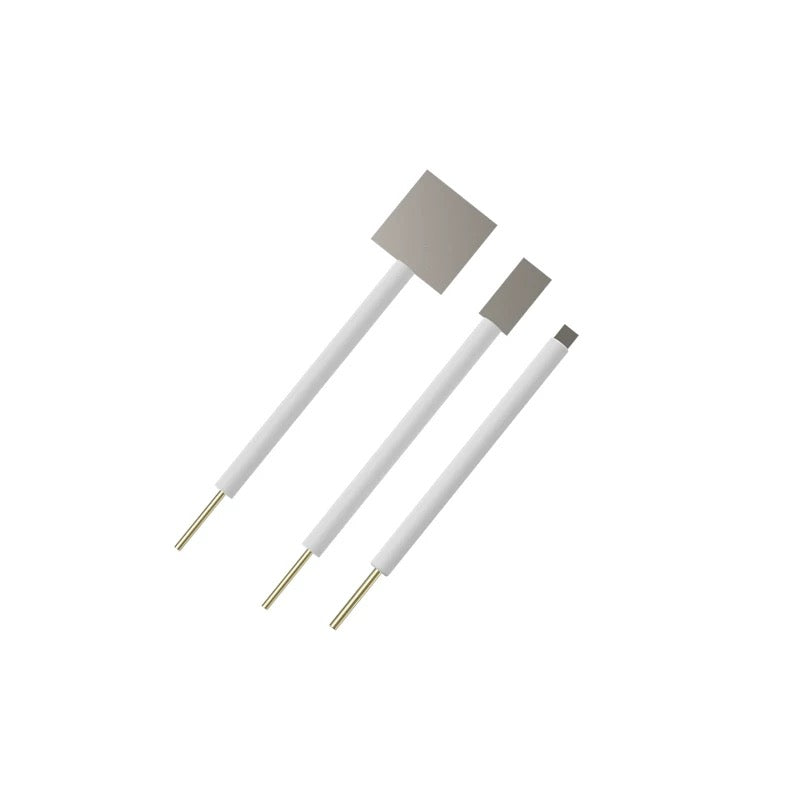

The FrankLab Ru–Ir Titanium Sheet Electrode is a premium mixed-metal-oxide (MMO) anode consisting of:

• Titanium plate substrate (Grade 1 or 2)

• A catalytic RuO₂–IrO₂ coating

• Optional coating thicknesses and geometries

Ru–Ir MMO coatings are widely recognized for:

• Outstanding catalytic activity for oxygen evolution (OER)

• High stability in chloride-containing media (ClER)

• Long operational lifetime under high current density

• Resistance to chemical and mechanical degradation

These electrodes are used in:

• Water electrolysis (acidic/neutral)

• Electrochlorination & disinfectant generation

• Wastewater electro-oxidation

• Industrial electrolyzers

• High-current laboratory electrochemistry

• Electro-organic synthesis

FrankLab supports multiple standard sizes and full customization of coating thickness, Ru:Ir ratio, and plate geometry.

Key Features

• Ru–Ir MMO Catalytic Layer (Ruthenium + Iridium Oxides)

• High electrocatalytic activity for OER & CER

• Low overpotential

• Excellent stability even under high current

• Customizable Ru:Ir ratio to match application

• Titanium Substrate (Grade 1/2)

Titanium provides:

• Light weight & mechanical strength

• Outstanding corrosion resistance

• Strong adhesion to MMO coatings

• Long-term durability

• Long Service Life

Ru–Ir MMO electrodes are designed for extended operation in:

• Acidic electrolytes

• Chloride-rich solutions

• High current industrial environments

Typical service lifetime is significantly longer than platinum-coated or graphite-based anodes.

• Stable Electrochemical Window

Supports:

• High anodic potentials

• Minimal degradation

• Smooth operational behavior in CV/LSV/EIS

• Optional Surface Reinforcement

Available for large sheet sizes to ensure rigidity.

Technical Specifications

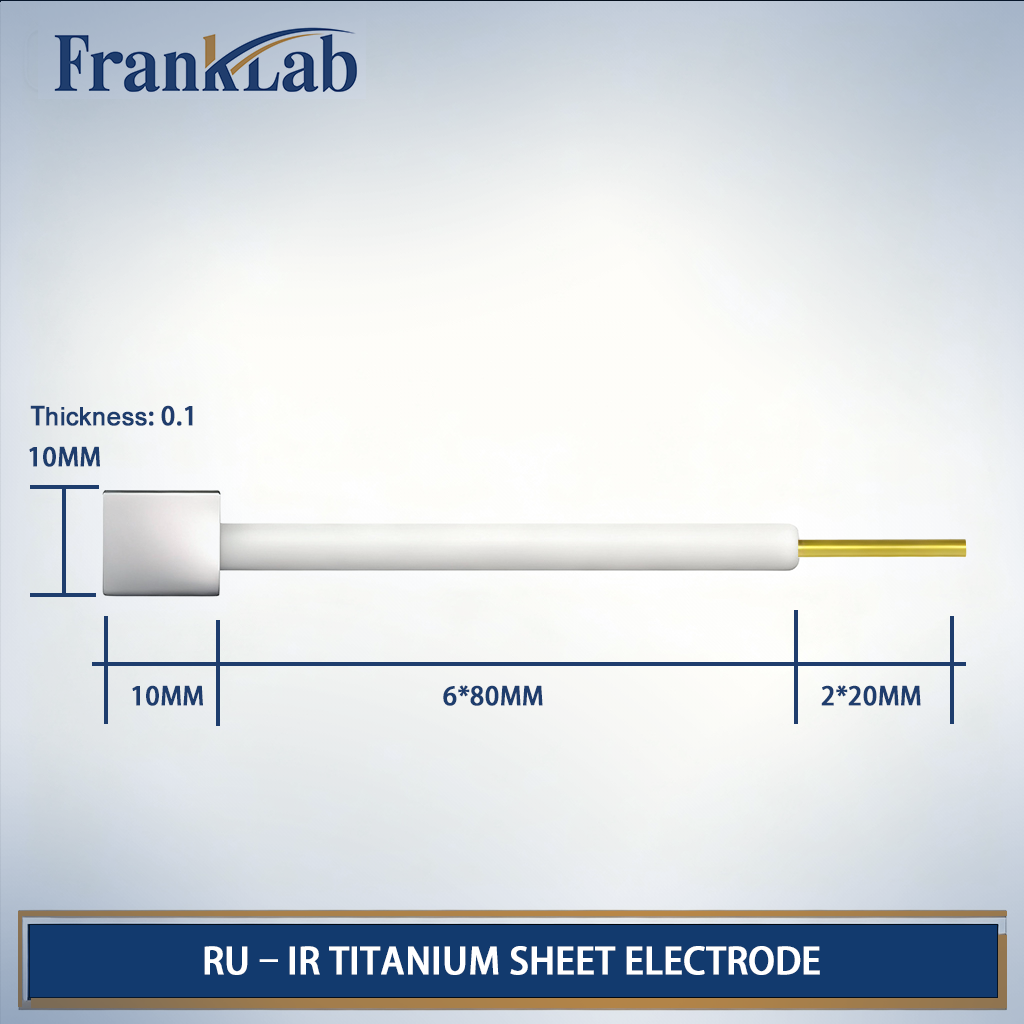

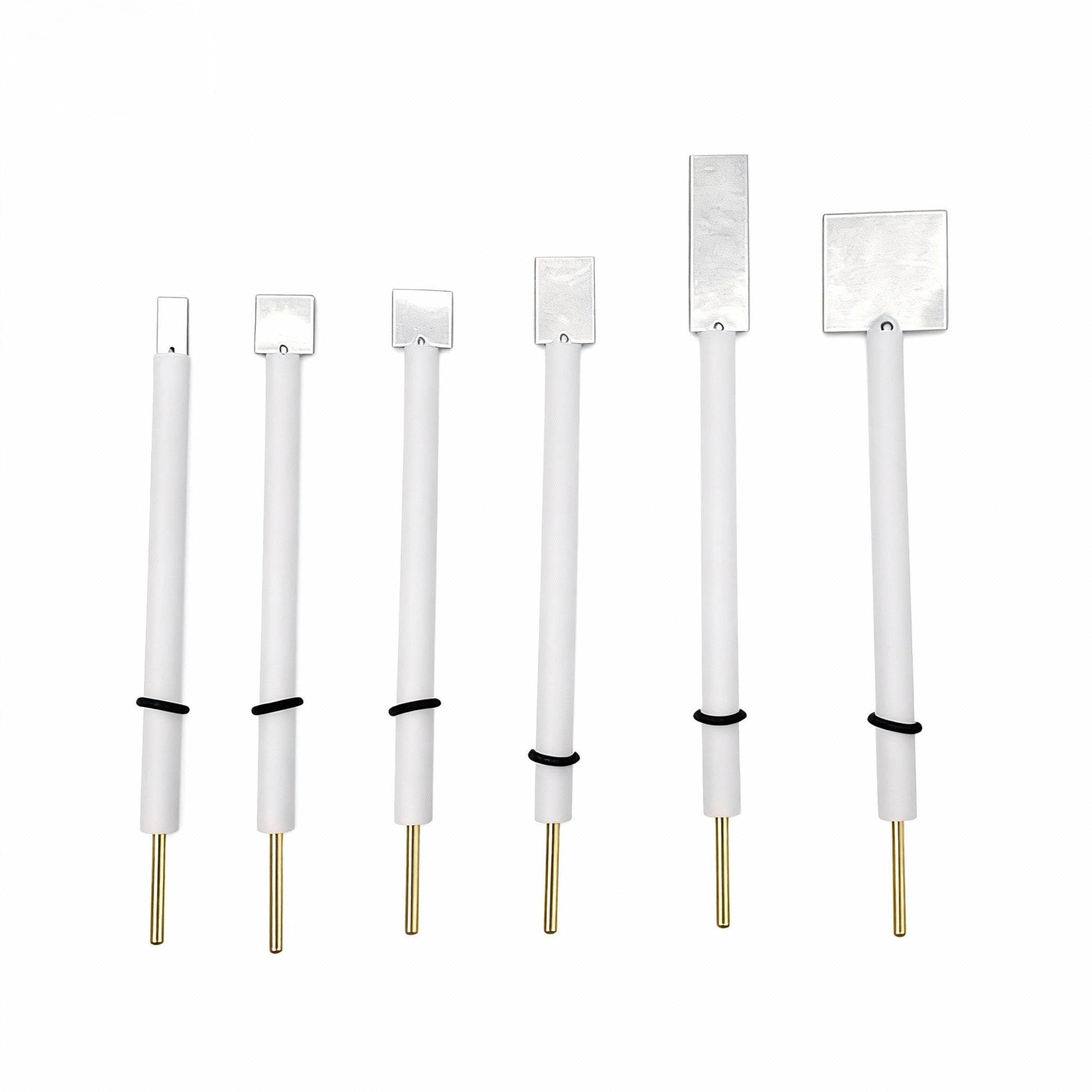

Standard Sizes (Ru–Ir Titanium Sheet Electrode)

(Length × Width × Ti Thickness — coating included)

Small Format

• 10 × 10 × 1 mm

• 10 × 20 × 1 mm

• 15 × 15 × 1 mm

Medium Format

• 20 × 20 × 1 mm

• 20 × 30 × 1 mm

• 25 × 25 × 1 mm

• 30 × 30 × 1 mm

Large Format

• 40 × 40 × 1–2 mm

• 50 × 50 × 1–2 mm

(Custom thickness up to 3 mm available.)

Recommended Applications

Electrocatalysis

• Oxygen evolution reaction (OER)

• Chlorine evolution reaction (CER)

• Electrochemical oxidation of organics

Water Treatment & Disinfection

• Electrochlorination systems

• Wastewater degradation

• Advanced oxidation processes (AOPs)

Industrial Electrolysis

• High-current-density electrochemical reactors

• Acid-resistant anodes

• Brine electrolysis

Research Laboratories

• High-performance anode materials

• Mechanistic OER/CER studies

• Electrode durability testing

Customization Available

FrankLab supports full OEM customization for MMO titanium electrodes:

Customizable Parameters:

• Ru:Ir ratio (higher Ru for CER, higher Ir for OER longevity)

• Coating thickness (1–10+ μm)

• Titanium substrate thickness

• Plate dimensions up to 300 × 300 mm

• Surface roughness & activation treatments

• Pre-drilled holes / geometric shaping

Custom drawing + quotation within 24 hours.

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
