Sample Holder

Sample Holder

PTFE / PEEK · 1 cm² or Custom Area · For Metal, Glassy Carbon, Catalyst Sheets, Membranes

FrankLab Sample Holders are precision-engineered fixtures designed for solid-state electrochemical measurements, allowing researchers to accurately expose a defined geometric area of catalyst sheets, metal foils, electrodes, membranes, and composite materials.

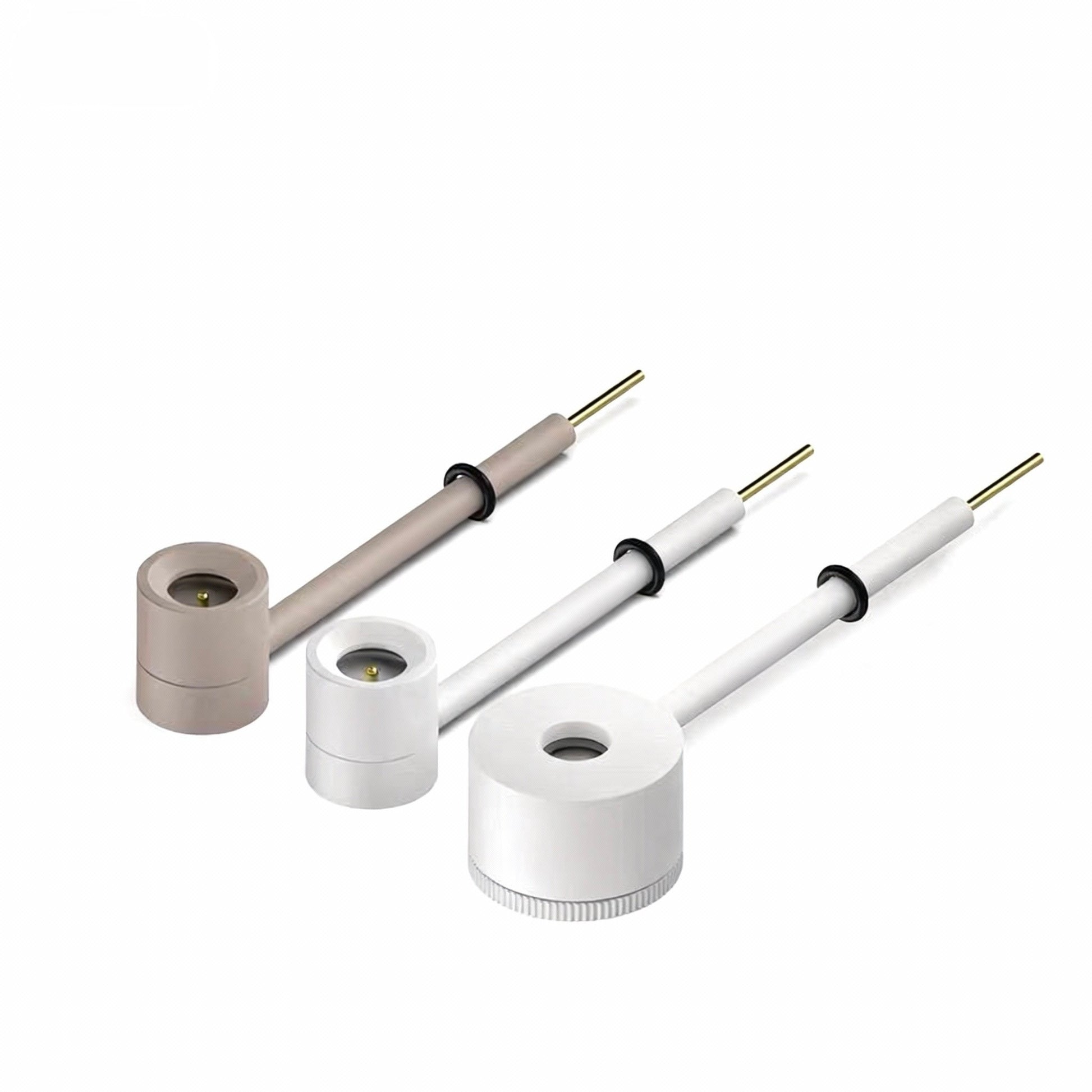

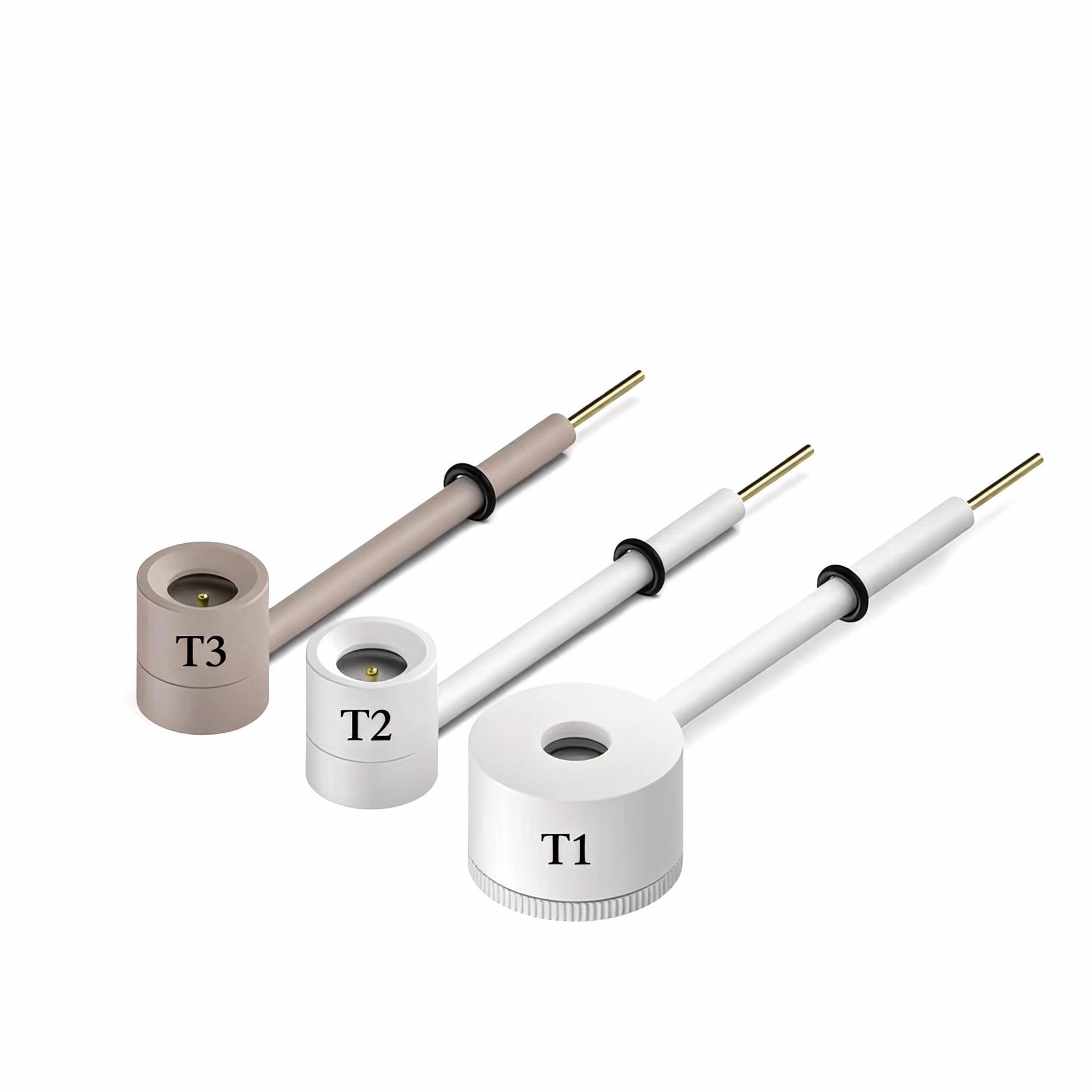

Available in three structural series (T1 / T2 / T3), each model provides different mechanical strength, corrosion resistance, and temperature tolerance to match diverse electrochemical environments.

Series Overview

Key Features

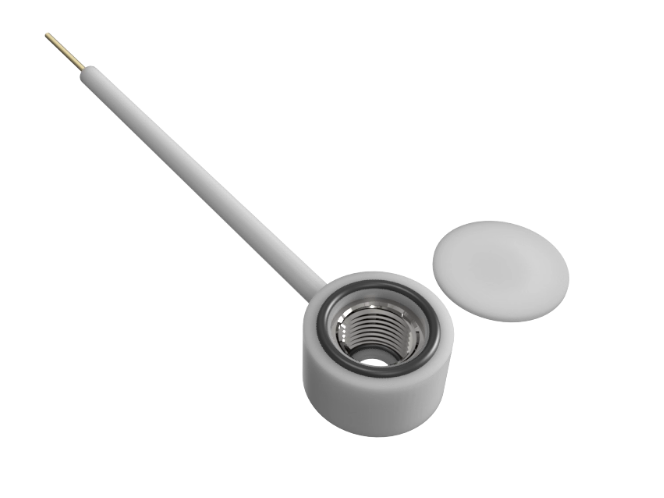

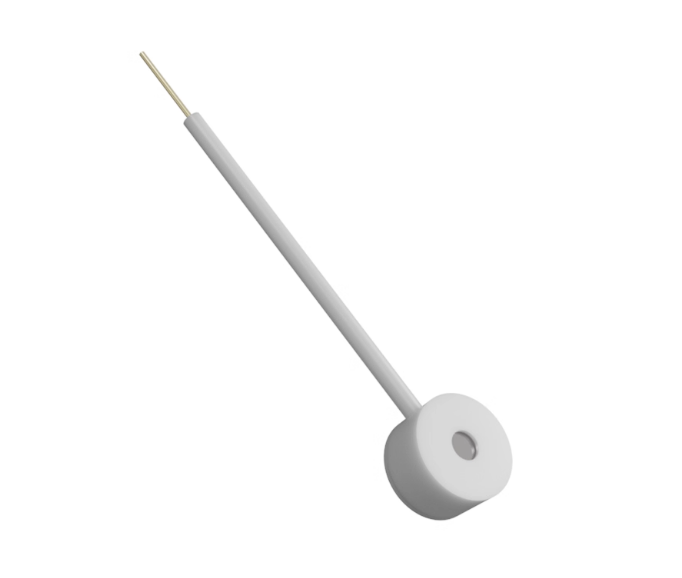

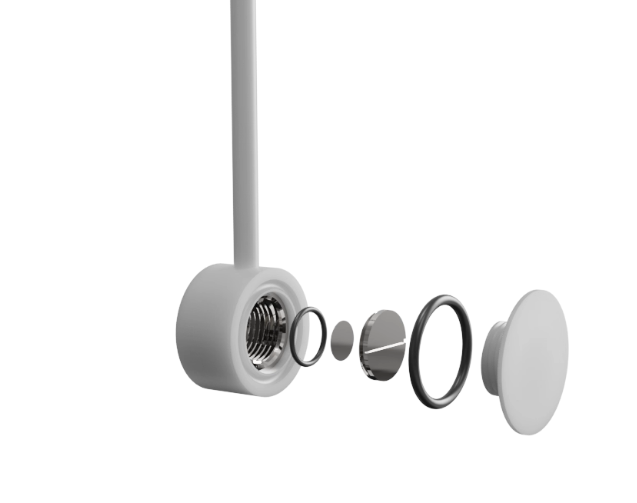

T1 Series — Standard PTFE Sample Holder

· Pure PTFE exterior for excellent corrosion resistance

· Stainless steel screw contact for stable electrical connectivity

· 1 cm² fixed exposed area for consistent electrochemical testing

· Ideal for standard aqueous electrochemical cells

Best for: Entry-level research, CV/LSV/EIS, HER/OER, teaching labs

T2 Series — PTFE Sample Holder with Copper Spring Contact

· PTFE body with upgraded mechanical fit

· Contact pin uses copper with optional spring + shrink tube, improving stability

· Adjustable exposed area, customizable to match sample geometry

· Compatible with circular, square, and irregular sample sheets (custom fixtures available)

Best for: Catalytic activity evaluation, long-term durability tests, corrosion experiments

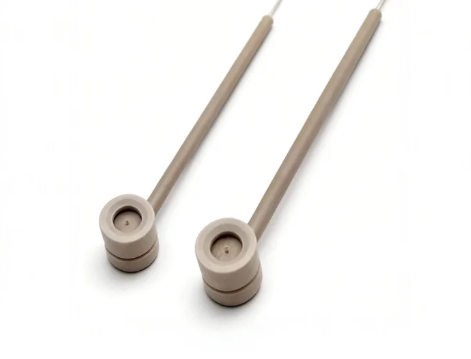

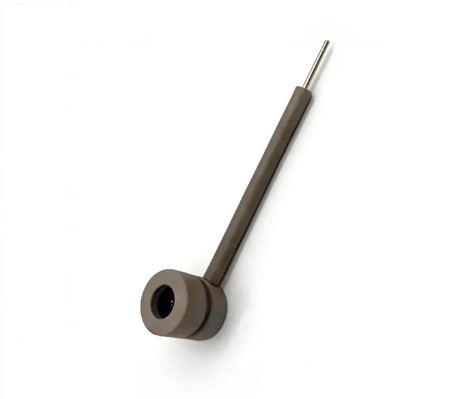

T3 Series — High-Temperature PEEK Sample Holder

· PEEK outer shell for superior strength and high-temperature resistance

· Contact system identical to T2 but reinforced for demanding environments

· Extremely low deformation under heat

· Ideal for organic electrolytes, high-temperature CO₂RR, specialized electrochemistry

Best for: High-end research labs, industrial R&D, aggressive solvents, 80°C operation

Technical Specifications

Materials

· PTFE (T1/T2 models)

· PEEK (T3 model)

· Electrical contact: Stainless steel or copper (spring-loaded)

· Rod connector: Gold-plated / copper optional

Default Dimensions

· Electrode rod: Ø6 mm × 80 mm

· Terminal extension: 20 mm

· Sample chamber: Compatible with Ø14.5–15.5 mm discs (T1)

· T2/T3 customizable sample slots: round / square / rectangular

Temperature Tolerance

· T1 / T2: up to 40°C

· T3: up to 80°C (short-term higher temperature available upon request)

Compatible Sample Types

· Metal foils (Pt, Au, Cu, Ni, Fe, Ti, stainless steel)

· Glassy carbon sheets

· Gas diffusion electrodes (GDEs)

· Catalyst-coated membranes (CCM)

· Carbon papers & carbon cloth

· Sputtered or electrodeposited films

· Ceramic powders pressed into discs

· Polymer membranes and ionomers

Advantages of FrankLab Sample Holders

✔ Defined geometric area for reproducible results

✔ Leak-free sealing structure

✔ Excellent structural stability

✔ Multiple contact options for low resistance

✔ Supports custom area ≥ 0.2 cm²

✔ Compatible with all FrankLab electrochemical cells

Recommended Use Cases

T1Routine experiments, student labs, aqueous systems.

T2Catalyst activity testing, durability evaluation, professional research labs.

T3High-temperature, organic media, aggressive environments requiring strong mechanical stability.

Customization Services

FrankLab provides rapid customization:

· Exposed area shape: round / square / rectangle

· Exposed area size: 0.2–5 cm²

· Sample thickness compatibility: 0.1–5 mm

· High-temperature PEEK up to 150°C

· Logo engraving & serialized coding

· Custom electrode rod or handle length (10–200 mm)

Drawings & quotation delivered within 24 hours.

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
