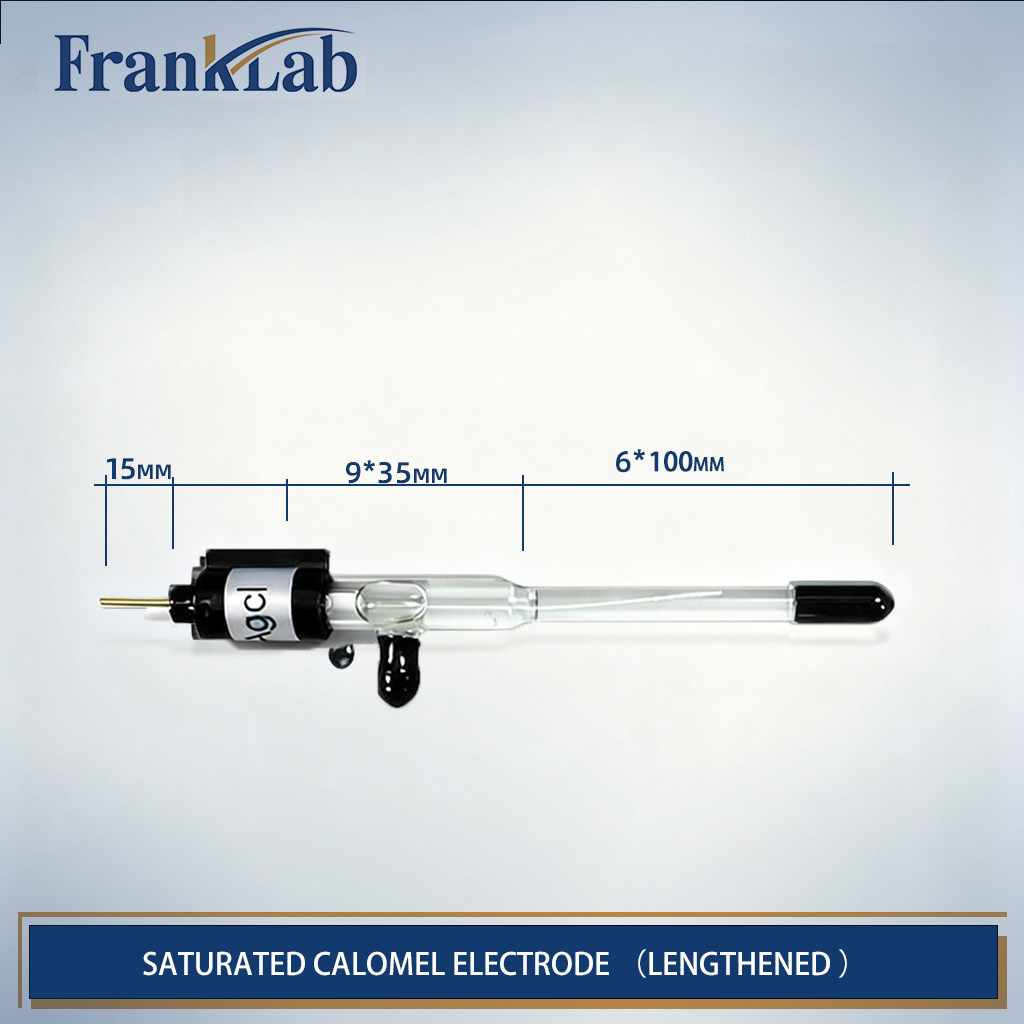

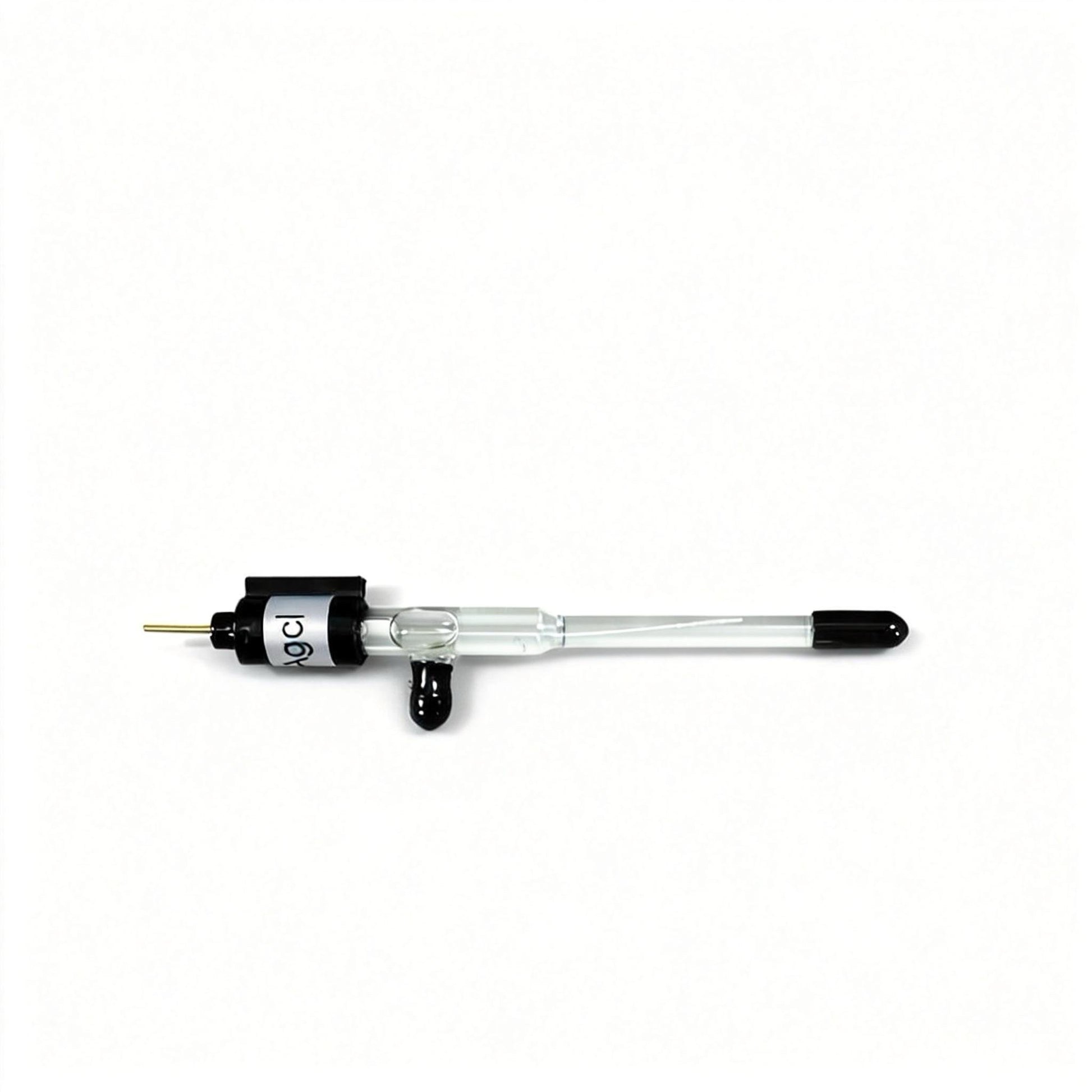

Lengthened Saturated Calomel Reference Electrode, Neutral

Lengthened Saturated Calomel Reference Electrode, Neutral

Product Description
Shipping & Delivery
A Stable, Widely Adopted Reference Standard for Aqueous Electrochemistry
The FrankLab Saturated Calomel Reference Electrode (SCE) is a classic and highly stable aqueous reference electrode based on the Hg/Hg₂Cl₂ (calomel) redox couple in saturated KCl solution. With excellent potential reproducibility, low drift, and robust chemical stability, it remains a benchmark reference for voltammetry, corrosion analysis, electrocatalysis, and kinetic studies.
Engineered for laboratories requiring maximum stability, precision, and reference consistency across long-term experiments.

Key Features

• Highly Stable and Well-Defined Reference Potential

•Standard potential: +0.241 V vs. NHE at 25°C
•Very low drift over time
•Ideal for quantitative kinetic studies and long-duration measurements

• Saturated KCl Internal Electrolyte

•Ensures stable activity of chloride ions
•Provides well-defined and highly reproducible electrode potential
•Fast equilibrium response after immersion

• Robust and Corrosion-Resistant Construction

•Glass body with strong chemical resistance
•PTFE cap for enhanced durability
•Porous ceramic or PTFE junction providing stable ionic conduction

• Low Leakage & Low Noise Performance

•Optimized junction minimizes contamination of the test solution
•Produces highly stable baseline for CV, EIS, and corrosion tests

• Broad Compatibility

•Suitable for almost all aqueous electrochemical systems
•Compatible with FrankLab glass cells, H-type cells, PTFE cells, and PEC cells
•Recommended for corrosion, HER/OER, ORR, and battery half-cell studies

Technical Specifications

Parameter Value
Electrode Type Saturated Calomel Electrode (SCE)
Reference Couple Hg/Hg₂Cl₂
Internal Electrolyte Saturated KCl
Reference Potential +0.241 V vs. NHE (25°C)
Body Material Borosilicate Glass
Cap Material PTFE
Junction Type Porous ceramic / PTFE
Length ~65–100 mm (depending on model)
Diameter ~6–9 mm
Operating Temperature 0–50°C (Calomel limit)
Storage Solution Saturated KCl
Expected Lifetime 6–12 months under proper use

Usage Notes & Safety

• Temperature Limit ≤ 50°C

SCE contains mercury; operating above 50°C can cause potential drift and internal pressure risks.

• Never use in non-aqueous solvents

Chloride exchange can produce large potential errors; use via salt bridge if non-aqueous tests are required.

•Avoid oxidizing environments

Strong oxidizers may degrade the calomel system.

• Store in saturated KCl

Maintains junction hydration and prevents drift.

• Complies with laboratory mercury handling standards

Follow standard disposal and environmental safety protocols.

Typical Applications

•High-precision cyclic voltammetry (CV) and linear sweep voltammetry (LSV)
•Electrochemical impedance spectroscopy (EIS)
•Corrosion and polarization curve studies (Tafel / E–log i)
•Electrocatalyst performance evaluation in aqueous electrolytes
•Battery material testing and redox chemistry mechanistic studies
•Teaching laboratories requiring stable reference standards
