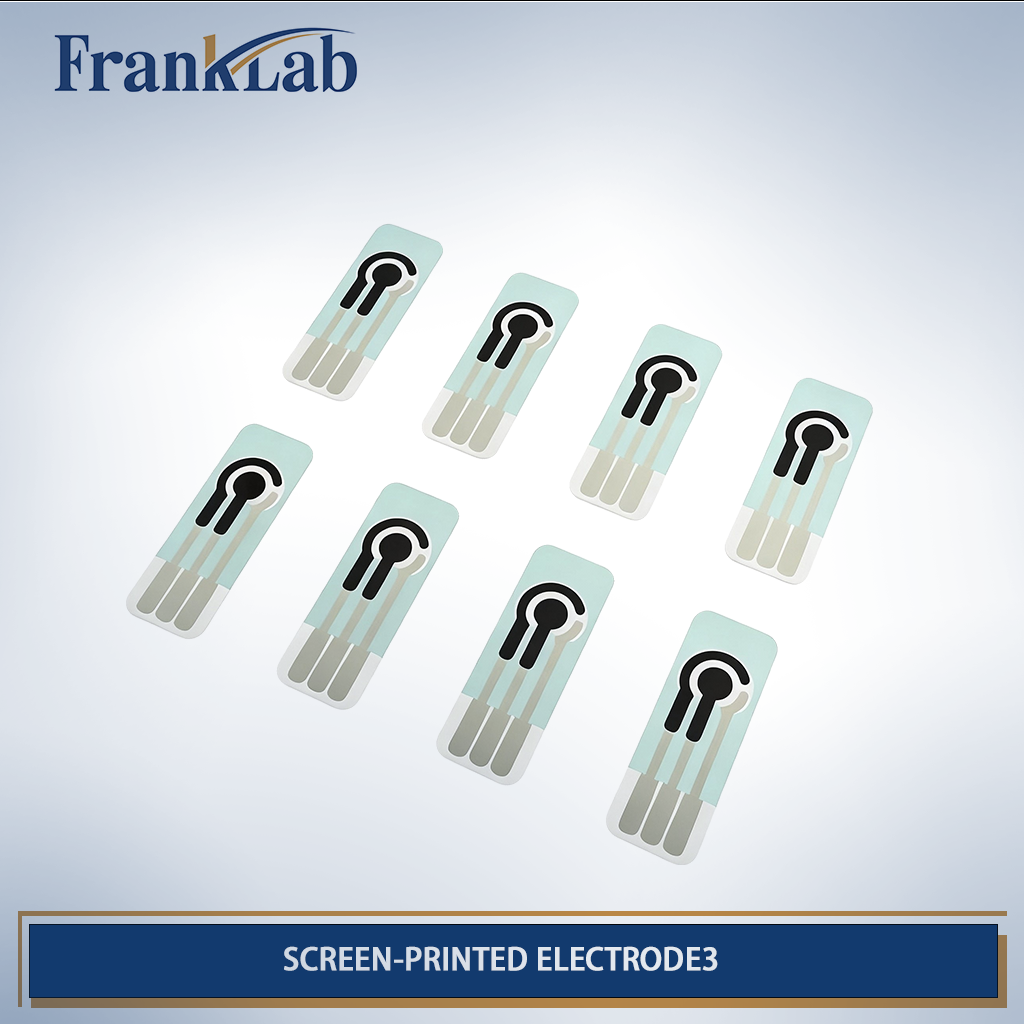

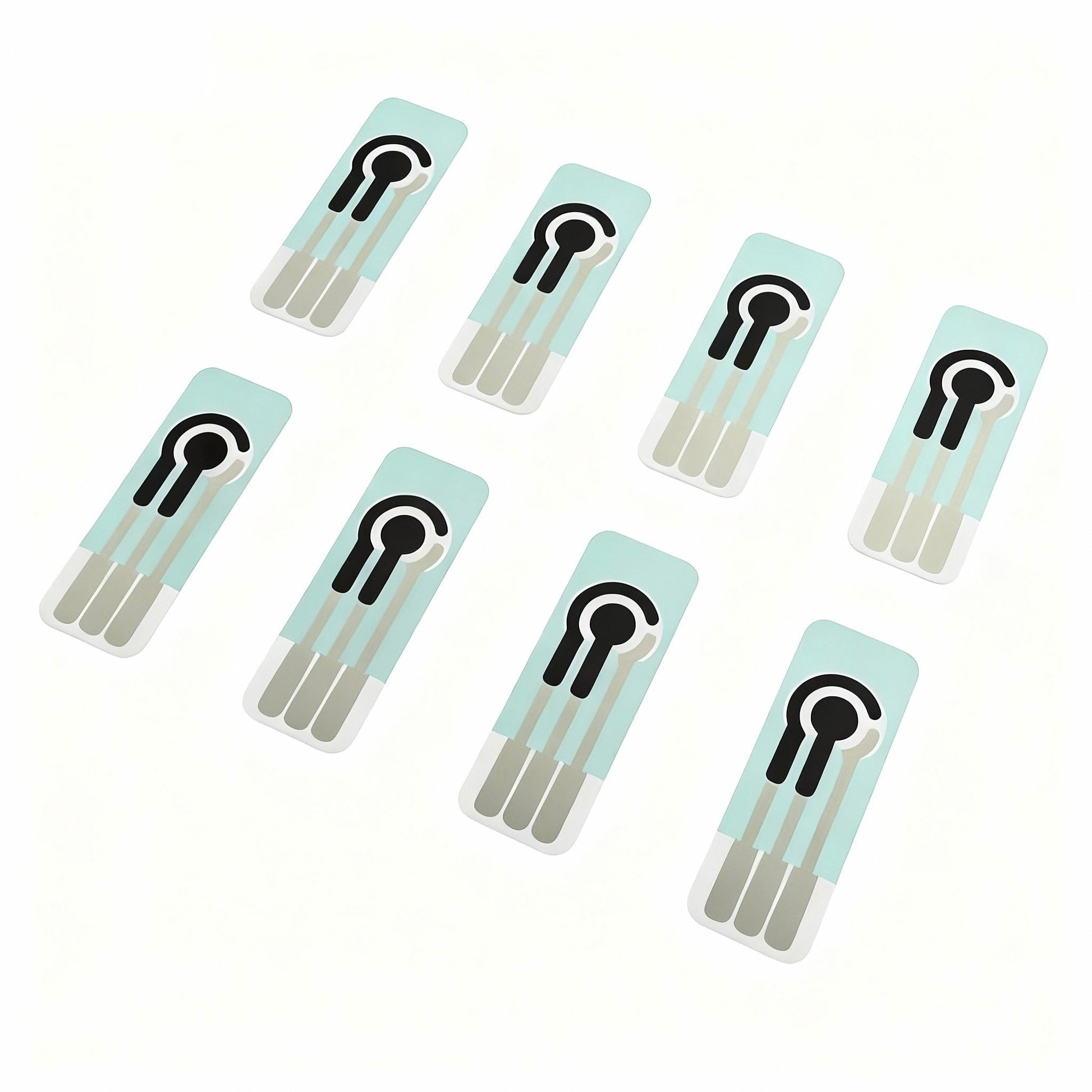

Screen-Printed Carbon Electrode (SPCE) – Disposable Electrochemical Sensor

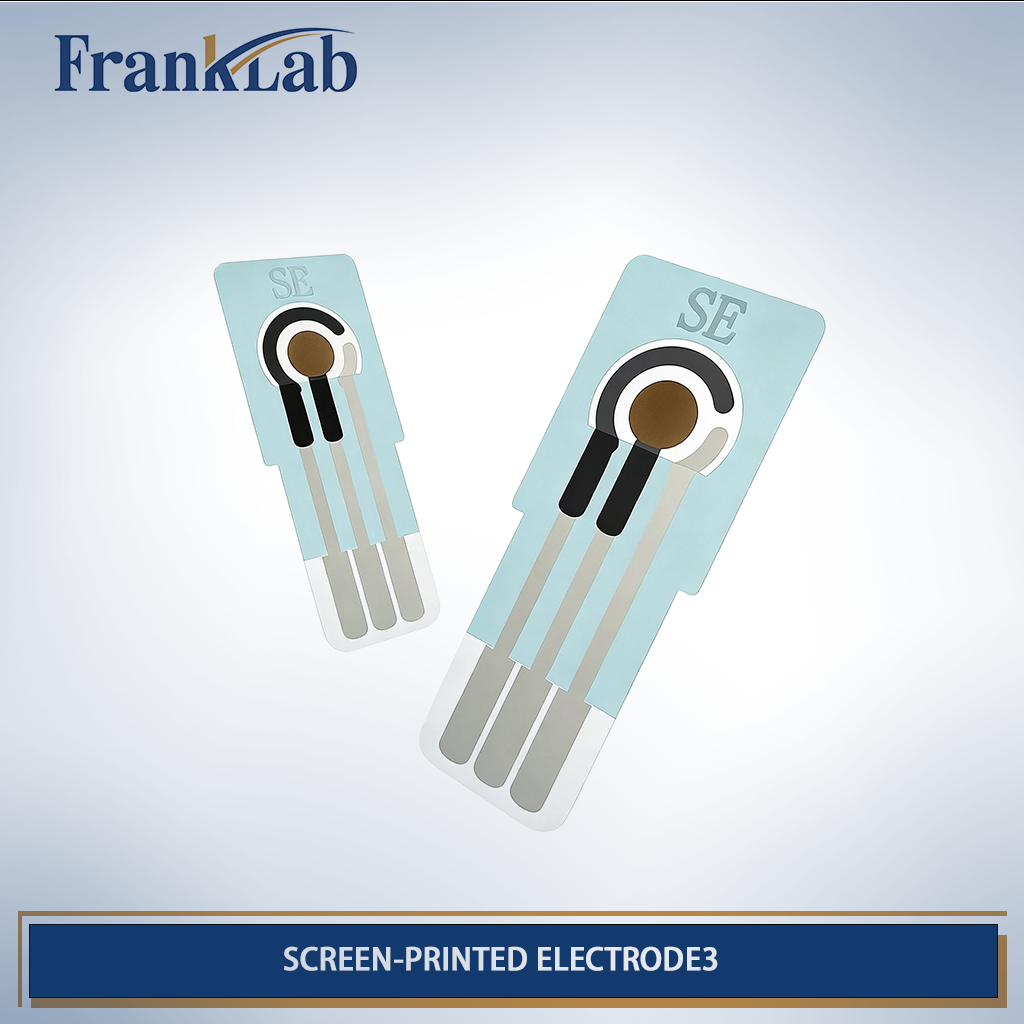

Screen-Printed Carbon Electrode (SPCE)
Disposable Electrochemical Sensor Platform for Research
Product Overview

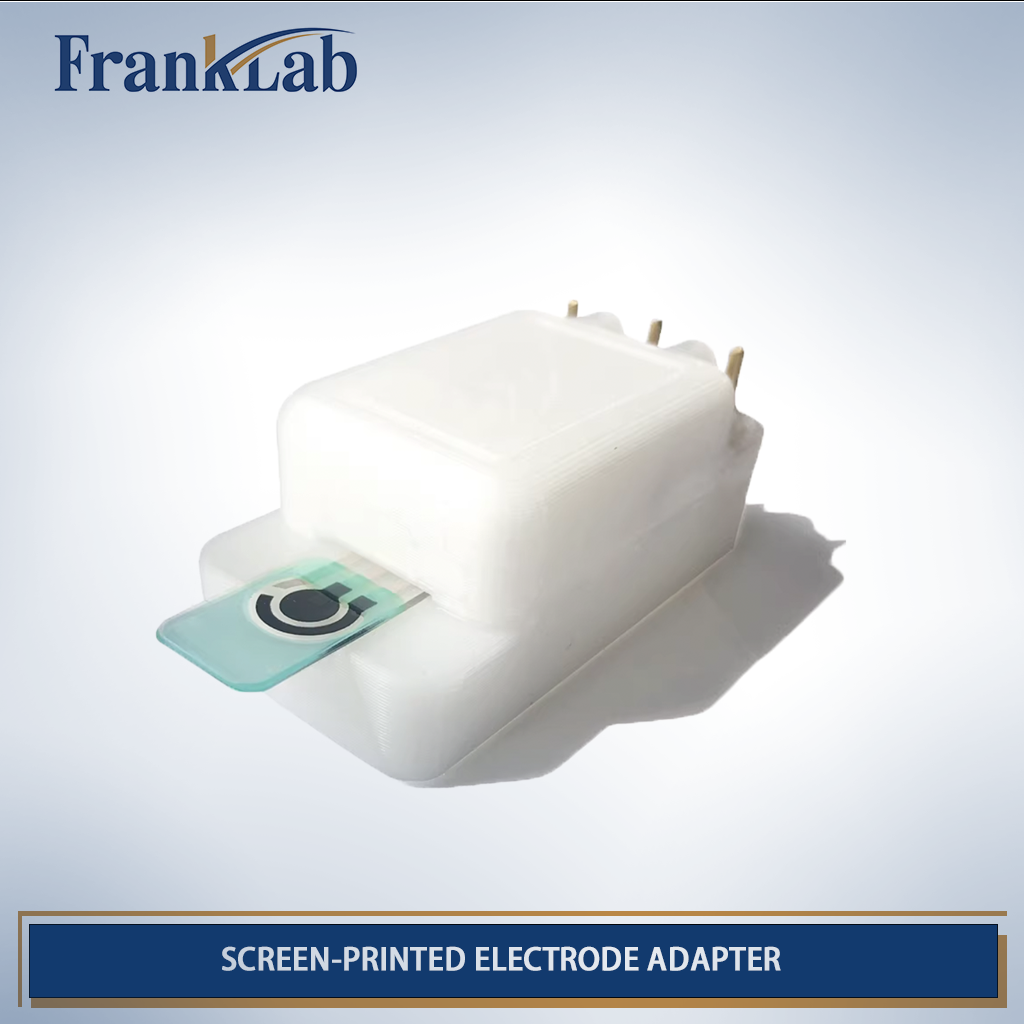

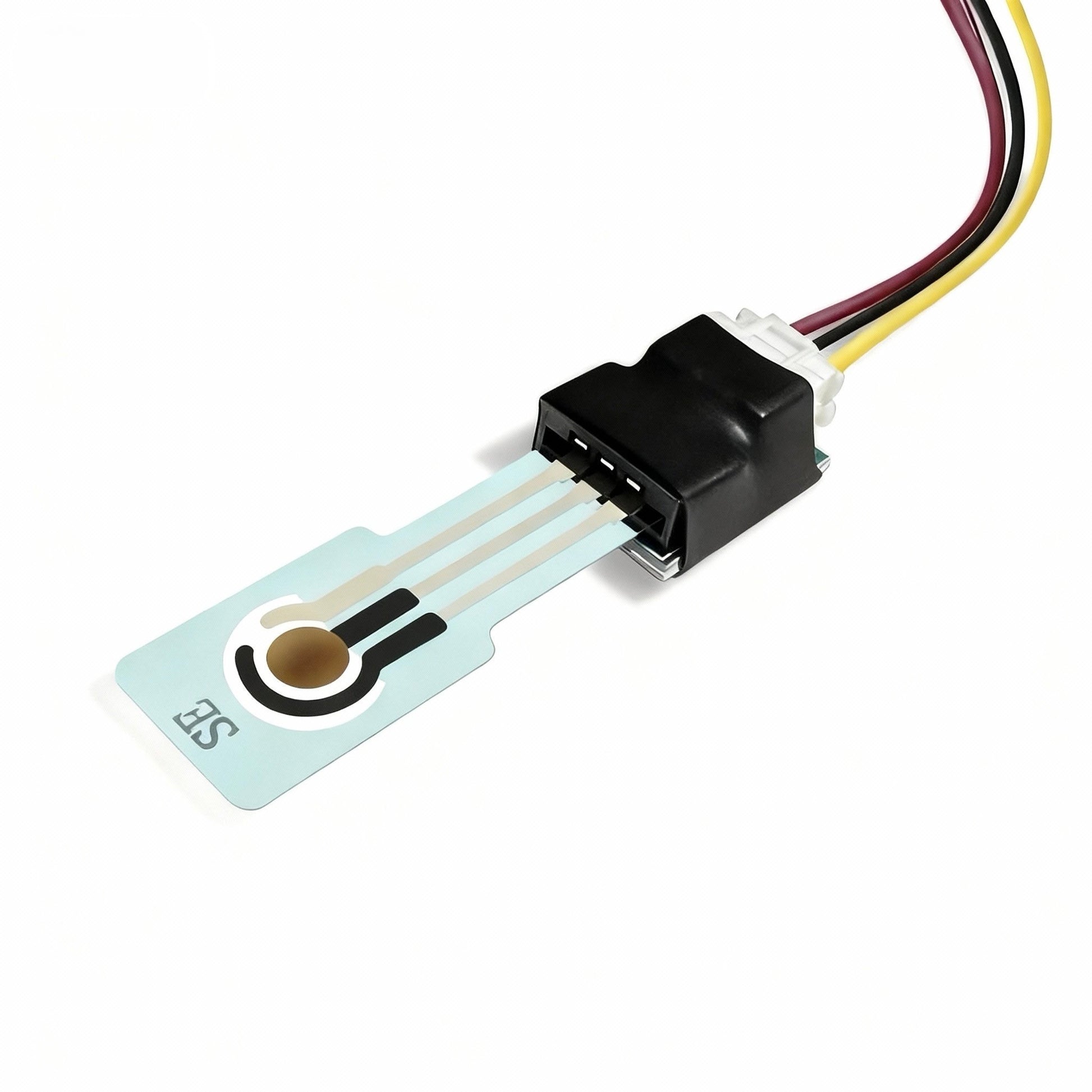

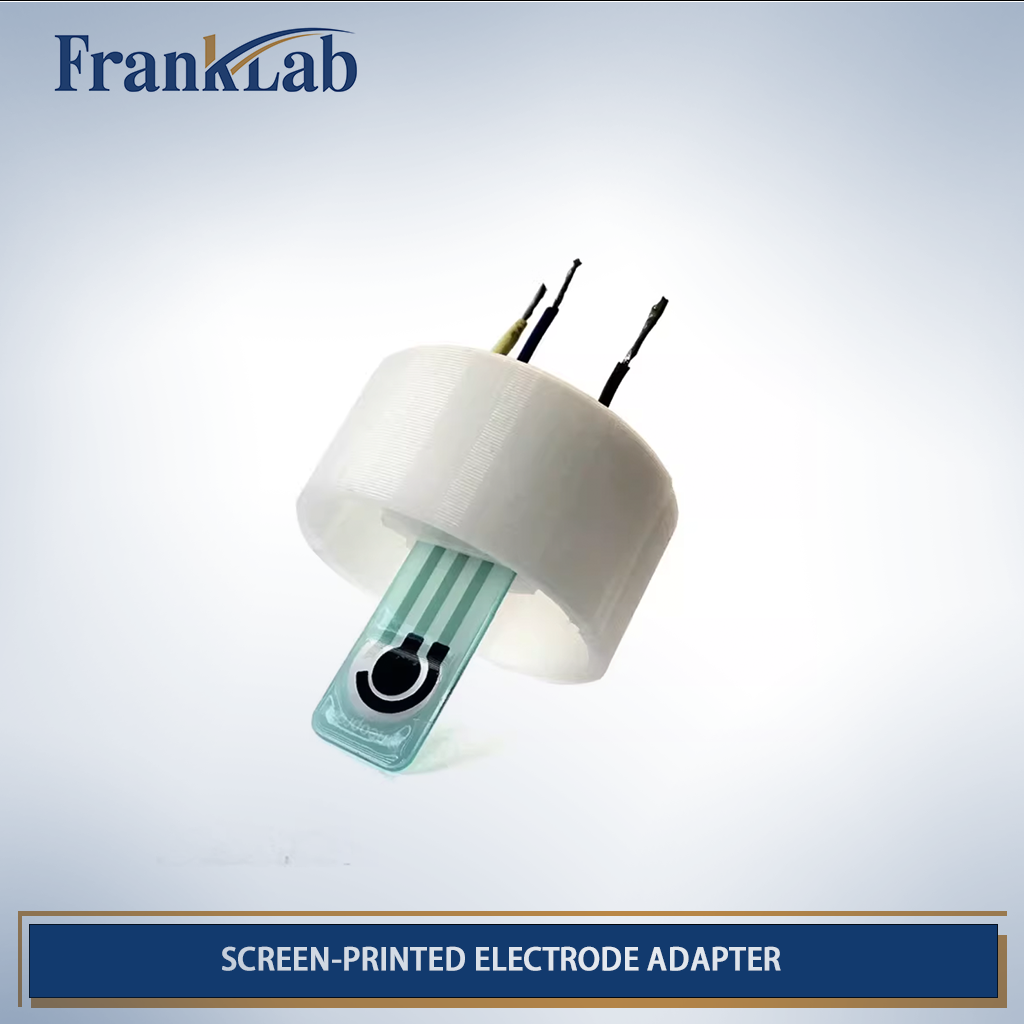

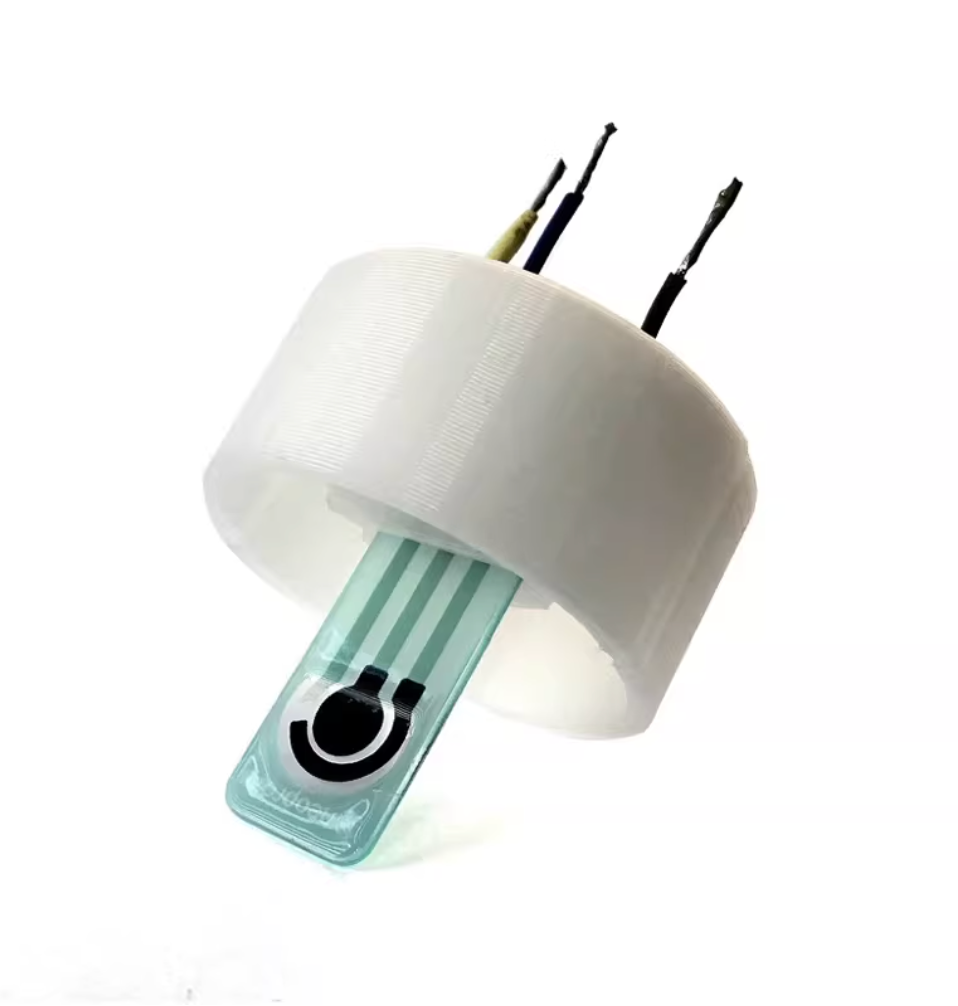

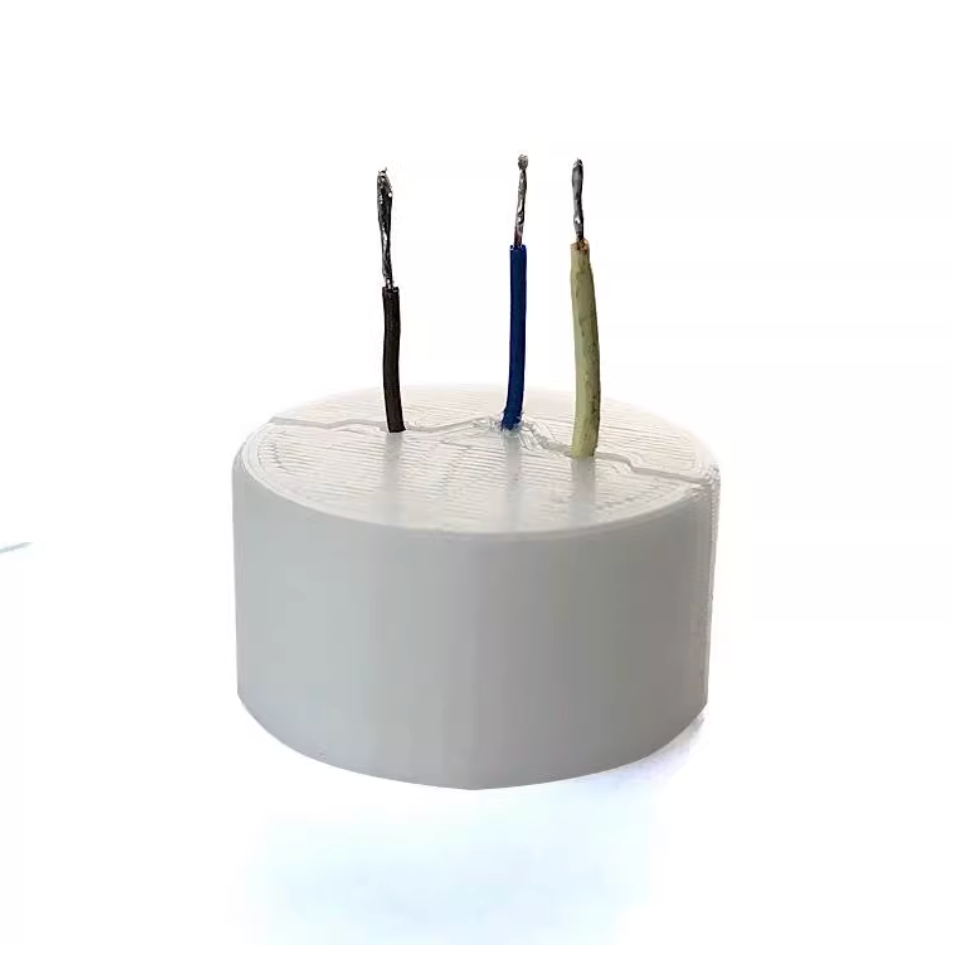

The Screen-Printed Carbon Electrode (SPCE) is a compact electrochemical sensor platform designed for rapid and accurate detection of biomolecules and chemical analytes. The electrode adopts a plug-in electrochemical detection design, allowing it to function as a standard research-grade electrochemical sensing platform.
Screen-printing technology enables highly reproducible electrode fabrication with excellent batch consistency. It also supports scalable manufacturing while significantly reducing production costs, making SPCEs ideal for laboratory research, biosensing applications, and electrochemical analysis.

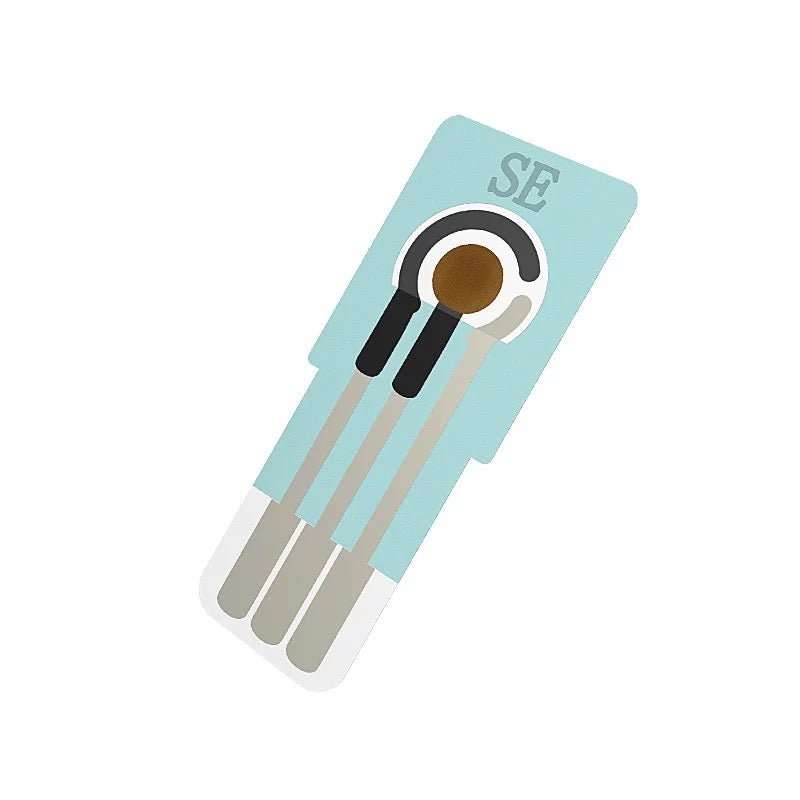

This disposable sensor integrates a three-electrode electrochemical system, including a carbon working electrode, carbon counter electrode, and Ag/AgCl reference electrode.
Key Features
•High reproducibility of electrode materials
•Excellent batch-to-batch consistency
•Scalable screen-printing manufacturing technology
•Cost-effective disposable electrode platform
•High sensitivity and fast electrochemical response
•Suitable for multiple analyte detection after surface modification

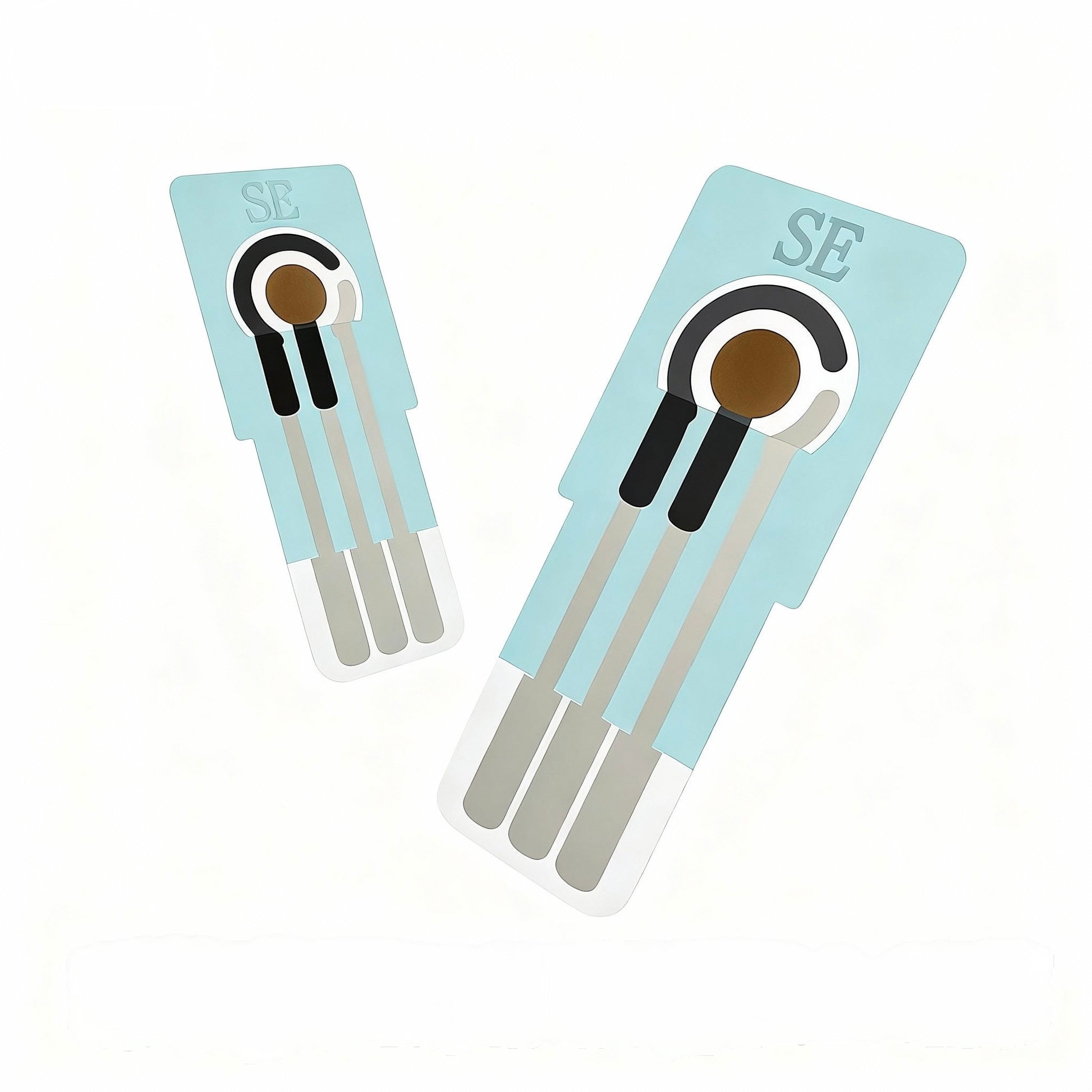

•Custom electrode shapes available
•Compatible with external electrochemical workstations
Technical Specifications
|
Parameter |
Specification |
|
Substrate Material |
PET |
|
Substrate Thickness |
0.28 mm |
|
Working Electrode Material (WE) |
Carbon |
|
Working Electrode Diameter |
5 mm |
|
Counter Electrode Material (CE) |
Carbon |
|
Reference Electrode Material (RE) |
Ag/AgCl |
Electrode Configuration
The sensor adopts a three-electrode electrochemical system integrated on a single substrate.
|
Electrode |
Material |
|
Working Electrode (WE) |
Carbon |
|
Counter Electrode (CE) |
Carbon |
|
Reference Electrode (RE) |
Ag/AgCl |
Product Type
•Electrochemical Sensor
•Biosensor Platform
Typical Applications
This screen-printed electrode is widely used in:
•Electrochemical sensing research
•Biosensor development
•Biomolecule detection
•Environmental monitoring
•Food safety analysis
•Molecular detection
•Electrochemical laboratory experiments
Storage Conditions
|
Item |
Condition |
|
Storage Temperature |
Room temperature (~20°C) |
|
Light Exposure |
Store away from direct light |
|
Packaging |
Aluminum foil sealed bag |
|
Shelf Life |
6 months |
|
Humidity |
50% RH ± 20% RH |
