Franklab
Sealed Double-Layer Water Bath Electrochemical Cell
Sealed Double-Layer Water Bath Electrochemical Cell
Regular price
$89.00 USD
Regular price
Sale price
$89.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Description
Product Overview

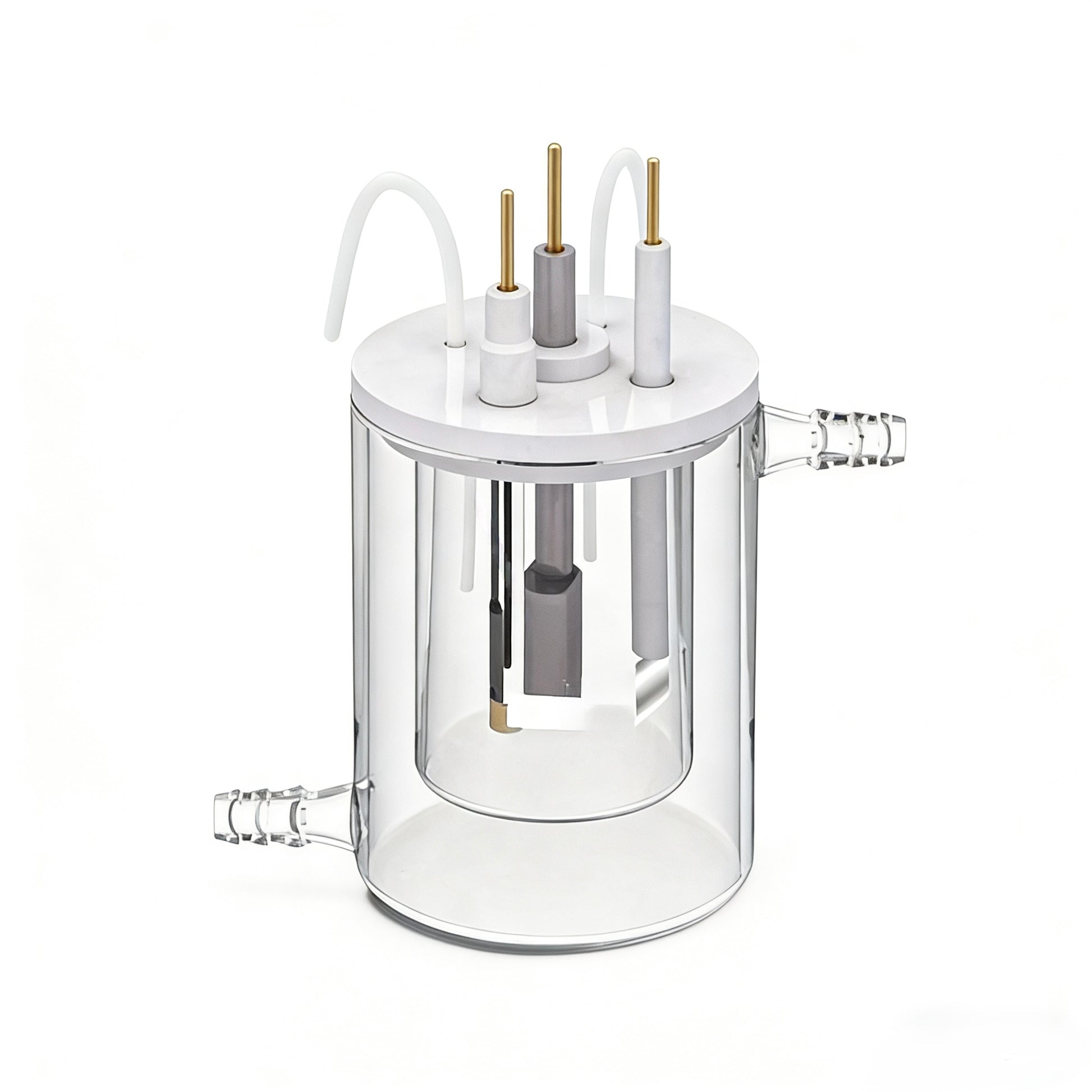

The FrankLab Non-Sealed Double-Layer Water Bath Electrochemical Cell is a temperature-controlled electrochemical reaction vessel designed for experiments that require precise thermal regulation, easy electrode access, and non-pressurized operation.

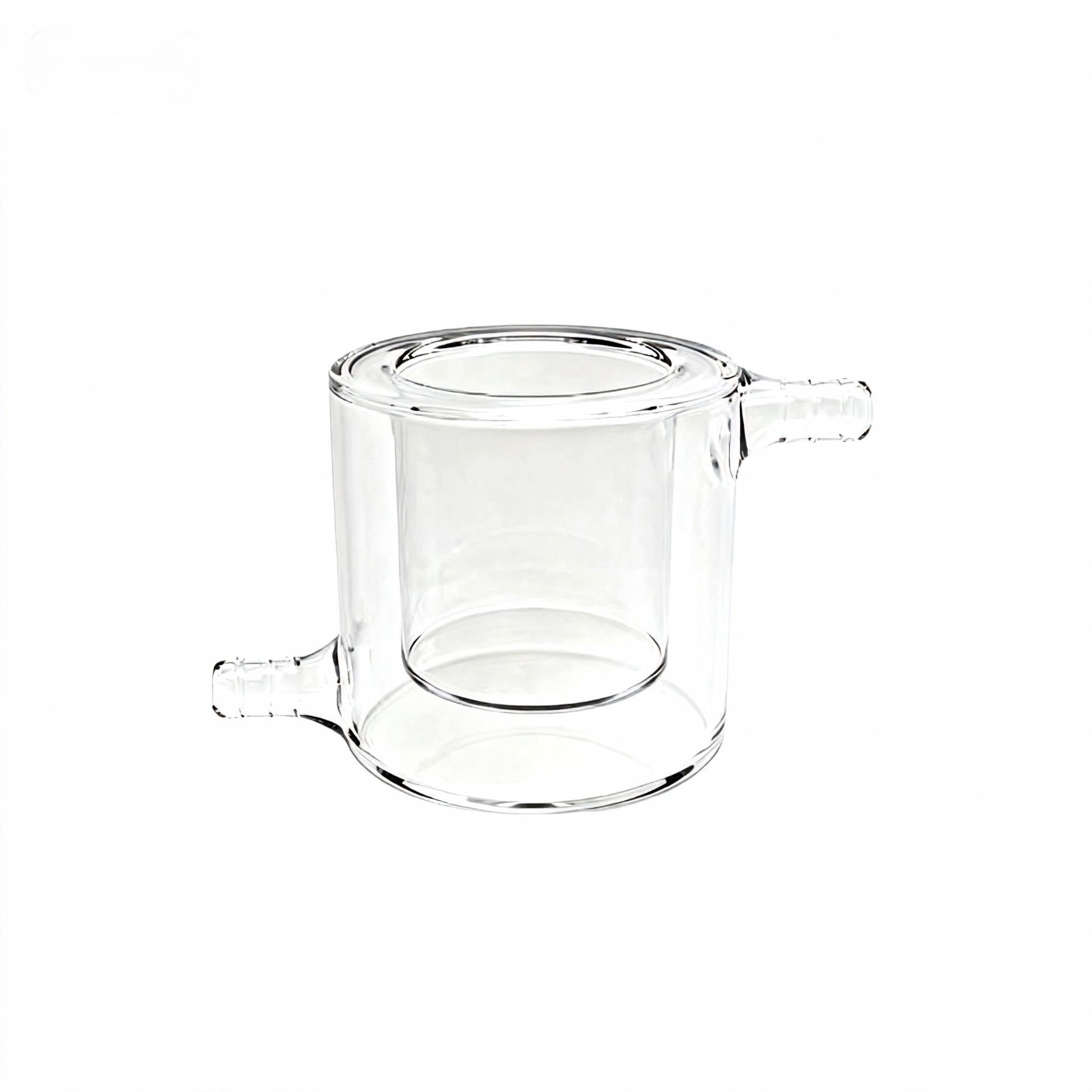

Featuring a double-jacket glass structure, this cell allows external circulation of thermostatic fluid (water or oil), ensuring uniform temperature distribution throughout the electrolyte during electrochemical measurements.
This design is widely adopted for electrocatalysis screening, electrodeposition, corrosion testing, battery research, and long-duration electrochemical experiments.
Product Versions
1. Single-Layer Version
•Single glass chamber
•Open / non-sealed operation
•PTFE screw lid with electrode ports
•Suitable for ambient-pressure experiments
✔ Best choice for routine electrochemical testing and teaching laboratories
-
Double-Layer Water Bath Version
Includes everything in the Single-Layer Version, plus:
•External double-layer water jacket
•Inlet & outlet ports for thermostatic circulation
•Significantly improved thermal stability
•Reduced temperature gradients near electrode surfaces
✔ Best choice for temperature-sensitive kinetics, stability tests, and long-time electrolysis
Technical Specifications
| Parameter | Value |
| Cell type | Non-sealed, double-layer water bath |
| Available volumes | 30 / 50 / 100 / 150 / 200 / 250 / 300 / 500 / 1000 mL |
| Cell material | High-borosilicate glass |
| Lid material | PTFE (PEEK optional) |
| Port configuration | 3 electrode ports + optional gas ports |
| Electrode port size | 6 mm (standard) |
| Gas port size | 3 mm (optional) |
| Temperature range | Ambient to 60 °C |
| Heating method | External circulating water bath |
| Pressure rating | Atmospheric pressure (non-sealed) |
| Visual observation | Fully transparent |
Key Features
• Double-Layer Water Jacket Design
External circulation provides:
•Stable and uniform temperature control
•Improved experimental reproducibility
•Ideal conditions for kinetic and durability studies
• Open, Non-Sealed Configuration
•Easy electrode insertion and replacement
•Fast electrolyte exchange
•Simple cleaning and maintenance
•No pressure buildup during operation
• Full Three-Electrode Support
Compatible with:
•Working electrode: GC / Pt / Au / metal plates or rods
•Counter electrode: Pt wire / mesh
•Reference electrode: Ag/AgCl, Hg/HgO, SCE
Custom lids available for RDE shafts or special electrode geometries.
• Modular & Customizable
Port number, position, and size can be customized to match:
•Gas purging
•Electrolysis
•Sampling
•Special electrode holders
Applications
•Electrocatalysis screening
•CV / LSV / EIS measurements
•Electrodeposition
•Corrosion testing
•Battery half-cell studies
•Temperature-dependent reaction kinetics
•Long-duration electrolysis experiments
Differences Between Single-Layer & Double-Layer Versions
| Feature | Single-Layer | Double-Layer |
| Temperature control | Limited | Excellent |
| External circulator | — | ✔ |
| Thermal uniformity | Medium | High |
| Long-term stability | Medium | High |
| Recommended for kinetic studies | — | ✔✔✔ |
Package Contents
•Borosilicate glass electrochemical cell body
•PTFE screw lid
•Electrode port fittings
•O-ring sealing set
Electrodes, reference electrodes, and circulating bath are sold separately.
Customization Options
Available upon request:
•Volume scaling beyond standard sizes
•PEEK lids for higher mechanical strength
•Additional gas inlet/outlet ports
•RDE-compatible lids
•Matching electrode holders and clamps
•Integration with FrankLab sealed or super-sealed systems
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
Why Choose FrankLab?
FrankLab electrochemical cells are designed by electrochemists, for electrochemists. We emphasize:
•Clean Geometry
•Chemical Reliability
•Experimental Reproducibility
•Compatibility with Real Research Workflows
Used by universities, national labs, and industrial R&D teams worldwide.
• FrankLab Technical Note
This product is intended for temperature-controlled, non-pressurized electrochemical experiments. For gas-tight reactions such as CO₂RR, N₂ reduction, isotope labeling, or volatile electrolyte systems, please refer to:
•Micro Sealed Electrochemical Cells
•Five-Port Sealed Electrochemical Cells
•Large-Volume Sealed Electrochemical Reactors
FrankLab Quality Commitment
Every cell is individually inspected, dimension-checked, and batch-validated before shipment.
Need CAD drawings, port customization, or a full electrode + cell matching? FrankLab engineering support responds within 24 hours.
