Sealed Electrochemical Cell [30ml-1000ml]

Product Description
Shipping & Delivery

Product Overview

The FrankLab Sealed Electrochemical Cell is a fully enclosed electrochemical reactor engineered for controlled-environment electrochemical experiments, where gas isolation, electrolyte stability, and experimental reproducibility are critical.
With a gas-tight sealing structure and modular electrode access, this cell is ideal for long-term electrolysis, gas-involved reactions, and sensitive mechanistic studies. The wide capacity range from 30 mL to 1000 mL supports both small-scale screening and extended performance testing.

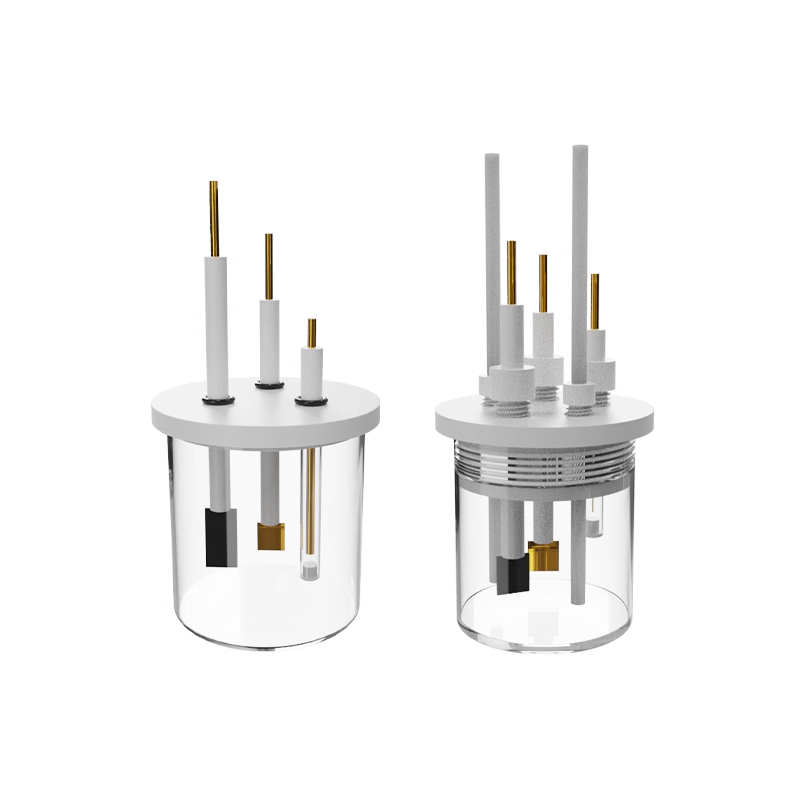

Cell Design & Structure

• Fully sealed electrochemical cell body
• Modular PTFE sealing system
• Independent electrode and gas ports
• Stable geometry for reproducible measurements
✔ Designed for clean, controlled electrochemical environments

Available Capacities

(Single-cell volume options)

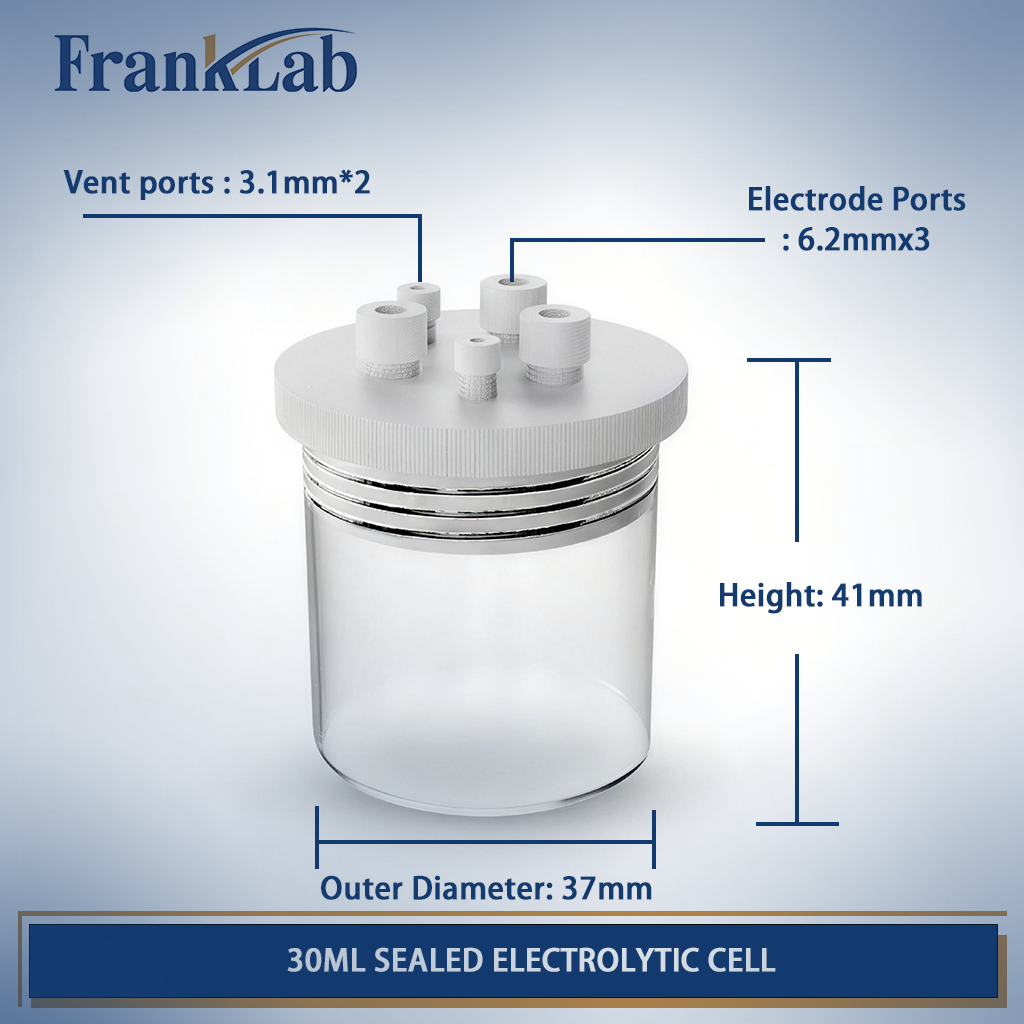

• 30 mL
• 50 mL
• 100 mL
• 150 mL
• 200 mL
• 250 mL
• 300 mL

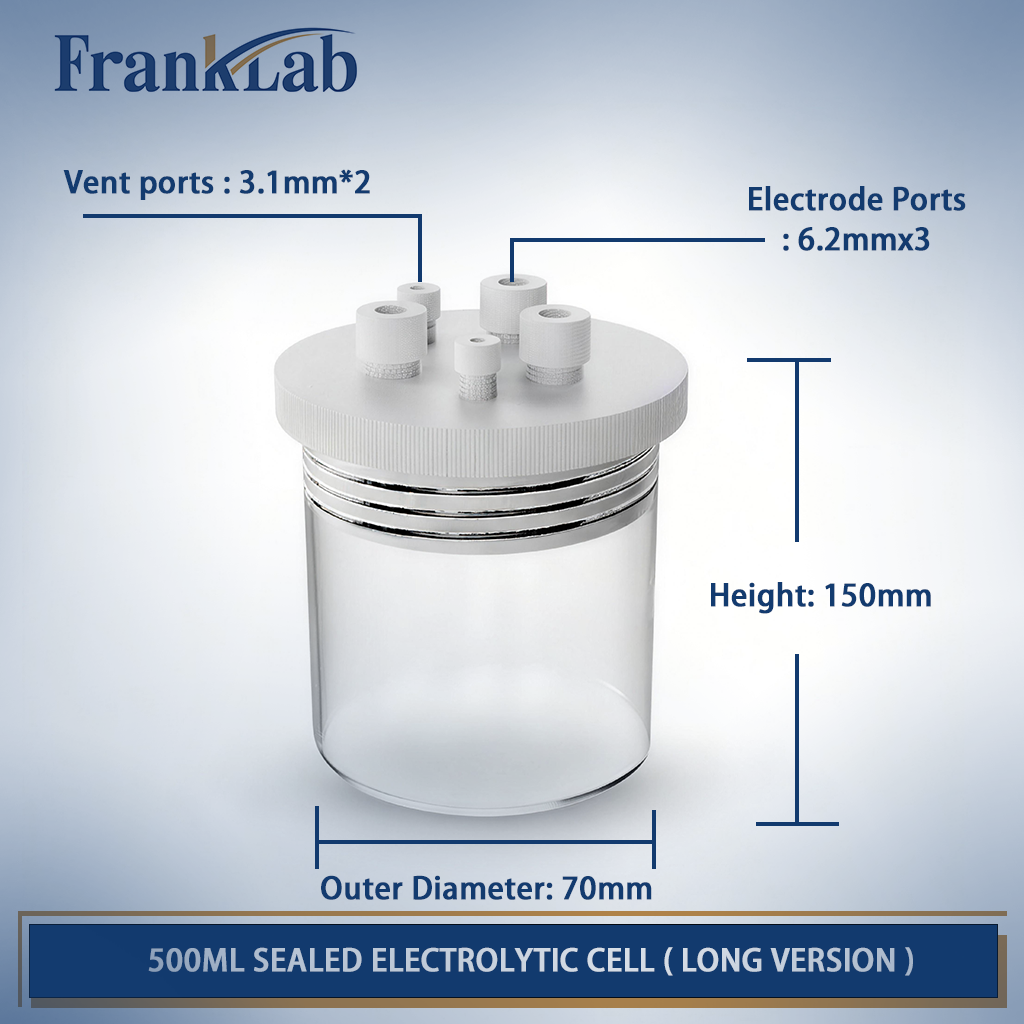

• 500 mL
• 1000 mL
Custom capacities and configurations are available upon request.

Technical Specifications

Parameter Specification
Cell type Sealed electrochemical cell
Body material High-purity borosilicate glass
Sealing method PTFE caps with chemical-resistant O-rings
Electrode ports Working / Counter / Reference
Gas ports Gas inlet & outlet
Operating pressure Atmospheric to low-pressure
Temperature compatibility Room temperature to moderate heating*
Chemical resistance Acidic, alkaline, and common organic electrolytes

*Temperature limits depend on electrolyte and sealing configuration.

Key Features

Gas-Tight Sealed Design
Prevents air ingress and electrolyte evaporation, ensuring stable electrochemical conditions during long-term experiments.

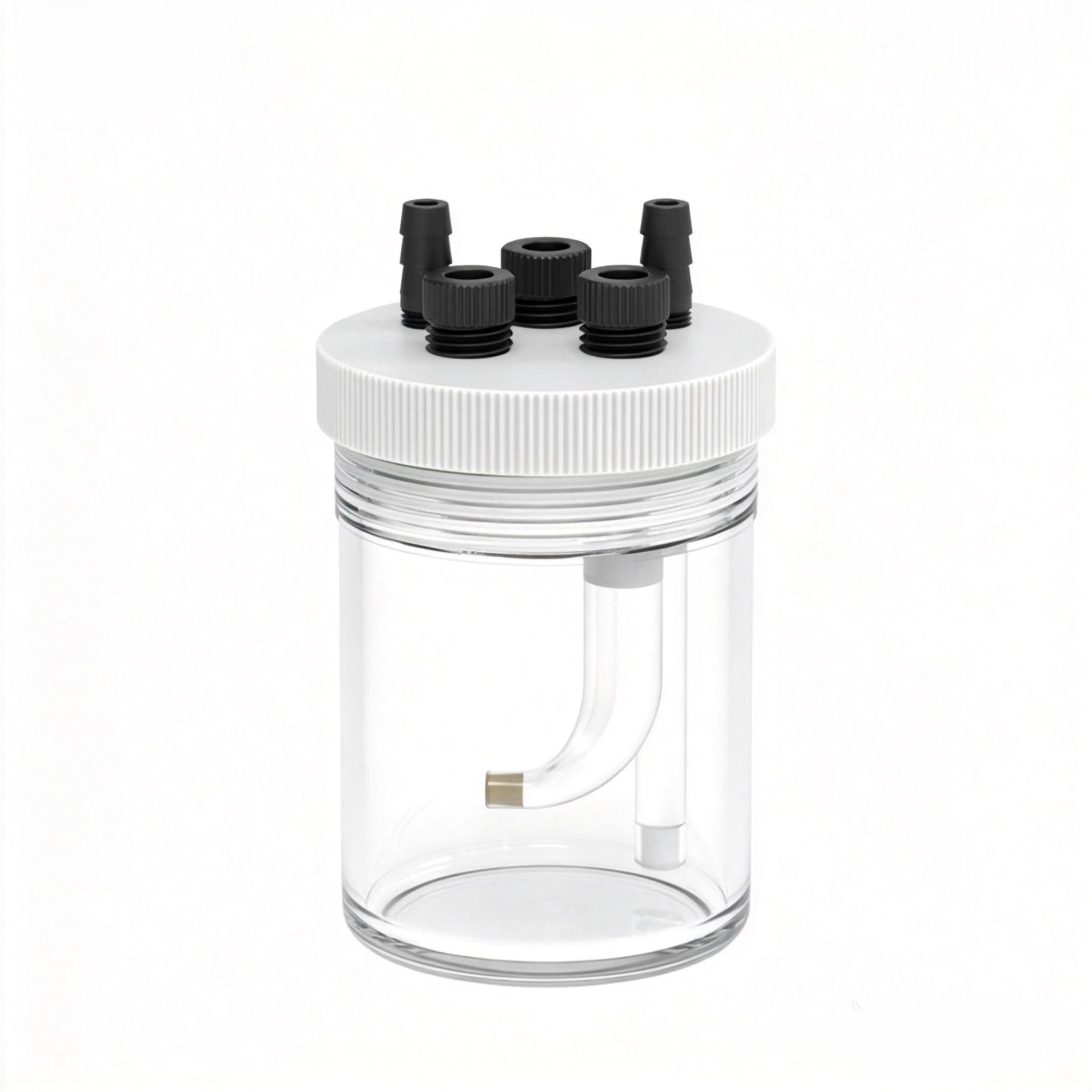

Independent Atmosphere Control
Dedicated gas inlet and outlet ports allow controlled purging with CO₂, Ar, N₂, O₂, or other reaction gases.

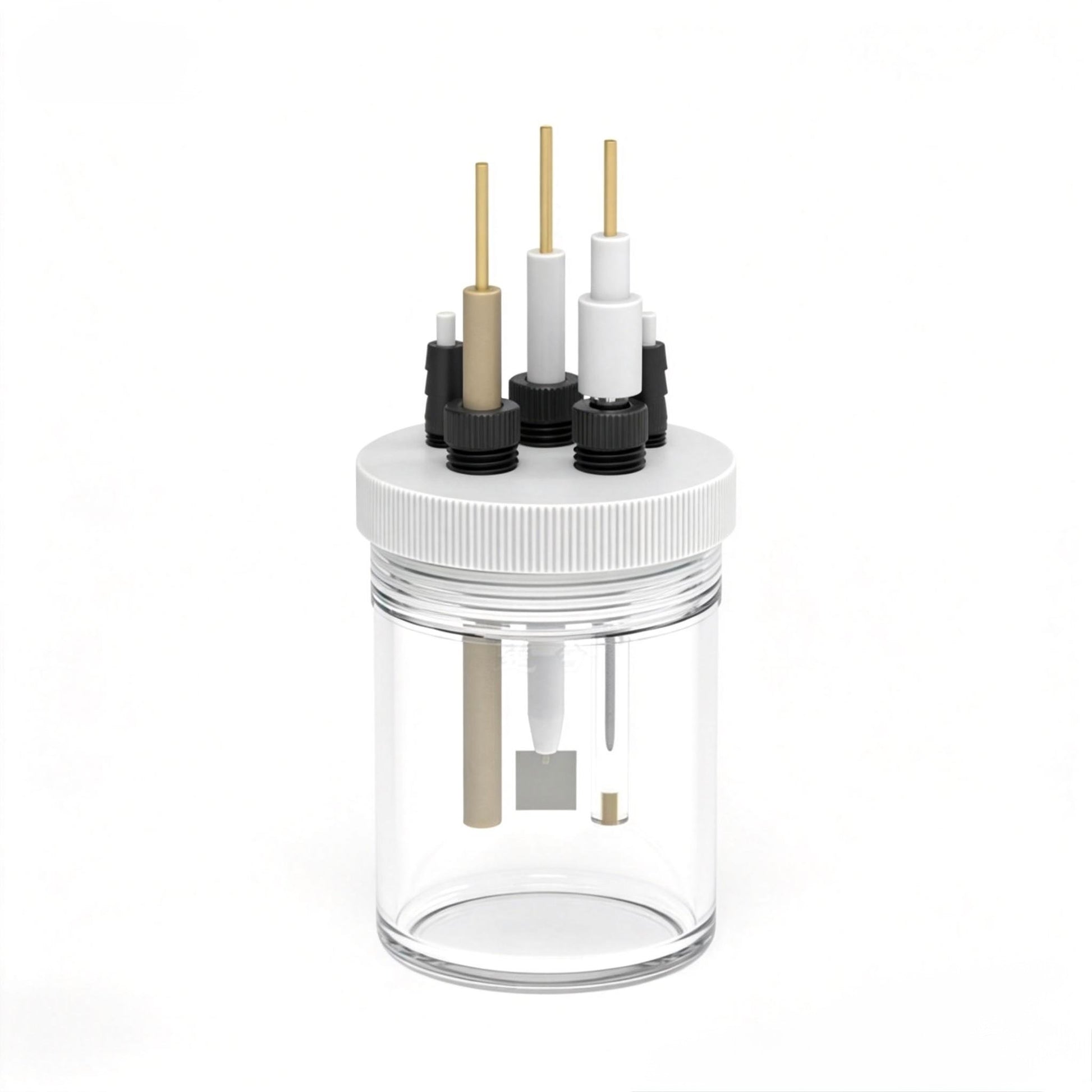

Broad Electrode Compatibility
Supports common laboratory electrodes including:
• Platinum, gold, and other metal electrodes
• Glassy carbon rods or plates
• Ag/AgCl, Hg/HgO, SCE reference electrodes
Modular & Easy Maintenance
The cell can be fully disassembled for cleaning, component replacement, and configuration changes.

Typical Applications

• CO₂ reduction reaction (CO₂RR)
• Water electrolysis & hydrogen evolution
• Oxygen evolution reaction (OER) studies
• Gas–liquid electrochemical interfaces
• Battery and redox chemistry research
• Long-duration stability testing

Standard Package Contents

• Sealed glass electrochemical cell body
• PTFE sealing caps
• Electrode port screws
• Gas inlet/outlet fittings
• Chemical-resistant O-rings
Electrodes are not included by default.

Optional Customization

Available upon request:
• Custom cell volumes
• Additional or modified electrode ports
• High-temperature sealing materials
• Integrated electrode holders
• Pre-configured gas fittings

For Custom Orders or Technical Support

If you have custom requirements or need assistance selecting the right configuration, please contact us:
support@franklab.shop


Why FrankLab

FrankLab electrochemical cells are designed by electrochemists, for electrochemists.
We focus on:
• Clean geometry
• Chemical reliability
• Experimental reproducibility
• Compatibility with real laboratory workflows
Trusted by universities, research institutes, and industrial R&D teams worldwide.
