Silver Sheet，>99.99% | Electrochemical & Research Grade
Silver Sheet，>99.99% | Electrochemical & Research Grade
Regular price
$65.00 USD
Regular price
Sale price
$65.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Description
Product Overview

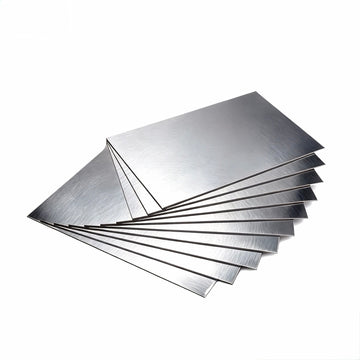

FrankLab high-purity Silver Sheet (>99.99%) is manufactured from refined metallic silver with excellent electrical conductivity, chemical stability, and surface uniformity. It is widely used in electrochemistry, catalysis, battery research, sensors, and material science experiments, as well as in custom electrode fabrication and laboratory prototyping.
All silver sheets are precision-cut, flat, and clean, suitable for direct laboratory use or further processing such as polishing, coating, laser cutting, or electrode assembly.
Key Features
•Ultra-high purity: ≥ 99.99% (4N) Silver
•Excellent electrical conductivity and electrochemical stability
•Smooth surface finish, low defect density
•Good ductility and machinability
•Suitable for electrode plates, current collectors, reference components
•Compatible with acidic, neutral, and alkaline environments (application-dependent)
Available Sizes
Standard Sheet Sizes
•25 × 25 mm
•50 × 50 mm
•100 × 50 mm
•100 × 100 mm
Other dimensions available upon request.
Available Thickness Options
•0.01 mm
•0.05 mm
•0.08 mm
•0.10 mm
•0.20 mm
•0.30 mm
•0.40 mm
•0.50 mm
Thickness tolerance and flatness can be customized for research-grade requirements.
Technical Specifications
| Parameter | Specification |
| Material | Silver (Ag) |
| Purity | ≥ 99.99% |
| Form | Sheet / Plate |
| Surface | Rolled / Flat (polished optional) |
| Electrical Conductivity | ~6.30 × 10⁷ S·m⁻¹ |
| Density | 10.49 g·cm⁻³ |
| Melting Point | 961.8 °C |
| Standard | Research / Laboratory grade |
| Packaging | Clean, sealed, individual protection |
Typical Applications
•Electrochemical electrodes (Ag working or counter electrodes)
•CO₂ reduction (CO₂RR) and electrocatalysis studies
•Battery and fuel cell research
•Sensors and conductive substrates
•Reference electrode components
•Thin-film deposition targets (cutting source)
•Material science and surface modification experiments
Customization Options
We support full customization for research and industrial users:
•Custom dimensions & thickness
•Surface polishing (mirror / roughened)
•Pre-cut electrode shapes (round, square, slots, holes)
•Laser cutting / CNC machining
•Bulk supply for institutes & pilot lines
•OEM labeling & project-based supply
Tell us your experiment type + size + environment, and we will recommend the optimal configuration.
Quality & Supply Assurance
•Strict raw material traceability
•Each batch available with material specification confirmation
•Suitable for academic research, national labs, and industrial R&D
•Stable long-term supply for repeat projects
Packaging & Delivery
•Individual vacuum or clean packaging
•Protective interlayers to prevent scratching
•Global shipping available
•Short lead time for standard sizes
Need a different metal or form?
We also supply Gold, Platinum, Iridium, Titanium, Indium, Nickel, Copper, and custom alloys in sheet, wire, foil, rod, granule formats.
Contact FrankLab for datasheets, quotations, or technical consultation.
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
Why Choose FrankLab?
FrankLab Focused on electrochemical & research materials
•Stable quality for repeatable experiments
•Flexible customization capability
•Trusted by universities, institutes, and industrial R&D labs
