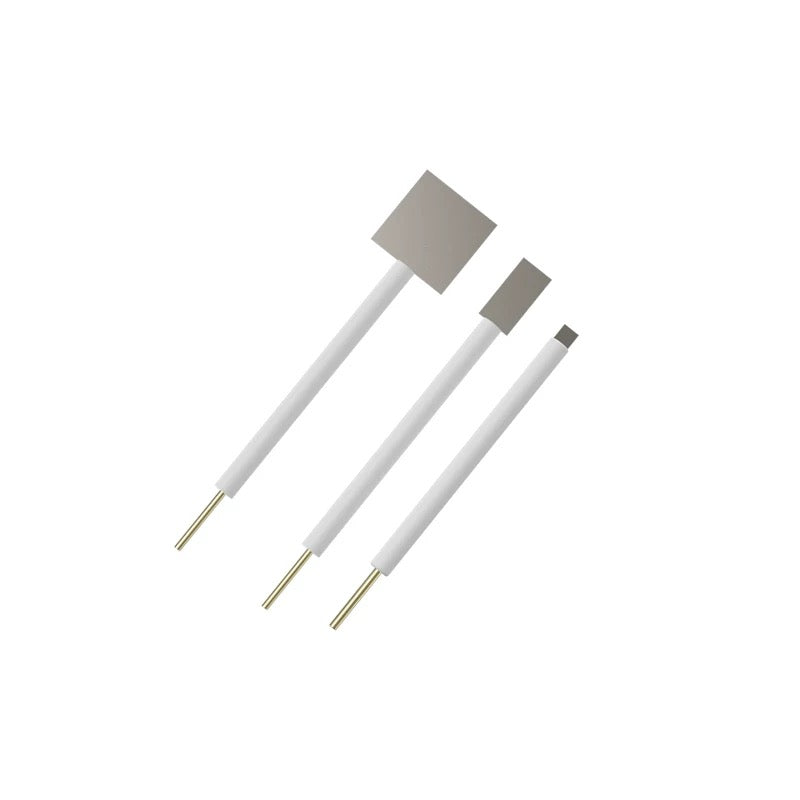

Silver Sheet Electrode

Silver Sheet Electrode

Product Description
Shipping & Delivery
Silver Sheet Electrode | High-Purity Ag Plate | FrankLab
99.9–99.99% Purity · Excellent Conductivity · Ideal for Electrochemistry, Sensors & Materials Research

Product Overview
The FrankLab Silver Sheet Electrode is a high-purity metallic Ag plate designed for a wide range of electrochemical and analytical applications. With exceptional electrical conductivity, high chemical reactivity toward halides, and stable redox behavior, silver sheet electrodes are used extensively in:
• Reference electrode formation (Ag/AgCl)
• Ion-selective sensors
• Electrochemical kinetics studies
• Conductivity and plating experiments
• Material science & catalysis research
FrankLab supplies silver sheets in multiple dimensions and thicknesses, all manufactured from high-purity Ag (≥99.9% or ≥99.99% upon request) for precise and reproducible performance.

Key Features
• High Purity Silver (Ag ≥ 99.9% / 99.99%)
• Ensures consistent electrochemical potential
• Suitable for Ag/AgCl reference electrode preparation
• Low impurity levels → stable background current

• Exceptional Electrical Conductivity
Silver is the most conductive metal, providing:
• Low resistance
• Fast charge transfer
• High signal sensitivity
Ideal for electroanalysis, sensors, and kinetics studies.

• Chemically Active but Predictable Surface
Silver forms stable surface species in:
• Chloride-containing electrolytes (AgCl formation)
• Bromide/iodide systems
• Photochemical reactions
This makes Ag plates valuable for mechanism studies and controlled surface chemistry.

• Smooth, Polished Surfaces Available
Optional surface finishing:
• As-rolled
• Polished (Ra < 0.2 μm)
• Mirror finish
A smooth surface improves reproducibility in voltammetry and interface studies.

Technical Specifications
Parameter Specification
Material High-purity silver (Ag ≥ 99.9% or 99.99%)
Available Thickness 0.2–3 mm (standard), customizable
Dimensions Multiple standard sizes; custom cutting available
Surface Finish As-cut, polished, or mirror finish
Electrical Conductivity ~6.3 × 10⁷ S/m
Chemical Behavior Reactive with halides; stable in many neutral electrolytes
Applications Electrochemistry, reference electrode prep, sensors, deposition studies

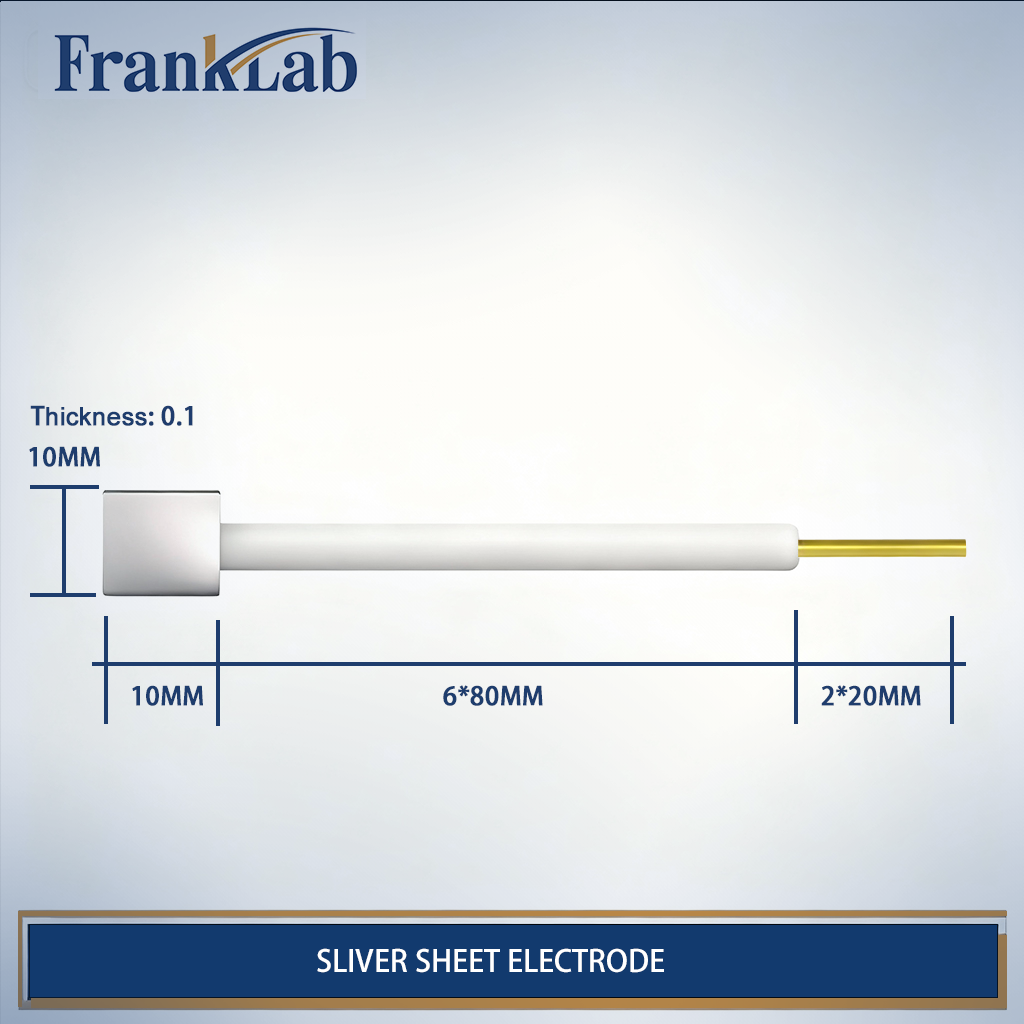

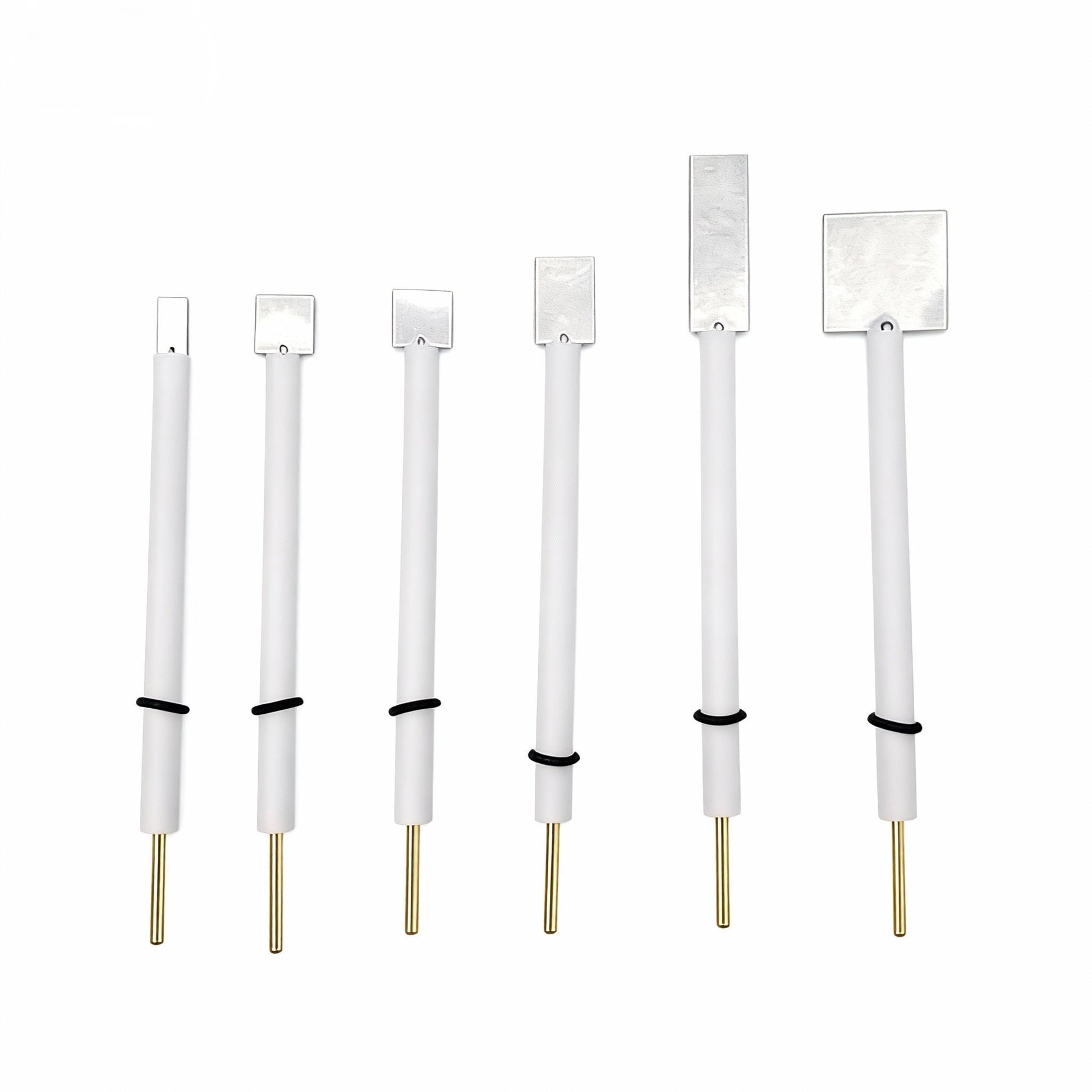

Standard Sizes (Silver Sheet Electrode)
(Length × Width × Thickness — customizable upon request)
FrankLab typically provides the following commonly used research sizes:
Small Format
• 10 × 10 × 0.5 mm
• 10 × 20 × 0.5 mm
• 10 × 10 × 1 mm
• 10 × 20 × 1 mm
Medium Format
• 20 × 20 × 1 mm
• 20 × 30 × 1 mm
• 25 × 25 × 1 mm
Larger Plates
• 30 × 30 × 1 mm
• 40 × 40 × 1–2 mm
• 50 × 50 × 1–2 mm
Custom dimensions up to large continuous sheets are available.

Recommended Applications
Electrochemistry
• Electrode fabrication
• Silver stripping & deposition studies
• Ag/AgCl reference electrode production
• Ion-selective electrode bases
Sensors
• Chloride, bromide, iodide sensing
• Photoelectrochemical sensors
• Biomedical and environmental detection
Materials Research
• Thin-film growth
• Surface modification
• Catalysis studies
Analytical Chemistry
• Conductivity testing
• Redox mechanism analysis

Customization Available
FrankLab offers complete OEM customization:
• Custom dimensions (1–200 mm)
• Thickness 0.05–5 mm
• Holes, mounting slots, or shaped cuts
• Polishing to mirror finish
• Surface activation / pretreatment
• Multi-layer Ag substrates
Provide your required drawing or specifications; we will deliver a quotation + production plan within 24 hours.
