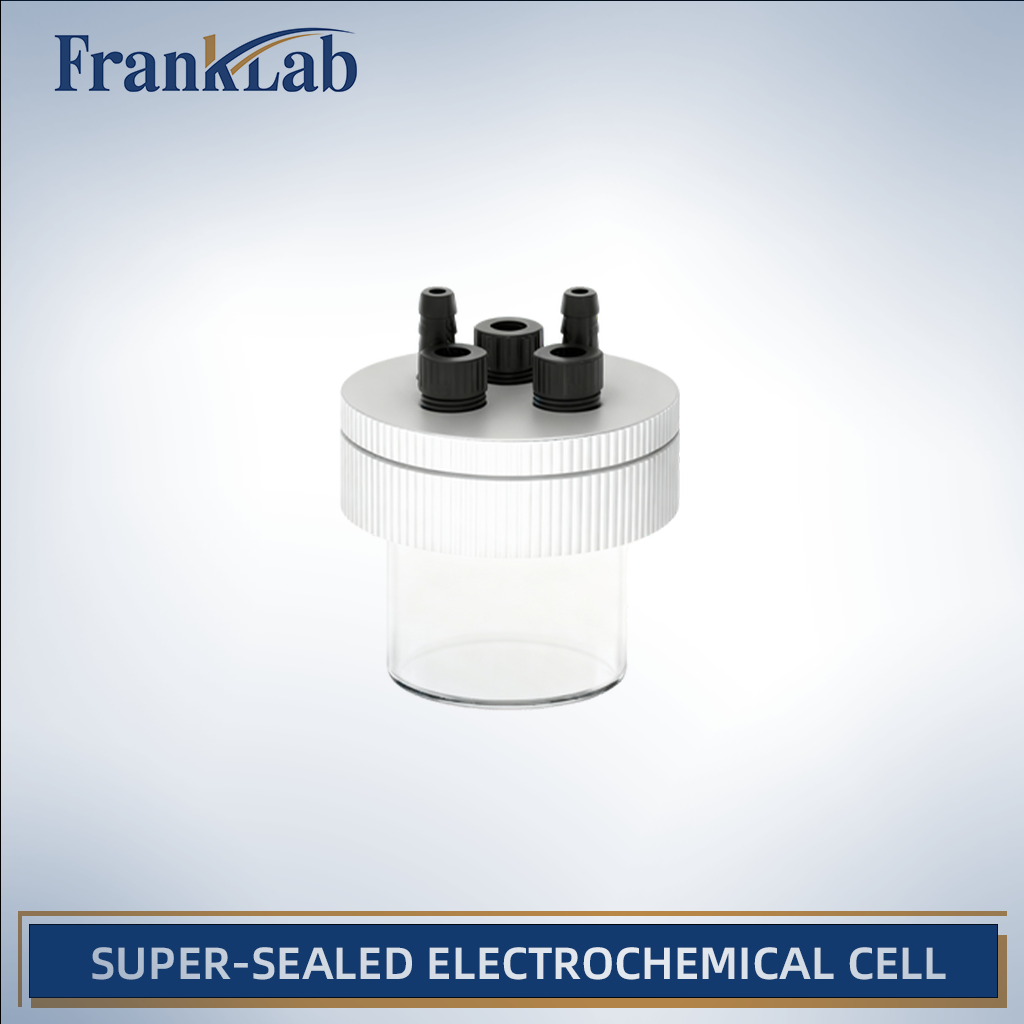

Super-Sealed Electrochemical Cell

Super-Sealed Electrochemical Cell

Product Description
Shipping & Delivery
Product Overview
The FrankLab Super-Sealed Electrochemical Cell is designed for researchers who require a completely gas-tight, evaporation-resistant, and contamination-free environment for electrochemical experiments. With a precision-machined PTFE sealing lid and high-purity borosilicate or quartz glass chamber, this cell ensures stable performance under inert atmosphere, corrosive electrolytes, and long-duration electrolysis.
Ideal for HER/OER, CO₂RR, ORR, electro-analysis, corrosion studies, electrosynthesis, and any experiment sensitive to oxygen, moisture, or volatile solvents.

Available Volumes
Material 10 mL 25 mL 35 mL 50 mL 100 mL
Borosilicate Glass ✔ ✔ ✔ ✔ ✔
Quartz Glass ✔ ✔ ✔ ✔ ✔
Quartz recommended for UV/Vis/photochemistry or strong acids.

Key Features
  1. Fully Sealed PTFE Lid
· High-precision threaded seal prevents leakage and solvent evaporation
· 100% chemical inertness; suitable for strong acids, bases, and organic solvents
· Long-term stability for multi-hour electrolysis

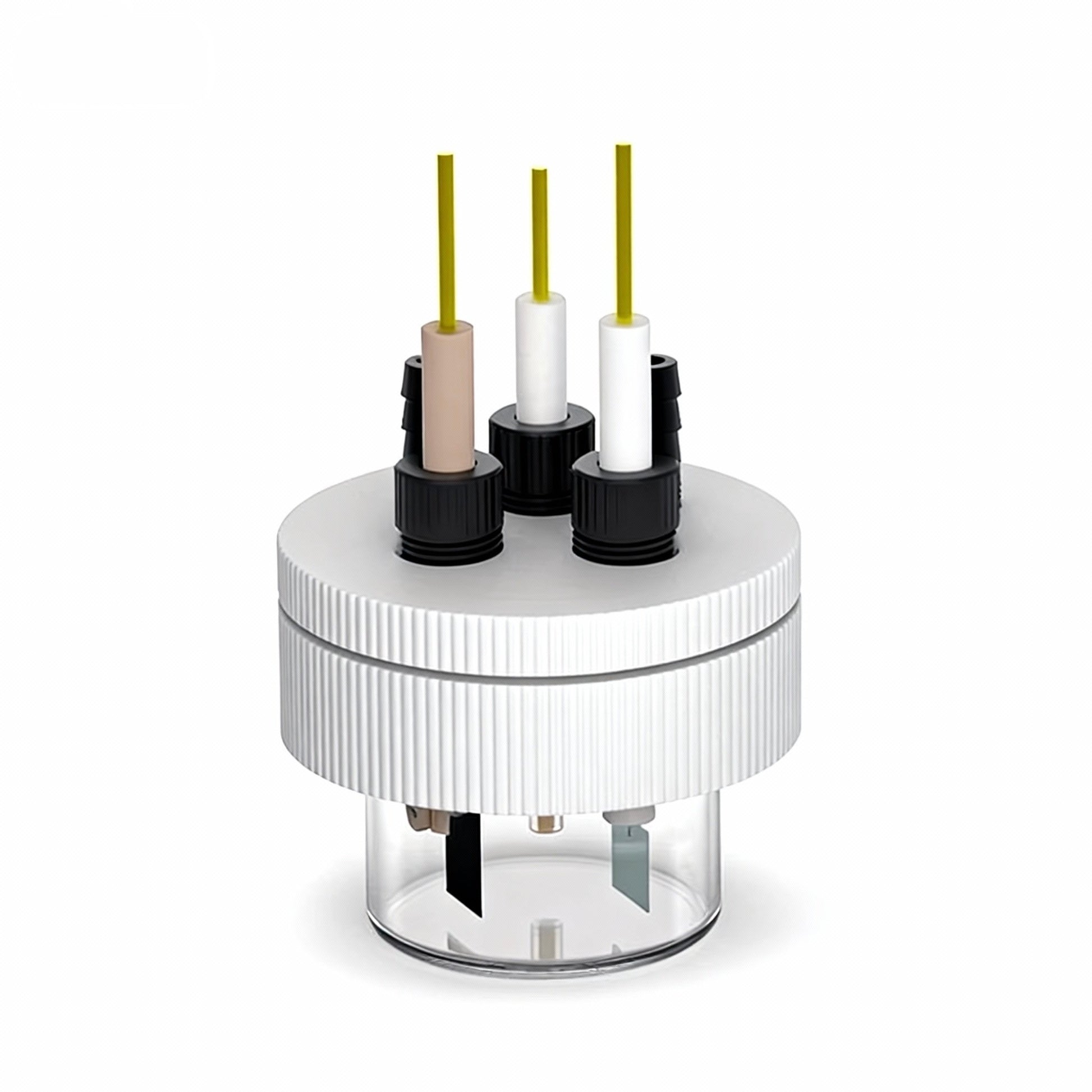

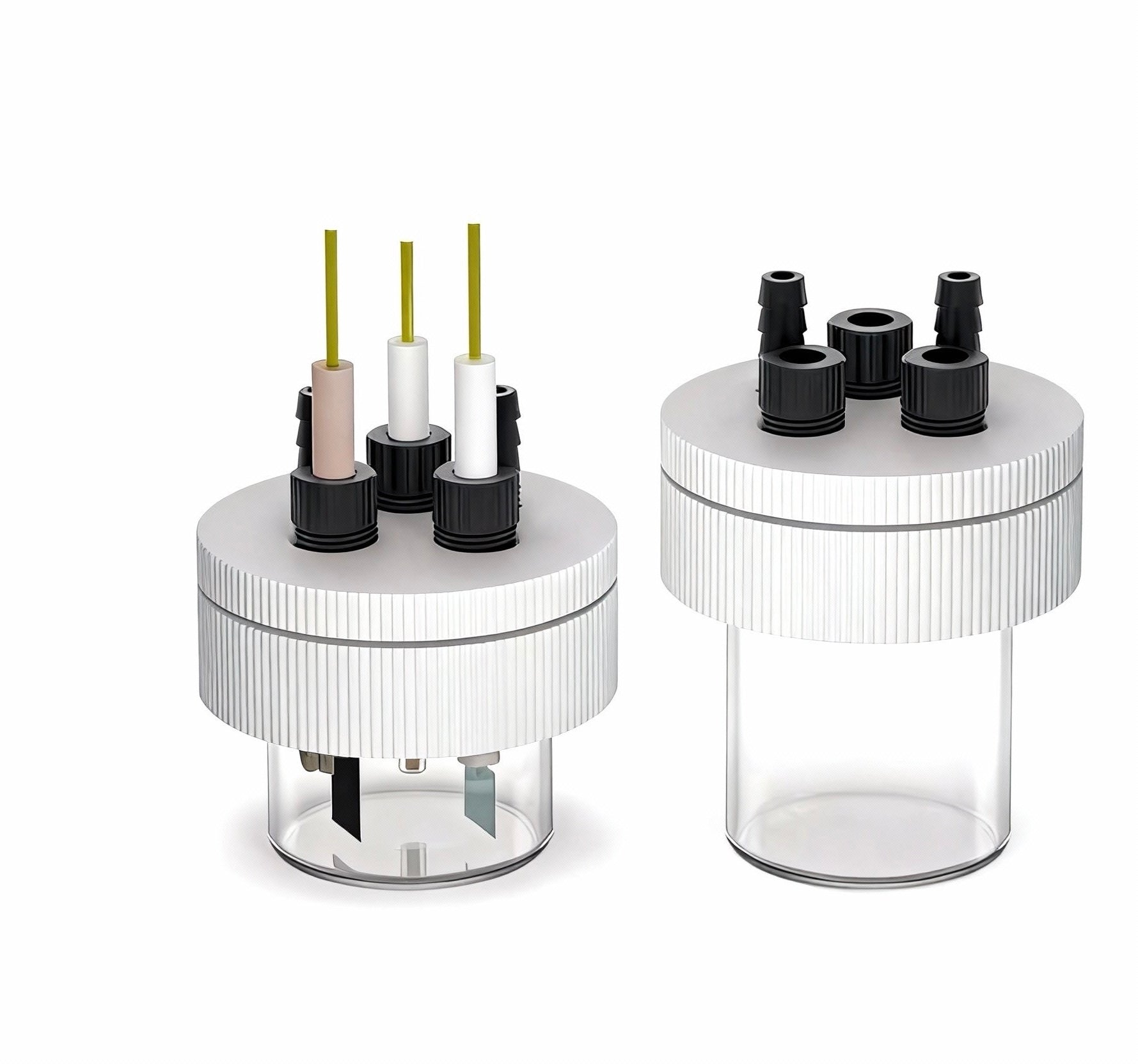

  1. Multi-port Modular Lid Design
Each lid includes customizable electrode ports, typically:
· 1 × Working electrode port (6–10 mm)
· 1 × Reference electrode port (3–6 mm)
· 1 × Counter electrode port (6–10 mm)
· Optional: Gas inlet, gas outlet, temperature probe, pressure relief
Compatible with:
· RDE / RRDE electrodes
· Glassy carbon rods
· Metal wire electrodes
· Ag/AgCl, Hg/HgO, Saturated Calomel, pH probes
  1. High-Clarity Glass Chamber
· Borosilicate glass (3.3): Thermal shock resistance, everyday electrochemistry
· Quartz: Excellent optical clarity for photochemical or spectroelectrochemical studies
· Round bottom design allows uniform mixing
  1. Strong Mechanical Fixation
· Threaded PTFE collar provides stable clamping
· Prevents electrode wobble during stirring or bubbling
· Ensures reproducible electrode positioning
  1. Customization Service
FrankLab supports OEM specifications:
· Custom chamber volume (5–500 mL)
· Custom PTFE lid port size & configuration
· Bottom-exit port / jacketed design
· Electrode holder integration
· Gas diffusion module compatibility

Technical Specifications
Cell Body
Parameter Value
Material Borosilicate Glass / Quartz
Volume Options 10, 25, 35, 50, 100 mL
Temperature Range –20°C to 200°C (glass body)
Chemical Resistance Acids, bases, organic solvents
PTFE Lid
Parameter Value
Material PTFE
Temperature Range –40°C to 120°C
Port Configuration 3–6 ports (customizable)
Seal Type Threaded compression seal
Electrode Ports
Port Size
Working electrode 6–10 mm
Reference electrode 3–6 mm
Counter electrode 6–10 mm
Gas inlet/outlet 3–6 mm hose barb
Applications
· Hydrogen evolution (HER) / Oxygen evolution (OER)
· CO₂ reduction reaction (CO₂RR) under sealed conditions
· Electrosynthesis & electro-organic chemistry
· Corrosion studies & metal dissolution
· Long-term chronoamperometry / chronopotentiometry
· Air-sensitive or moisture-sensitive experiments
· Volatile organic solvent electrochemistry

Advantages of FrankLab Super-Sealed Cells
✔ Industry-leading sealing performance
No leakage even with vigorous bubbling.
✔ Suitable for both aqueous & non-aqueous electrolytes
100% PTFE interface ensures solvent compatibility.
✔ Modular, flexible & durable
Electrode configurations can be swapped within seconds.
✔ Laboratory-grade craftsmanship
Machined to high tolerances for reproducible research.

Optional Accessories
· Glassy carbon electrode rods (Ø3–6 mm)
· Ag/AgCl / Hg/HgO / SCE reference electrodes
· Pt wire counter electrodes
· Gas diffusion modules
· Magnetic stir bar + bottom stirrer platform
· Temperature probe adapters



For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop


Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists, for electrochemists. Our focus is on:

•Clean geometry

•Chemical reliability

•Experimental reproducibility

•Compatibility with real research workflows

Used by universities, national labs, and industrial R&D teams worldwide.
