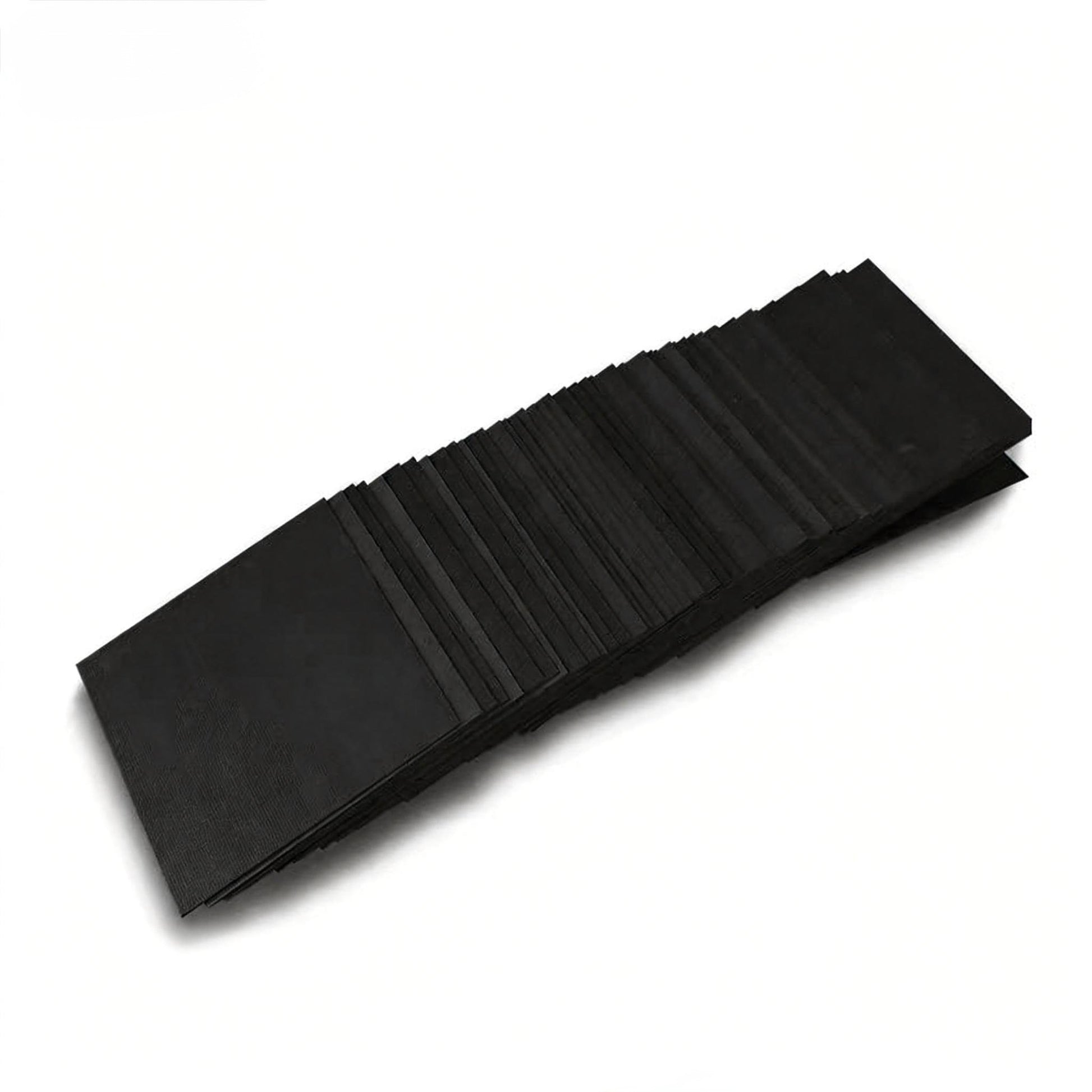

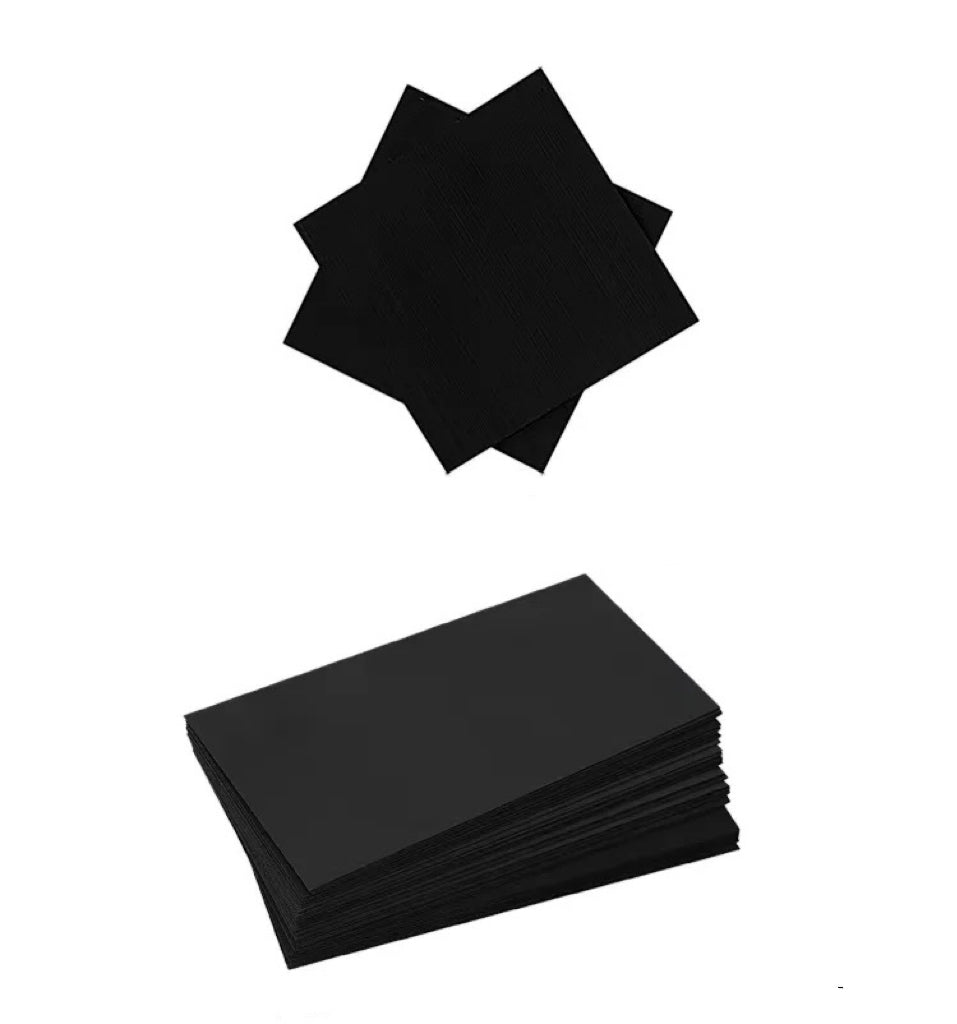

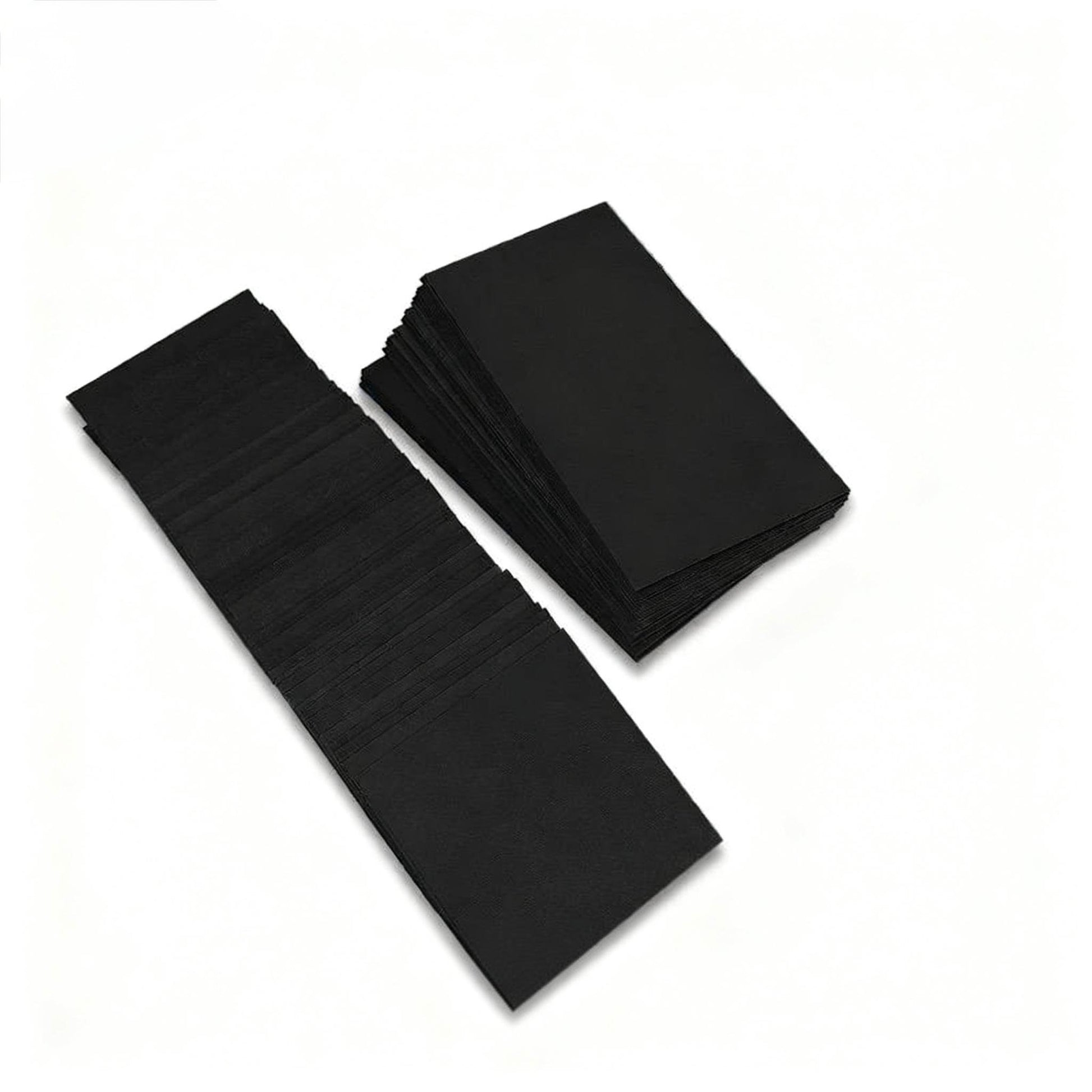

Toray Carbon Paper

Toray Carbon Paper

Product Description
Shipping & Delivery

Product Overview

Toray TGP-H Carbon Paper is a high-performance carbon–carbon composite material widely used as a Gas Diffusion Layer (GDL) in fuel cells and electrochemical energy systems.
Manufactured from PAN-based TORAYCA® carbon fibers, the fibers are firmly bonded through carbonization, providing excellent mechanical strength, stable conductivity, and uniform gas permeability.
The TGP-H series has been extensively applied in PEM fuel cells (PEMFC), PAFC, electrolyzers, and electrochemical gas diffusion systems for decades, demonstrating outstanding durability and reliability in long-term operation.

Key Features

• High mechanical strength and excellent handling properties
• Uniform pore structure for stable gas diffusion
• Low electrical resistivity
• Good chemical and electrochemical corrosion resistance
• Proven long-term durability in fuel cell systems
• Suitable for PTFE treatment and MPL coating
• Widely used as base carbon paper for customized GDL fabrication

Material Structure

• Base material: PAN-based carbon fiber (TORAYCA®)
• Structure: Carbon–carbon composite paper
• Fiber bonding: Carbonized inter-fiber connection
• Surface: Untreated (PTFE coating optional)
SEM microstructure shows a uniform carbon fiber network with interconnected pores, ensuring efficient gas transport and electron conduction.

Available Models (TGP-H Series)

Model Thickness
TGP-H-030 0.11 mm
TGP-H-060 0.19 mm
TGP-H-090 0.28 mm
TGP-H-120 0.37 mm
Thicker materials available upon request.

Typical Physical Properties

Property Unit TGP-H-030 TGP-H-060 TGP-H-090 TGP-H-120
Thickness mm 0.11 0.19 0.28 0.37
Bulk density g/cm³ 0.4 0.44 0.44 0.45
Porosity % 80 78 78 78
Surface roughness (Ra) μm 8 8 8 8
Gas permeability ml·mm/(cm²·hr·mmAq) 2500 1900 1700 1500
Electrical resistivity (through-plane) mΩ·cm 80 80 80 80
Electrical resistivity (in-plane) mΩ·cm — 5.8 5.6 4.7
Flexural strength MPa 40 40 40 40
Tensile strength N/cm — 50 70 90
All values are typical laboratory data and not guaranteed specifications.

Typical Applications

• Proton Exchange Membrane Fuel Cells (PEMFC)
• Phosphoric Acid Fuel Cells (PAFC)
• Water Electrolysis Systems
• Hydrogen Energy Systems
• Gas Diffusion Electrodes (GDE)
• Electrochemical gas–liquid reaction interfaces
• Laboratory-scale MEA fabrication

Processing Compatibility

Toray TGP-H carbon paper is suitable for:
• PTFE wet-proofing treatment (5–80% optional)
• Microporous layer (MPL) coating
• Catalyst layer deposition
• Laser cutting or precision mechanical cutting
Widely used as base substrate for customized GDL development.

Handling Notes

• Wear gloves during handling to avoid oil or sweat contamination
• Use sharp blades or laser cutting to prevent fiber fraying
• Avoid prolonged exposure to strong acids, strong alkalis, or open flame
• Ensure intimate contact with catalyst layers during MEA assembly to minimize contact resistance

Storage & Transportation

• Store in a clean, dry, dust-free environment
• Recommended temperature: 5–30 °C
• Relative humidity: < 60%
• Avoid folding, compression, or bending
• Reseal unused materials in original packaging

Available Sizes

Standard cutting sizes available:
• 5 × 5 cm
• 10 × 10 cm
• 20 × 20 cm
• 40 × 40 cm
Custom sizes and bulk sheets are available upon request.

For Custom Orders or Technical Support

If you have custom size requirements, PTFE wet-proofing needs, or technical questions, please feel free to contact us:
📧 support@franklab.shop

Why FrankLab

FrankLab provides professionally selected electrochemical materials for research laboratories and energy R&D teams.
We focus on:
• Reliable material sourcing
• Clear technical specifications
• Research-grade consistency
• Compatibility with real electrochemical workflows
Trusted by universities, research institutes, and industrial R&D laboratories worldwide.
