U- Type Glassy Carbon Electrode

U-Type Glassy Carbon Electrode | FrankLab

For Standard Three-Electrode Electrochemical Cells · High-Purity GC Rod · Corrosion-Resistant PTFE/PEEK Body

Product Overview

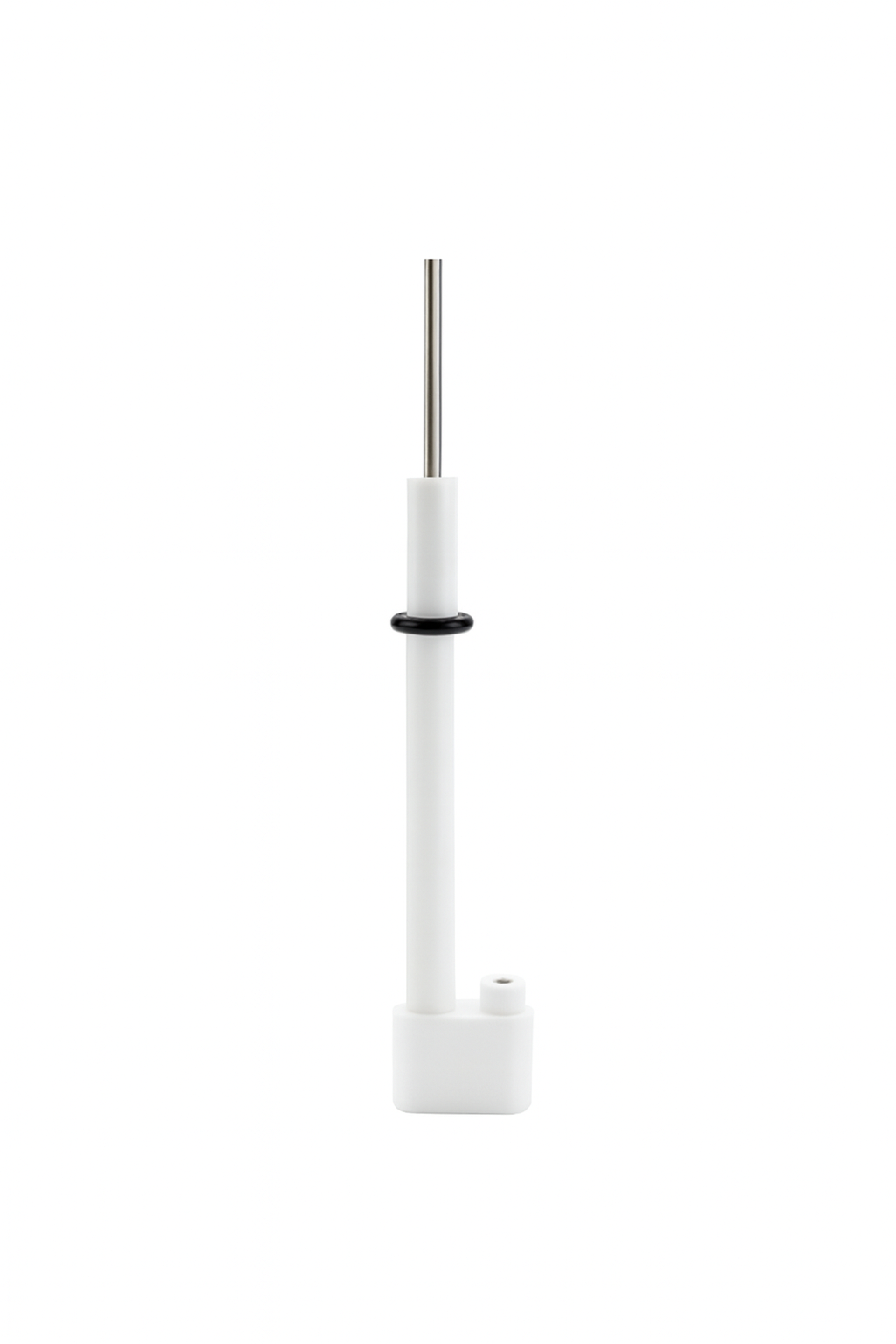

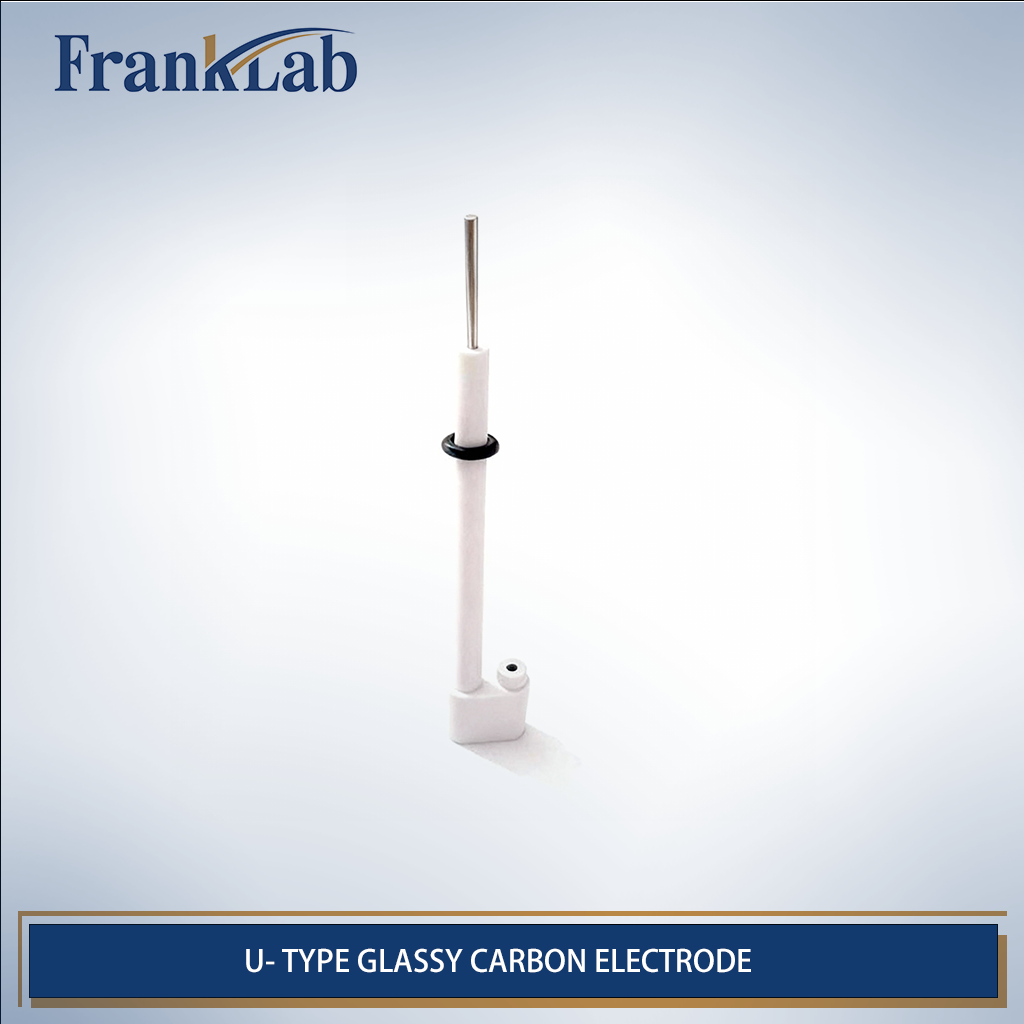

The FrankLab U-Type Glassy Carbon Electrode (3 mm) is a precision working electrode designed for routine and advanced electrochemical experiments, including CV, LSV, EIS, chronoamperometry, and electrocatalyst evaluation.

Using a high-purity 3 mm glassy carbon rod embedded in a chemically inert U-type PTFE/PEEK housing, this electrode offers excellent electrical conductivity, wide potential window, and outstanding resistance to acids, bases, and organic solvents.

Its compact U-shaped design ensures easy installation, stable vertical immersion, and compatibility with most laboratory electrochemical cells and electrode holders.

Key Features

✔ High-Purity Glassy Carbon

•low background current

•Broad potential window in aqueous and non-aqueous electrolytes

•Ideal for electrocatalysis, redox studies, and sensor development

✔ U-Type Body for Stable Positioning

•Allows the electrode to be fixed vertically in standard cell openings

•Prevents electrode rotation or drift during stirring/degassing

•Suitable for small-volume cells and microelectrochemistry setups

✔ Corrosion-Resistant PTFE/PEEK Housing

•Excellent chemical stability

•Easy to clean and maintain

•Long service life even in aggressive media

✔ Easy Electrode Surface Renewal

•GC rod can be polished with alumina slurry

•Regenerates a fresh active surface in minutes

Applications

•Electrocatalyst activity benchmarking (HER/OER/ORR/CO₂RR)

•Organic electrochemistry & electron-transfer studies

•Battery material evaluation

•Sensor fabrication and probe studies

•Educational and research laboratories

Advantages of FrankLab U-Type Electrode

1. Clean, Stable, Reproducible Signals

Perfect for long-term research and high-reliability measurements.

2. Compact, Universal Design

Fits most electrochemical cells, including H-type, three-electrode beakers, and PTFE cells.

3. Easy Maintenance

GC surface can be polished repeatedly without losing performance.

4. Customizable

We offer custom GC diameters (1–6 mm), exposed lengths, body materials (PTFE/PEEK), and terminal connectors.

 Customization Options

FrankLab supports OEM/ODM manufacturing:

•GC diameter: 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm

•GC exposed length: 5–20 mm

•Housing materials: PTFE / PEEK

•Lead/connector options: banana plug, alligator, pin connector, wire lead

•U-Type or straight-body structure

Custom drawings + quotations available within 24 hours.
