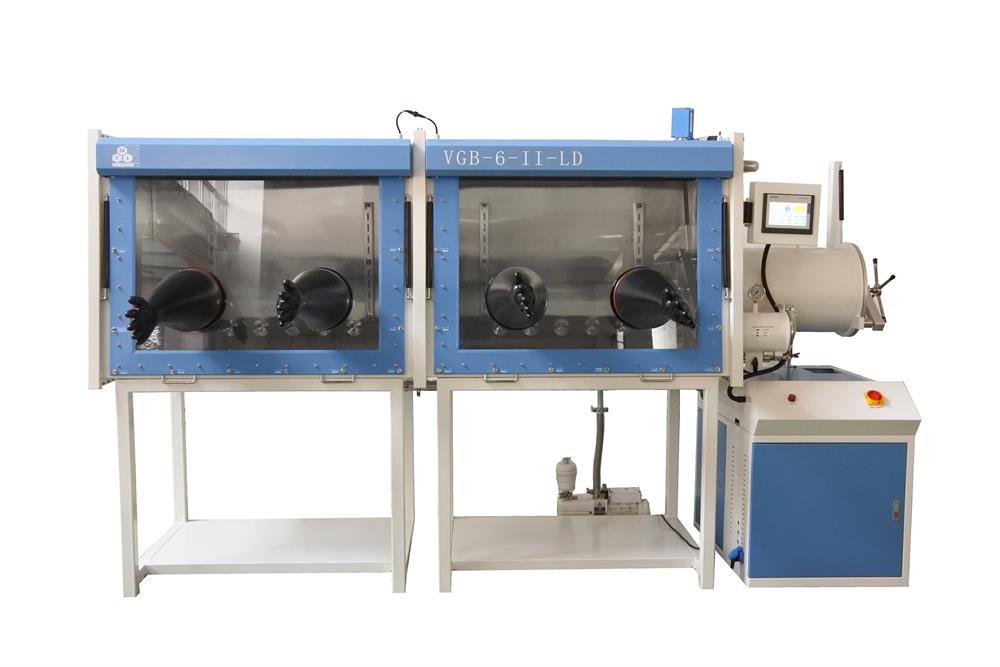

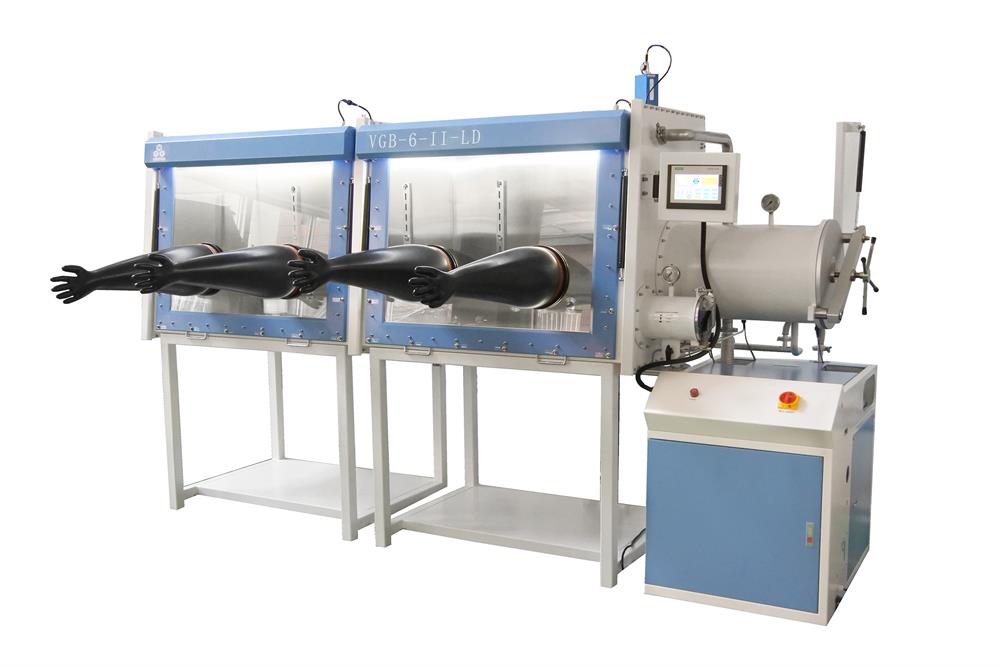

Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD

• 120 VAC, 20 A or 208-240VAC, 16 A
• 50/60Hz, Single Phase
• 1.7 KVA

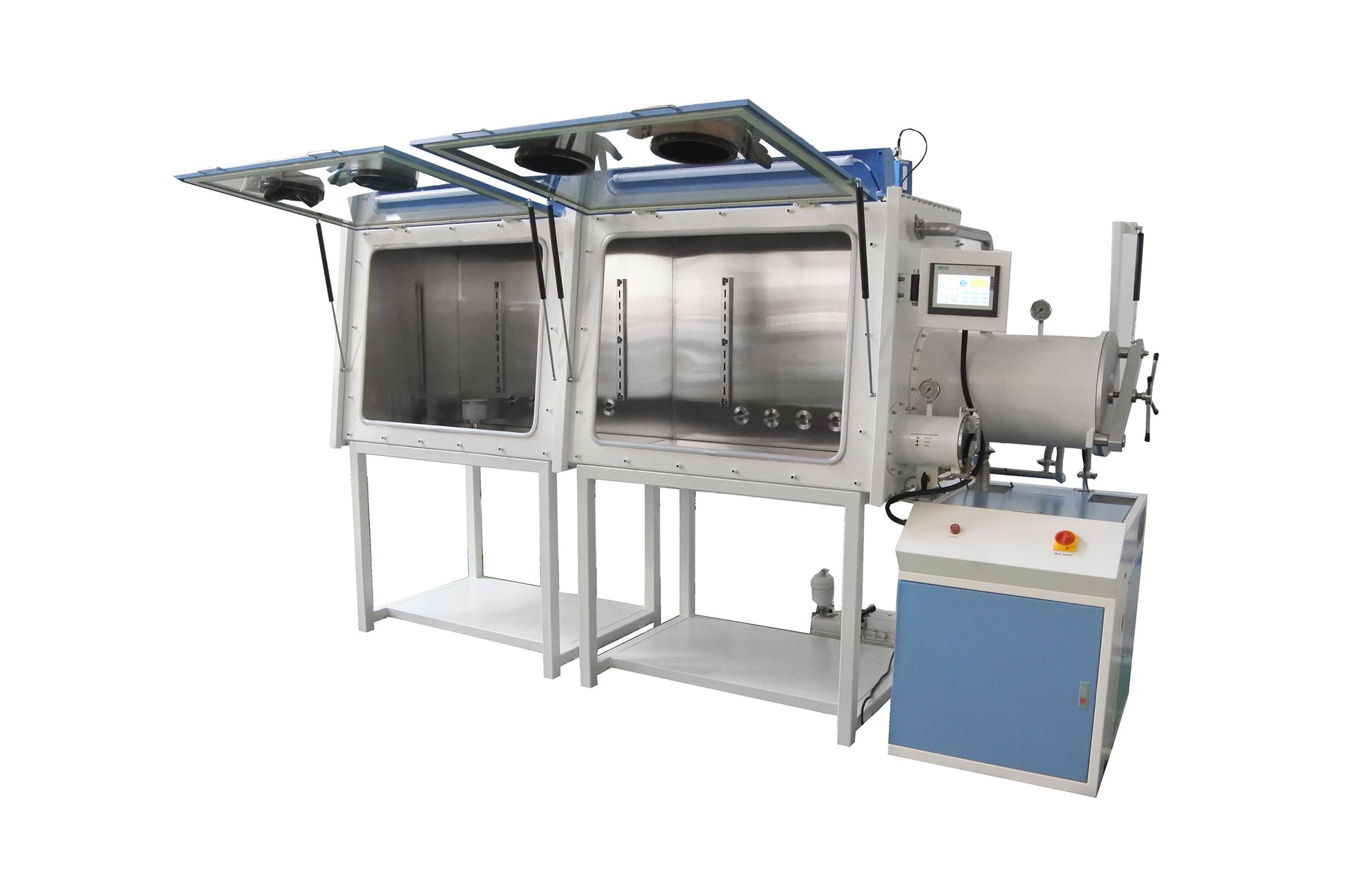

• Hinged front window panels (tempered glass, 8 mm thick)
• Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)
• Case Material: Stainless Steel 304
• Built-in LED lamps
• Two shelves, 300mm L x 250mm W x 300mm H
• Two pieces of HEPA filters for particle size >0.3 μm

• Large Antechamber Dimensions: 360mm(Dia.) x 600mm(L)
• Small Antechamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)
• Max. vacuum level: 0.75 torr

• Water concentration: <1 ppm (20°C, 1 atm)
• Oxygen concentration: <1 ppm (20°C, 1 atm)

• Inert gas: N2, Ar, He
• Regenerating gas: non-flammable hydrogen blended gas (5%H2+95%N2 or <3% H2 balanced w/ Ar)

• Automatically purging function for reducing O2 & H2O < 100ppm before cycling.
• Pressure control system is built in to keep the pressure at a constant level.
• Purification Cylinder: BASF antioxidant materials and UOP water adsorbent materials.
• Moisture removal capacity: 2 kg
• Oxygen removal capacity: 60L
• Stainless steel pipe connection
• Blower: Flow Rate: up to 90m³/h
• Auto regeneration process with user defined parameters.
• Built-in Regeneration Temperature Controller.

• (Optional) activated carbon (5.2kg) organic solvent filter

• Siemens PLC control system with 6' touchscreen display
• Water concentration: 0 - 1000 ppm
• Oxygen concentration: 0 - 1000 ppm
• Auto pressure control -5 - +8 mbar

• One universal power extension is included.
• power extension board with 5 outlets, 15A max.
• 110VAC or 220VAC depending on the input source

• 5 KF40 ports for each chamber, 10 in total.

• 240L/m Heavy Duty Double Stage Rotary Vane Pump for gas exhaust
• Vacuum rate: 7.8 cfm
• Lowest pressure: 0.4pa

• Two pairs of Butyl glove
• Protection against toxic materials
• 8' Dia. 32' Long

• The inside door of the antechamber can be opened automatically
• Heating Antechamber: 200°C with a dimension of Ø360×600mm (L)
•

•

Pneumatic Swing Door

(Optional)

• Pneumatic swing doors and motorized sample tray ready for automated sample handling.

Refrigerator Attachment

(optional)

• Freezer or refrigerator attachment, -20°C
•

Dual Antechambers

Dual Circulation System

(Optional)

• Two large antechambers on both sides
• Central swing door for chamber isolation
• Two sets of sensor
• Two sets of circulation system
•

• Gloves are consumable items and are not covered under warranty
• NRTL or CSA certification is available upon request at the extra cost

• The use of corrosive gasses is prohibited. Damage may occur for the water and oxygen sensors.
• Corrosive liquid, such as LiPF6, must be remain sealed in a container inside the glove box.
• Franklab is welcome to customized designs for an integration of the glove box and other equipment
