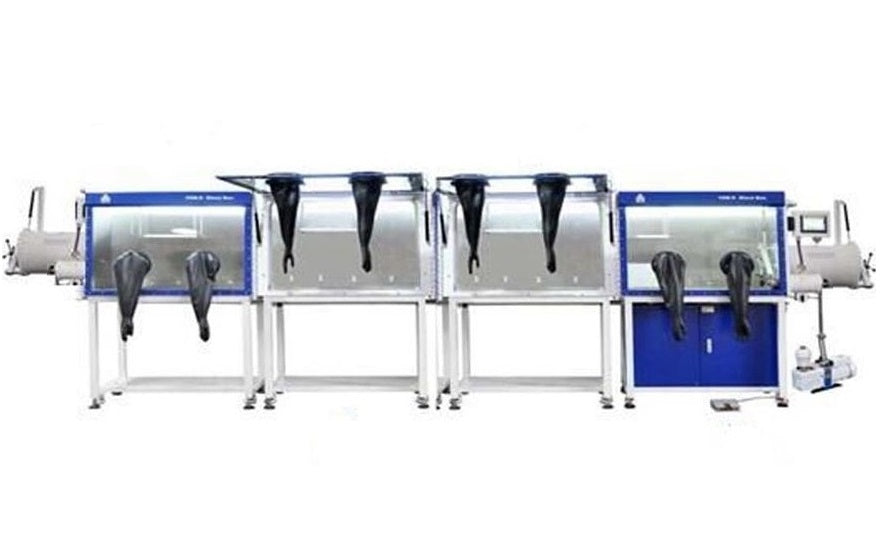

Four Chambers Glove Box with Gas Purification System ( H2O&O2 < 1ppm) - VGB-6-IV-LD

• AC 220V 50/60 Hz Single Phase

• 5 KW

• Material: Stainless Steel 304
• Dimensions: 4800 mm (L) x 800 mm (W) x 930 mm (H)
• 12 mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner
• Ample space for the cell fabrication line

• Water concentration: < 1 ppm (20°C, 1 atm)
• Oxygen concentration: < 1 ppm (20°C, 1 atm)

• <0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)

• Two Antechambers and two small chambers on both sides of the glove box
• Antechamber Dimension: 385 mm (Dia.) x 588 mm (L)
• Small Chamber Dimension: 150 mm (Dia.) x 300 mm (L)
• Maximum vacuum level: 100 Pa

• Operating gas: Inert gas such as N2, Ar, He
• Regeneration gas: Mixture of H2(5%) and Operating gas
• For purification system with only water adsorbing function, Regenerating gas would be the same as Operating gas

• Two Purification Cylinders included due to the large glove box
• Organic Solvent Filter System filled with replaceable activated carbon
• Built in HEPA filter can eliminate particle size > 0.3μm

• Siemens PLC control system with 6' touchscreen display
• Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
• Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
• Pressure: -2500 to 2500 Pa with an accuracy of 1Pa
• Purification limitation
• Water concentration:  <1 ppm (20°C, 1 atm)
• Oxygen concentration: <1 ppm (20°C, 1 atm)

• 240 L/m Heavy Duty Double Stage Rotary Vane Pump for the gas exhaust
• Vacuum rate: 7.8 CFM
• Lowest pressure: 04 Pa

• Flow Rate: 90m³/h

• 304 Stainless Steel, KF40 Port

• A pair of NORTH Butyl glove is included to provide better protection against toxic materials for one chamber
• Four pairs in total

• Built-in fluorescent lamp

• Four slidable shelves are built on top of inside glove chamber with dimensions of 300mm x 250mm
• 300 mm away from the roof

• Universal terminal panel is a convenient part with varies feedthrough built-in for VGB series glove boxes to transfer gas/vacuum pipelines, circuit cables, etc.
• Dimensions: 420x280mm
• Adapter: 10 Φ6 ports, 4 Φ8 ports, 4 Φ12 ports
• Heatable Antechamber: 200C max., DN385×588mm (L), extra cost $7699



• 6500mm(L) x 830mm(W) x 1830mm(H) (256' x 33' x 72')

• TBD

    Request for more information

• One-year limited warranty with lifetime support
• Rusting and damage due to the improper storage condition or maintenance would not be covered by warranty
• Gloves are consumable parts and are not covered by warranty

• The interconnections between the glove box chamber and the gas purification system must be unimpeded during the purification cycles.
• The use of corrosive gasses is prohibited as they will damage the water and oxygen sensors.
• Regularly perform regeneration to maintain the optimum purification efficiency.
• The O2 removing rate is largely dependent on the type of purging gas used. For faster chamber purging process, Nitrogen is preferred over Argon due to its lighter mass.
• Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid vapor may condense and corrode the steel chamber and purification pipeline
