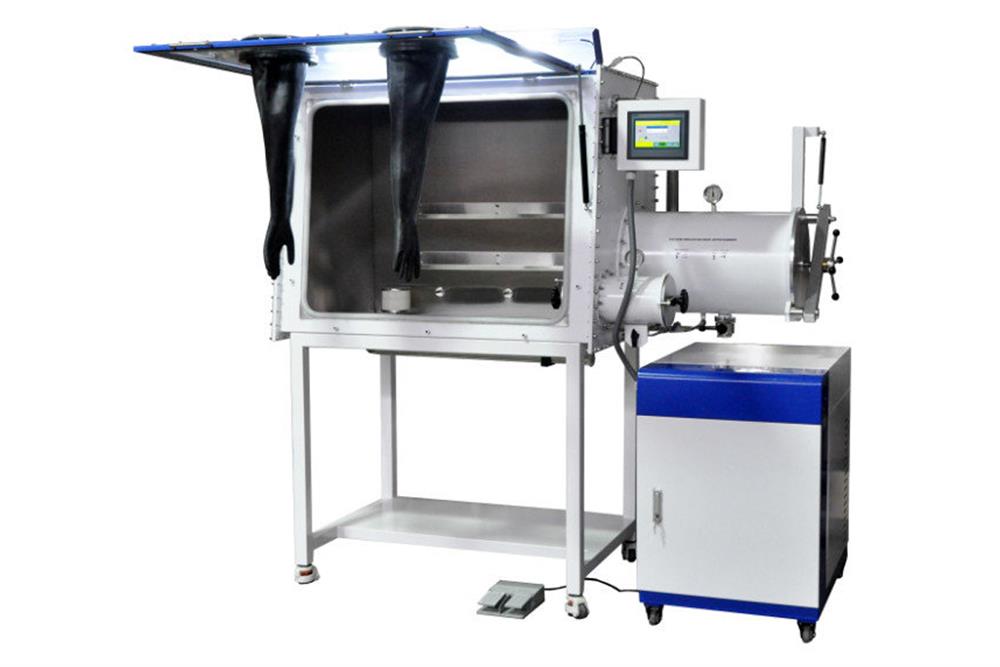

Glove Box with H2O & O2 Purification System and Hinged Front Window - VGB-6-LD

• 110 or 220 VAC switchable, 50/60 Hz, single-phase
• Max power: 1.5 kW

• Case Material: Stainless steel 304 with 3 mm thickness
• Chamber dimensions: 1200 mm L x 740 mm W x 900 mm H

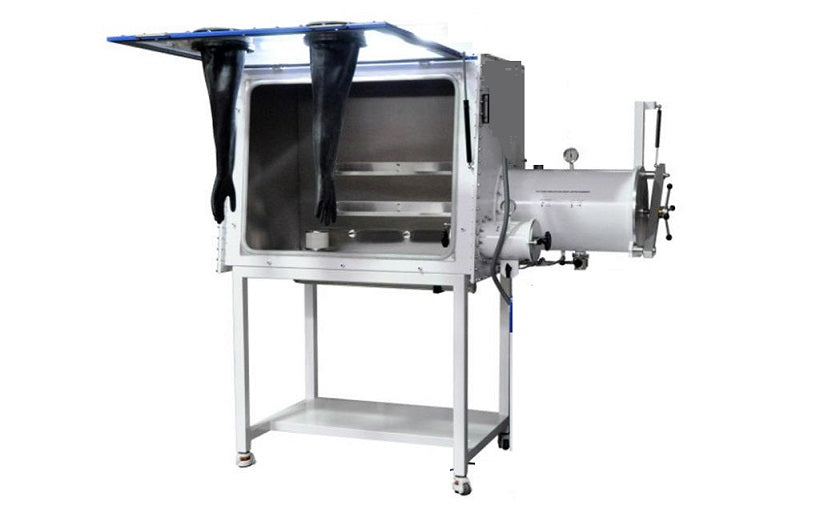

• Openable front window panel (tempered glass, 8 mm thick)
• Hinged-type door for easy load of devices inside the glovebox

• The regeneration Temperature Controller is built-in for automatically regenerating the filters
• Automatically purging function is built-in for quickly reducing O2 < 200 ppm & H2O < 50 ppm before recycling.
• The automatic pressure control system is built in to keep the pressure at a constant level.
• Water concentration: <1 ppm (20 °C, 1 atm)
• Oxygen concentration: <1 ppm (20 °C, 1 atm)

• <0.05 vol% / hr (depending on oxygen concentration inside the glove box)

• Antechamber dimension: 360 mm ID x 600 mm L
• Small chamber dimension (for tools): 150 mm ID. x 220 mm L

• Heatable Antechamber: 200C max., ID 360×600mm (L)
•



• Loading and unloading devices from the front door is much easier than ever! A vacuum-sealed jar is available for air-sensitive sample transporting ( clicking Pic. 1 to order )
• KF100 port with a blinding plate is optional to connect a tube furnace up to an MTI tube furnace (Pic. 2-3)
•  Pic. 1      Pic.2


    Pic. 3      Pic. 4

• Operating gas: Inert gas such as N2, Ar, He
• Regenerating gas: For regenerating both oxygen and H2O remover, use a mixture of H2 (5-10%) and operating gas

• Automated regeneration process
• Automated Water and oxygen removal by Oxygen Transmitter
• Purification cylinder: made of BASF R3-11 Copper Catalyst and Lindy Molecular Sieve
• Pipeline: 304 stainless steel, KF40, and KF25 ports

• Total five KF40 ports on the back of the glove box

• Inlet and outlet filters can eliminate particle size > 0.3 μm
• Carbon and solvent vapor filters are available upon request at an extra cost for flammable vapor

• Automatic pressure control by PLC for the Glove Box Chamber
• Pressure range: +/- 12 mbar
• Manual pressure control is allowed via a foot pedal

• An automatic purging system allows easy operating and reduces gas consumption

• Siemens PLC control system with 7' touchscreen display
• Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
• Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
• Pressure: -12 to 12 mbar with an accuracy of 0.01 m-bat
• Records for total hours of operation, total regeneration times, and time since the last regeneration

• 240 L/m heavy-duty double-stage rotary vane pump for faster gas exhaust
• Vacuum rate: 240 L/m (8.5 cfm)

• A pair of 9 3/4' butyl gloves is included for immediate use

• Built-in fluorescent lamp

• Product Dimension: 2000 mm L x 1000 mm W x 1880 mm H (79' x 40' x 74')
• See the pictures below for detailed dimensions

• 85' L x 45' W x 91' H

• 1720 lbs

• NRTL certification is available upon request at extra cost

• One-year limited warranty with lifetime support
• Rusting and damage due to improper storage conditions or maintenance are not covered by a warranty
• Gloves are consumable items and are NOT covered by a warranty
• The oxygen sensor is consumable NOT covered by warranty. Please use the videos below for properly 1) Replacing a worn unit and 2) Storing the sensor to ensure maximum longevity when not used



• The interconnections between the glovebox chamber and the gas purification system must be unimpeded during the purification cycles.
• The O2 removal rate is largely dependent on the type of purging gas used. For a faster chamber purging process, Nitrogen is preferred over Argon due to its lighter mass
• Regularly perform regeneration to maintain optimum purification efficiency.
• The O2 sensor is consumable and its expected lifespan is around one year. We supply a replacement O2 sensor, please click the underline and just order the sensor.
• The use of corrosive gases is prohibited as they will damage the water and oxygen sensors!
• Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid vapor may condense and corrode the steel chamber and purification pipeline.
• We can connect various tube furnaces with the glove box for processing air-sensitive materials
• You may order a vacuum transportation jar to deliver the air-sensitive sample in or out glove box

Heatable Antechamber (Optional)

• Heatable Antechamber: 200C max., DN385×588mm (L), available
• Two large ante-chambers with central isolating door is available upon request


Pneumatic Door (Optional)

• The pneumatic door is available upon request. It is normally used for automatic process.
