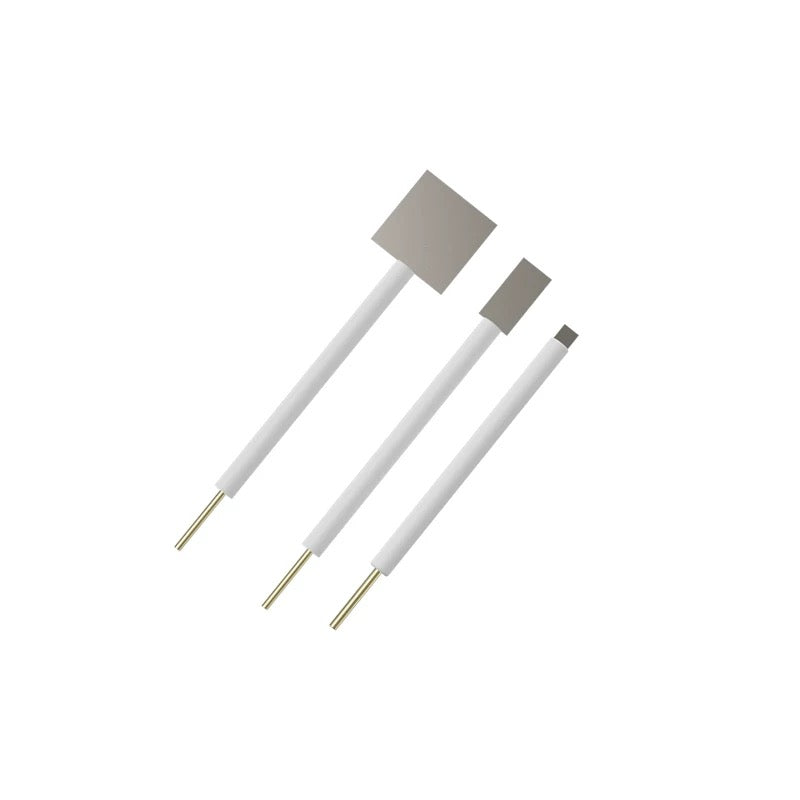

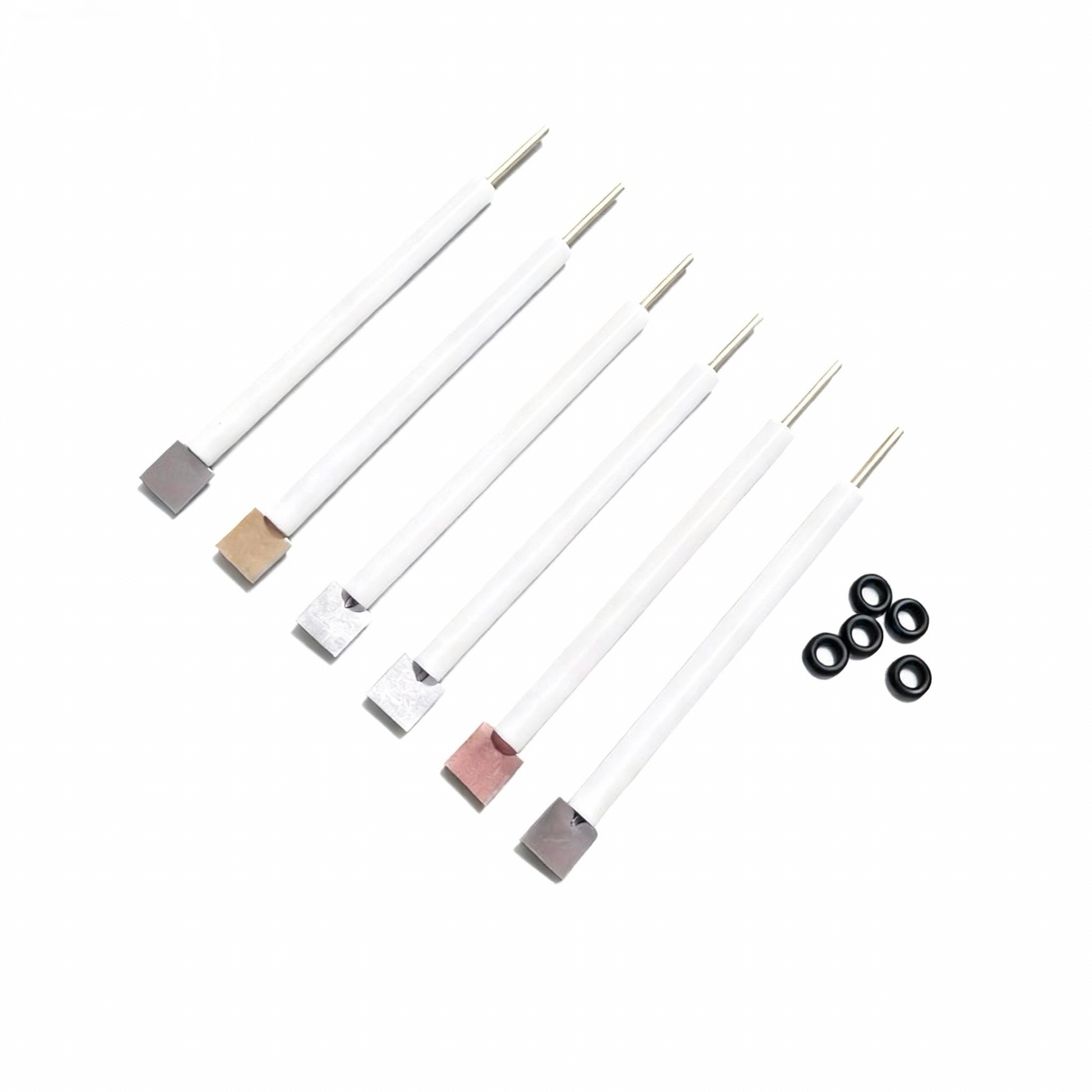

Zinc Sheet Electrode

Zinc Sheet Electrode

Product Description
Shipping & Delivery
Zinc Sheet Electrode | High-Purity Zn Plate | FrankLab
99.9% Purity · Highly Reactive Metal Surface · Ideal for Battery Research, Corrosion Studies & Electrodeposition

Product Overview
The FrankLab Zinc Sheet Electrode is a high-purity zinc plate designed for electrochemical applications where zinc’s unique redox behavior, surface reactivity, and high rate of dissolution/deposition are required.
Zinc sheets are widely used in:
• Zinc-ion battery (ZIB) research
• Zn plating / stripping experiments
• Corrosion testing in acidic and neutral media
• Galvanic cell studies（ Zn–Cu, Zn–Ag）
• Electrocatalysis and material screening
• Electrochemical kinetics & mechanism research
Each sheet is precision-cut to ensure uniform thickness and surface consistency for reproducible scientific results.

Key Features
• High-Purity Zinc (Zn ≥ 99.9%)
• Reliable and consistent Zn/Zn²⁺ electrochemical behavior
• Low impurity levels → minimized parasitic reactions
• Suitable for research-grade electrochemical measurements

• Highly Reactive Metal Surface
Because zinc readily forms oxide/hydroxide layers, zinc sheets are ideal for studying:
• Surface film formation
• Corrosion mechanisms
• Zinc stripping/deposition reversibility

• Excellent for Battery & Deposition Studies
Zinc is widely used in:
• Aqueous Zn-ion batteries
• Alkaline Zn–MnO₂ systems
• Zn plating and metal finishing experiments
• SEI formation research

• Uniform Thickness & Smooth Surface
• Ensures reproducible electrochemical area
• Optional polishing available
• Enables consistent CV/LSV/EIS performance

• Easy to Machine & Shape
Zinc is soft and can be easily:
• Cut
• Drilled
• Polished
• Shaped for custom cell configurations

Technical Specifications
Parameter Specification
Material High-purity zinc (≥99.9%)
Available Thickness 0.2–3 mm (customizable)
Surface Finish As-cut / polished
Density 7.14 g/cm³
Conductivity ~1.7 × 10⁷ S/m
Standard Electrode Potential –0.76 V vs SHE
Chemical Reactivity Reactive in acids & alkaline solutions
Applications Zn plating, corrosion, batteries, galvanic tests

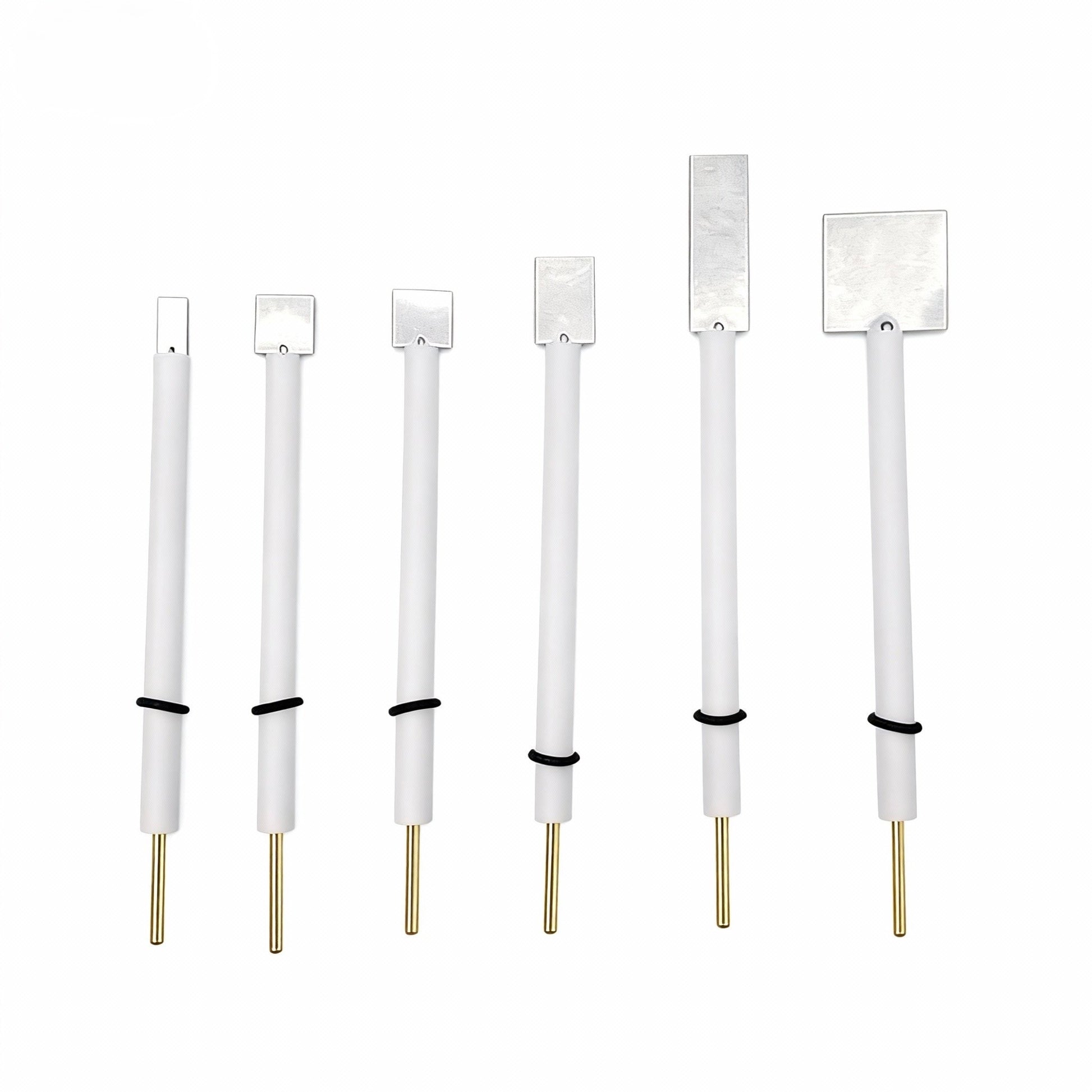

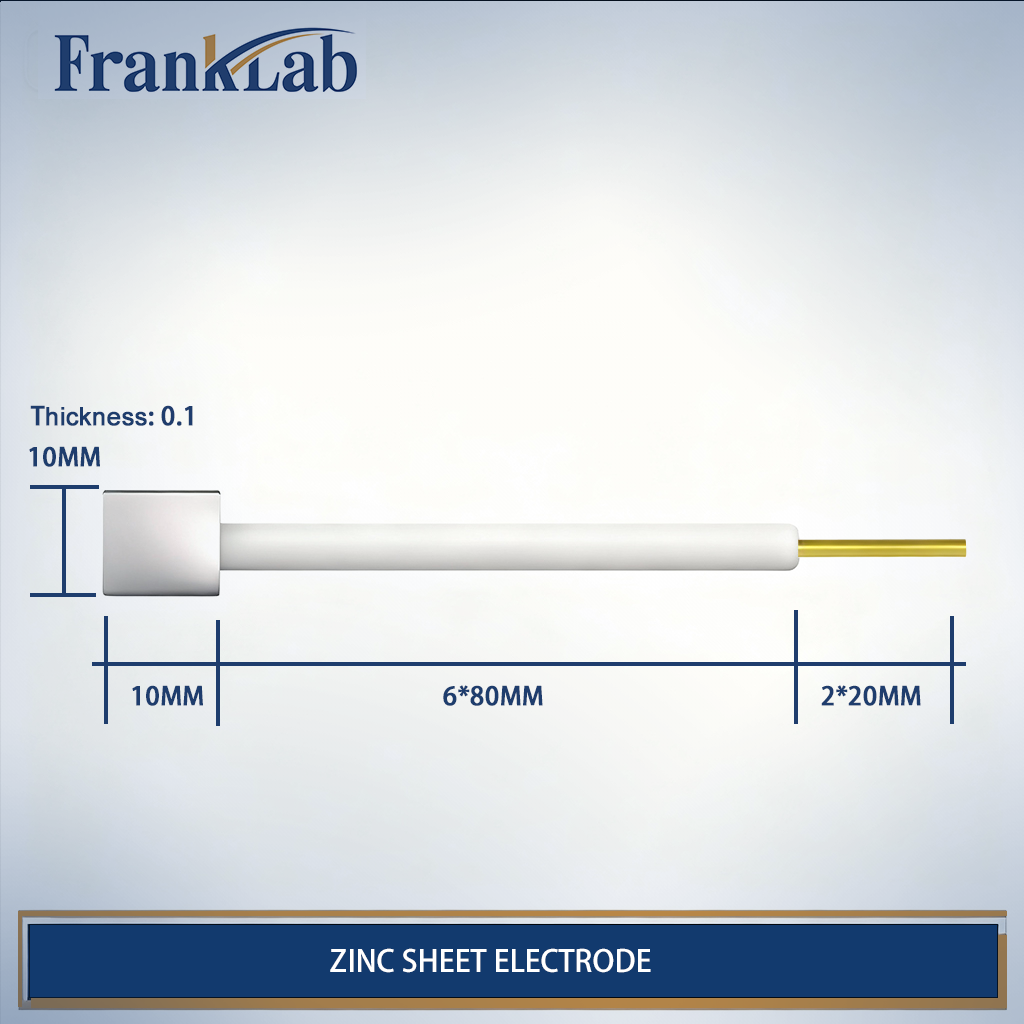

Standard Sizes (Zinc Sheet Electrode)
(Length × Width × Thickness — fully customizable)
Small Format
• 10 × 10 × 0.5 mm
• 10 × 20 × 0.5 mm
• 10 × 10 × 1 mm
• 10 × 20 × 1 mm
Medium Format
• 20 × 20 × 1 mm
• 20 × 30 × 1 mm
• 25 × 25 × 1 mm
Large Format
• 30 × 30 × 1–2 mm
• 40 × 40 × 1–2 mm
• 50 × 50 × 1–2 mm
Custom thickness and larger sheets available.

Recommended Applications
Battery & Energy Research
• Zinc-ion battery anode studies
• Zinc plating/stripping stability
• Hydrogen evolution suppression research
Corrosion Studies
• Acid/alkaline corrosion kinetics
• Passivation layer formation
• Galvanic corrosion mechanisms
Electrochemical Research
• CV, LSV, EIS
• Metal deposition and dissolution
• Surface oxide behavior
Teaching & Fundamental Science
• Classic galvanic cell experiments
• Redox mechanism education

Customization Available
FrankLab supports full OEM machining:
• Custom dimensions (5 mm – 300 mm)
• Thickness 0.05–5 mm
• Pre-polishing, polishing or mirror finish
• Edge rounding or chamfering
• Holes and mounting slots
• Large-format zinc plates for industrial users
Submit your drawings or specifications for a 24-hour quotation.
